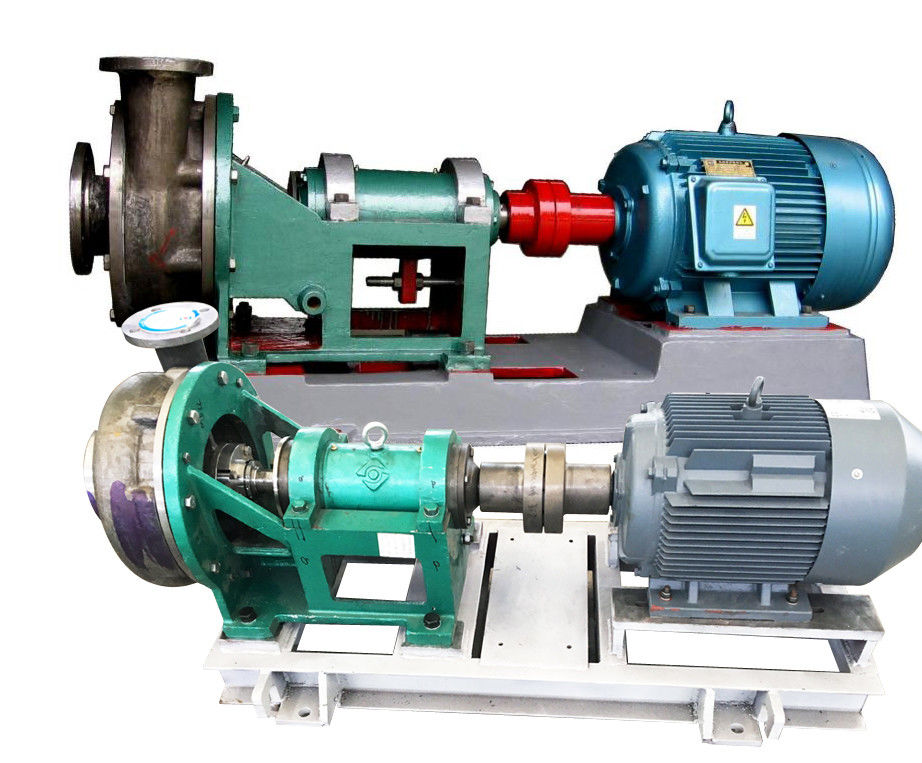

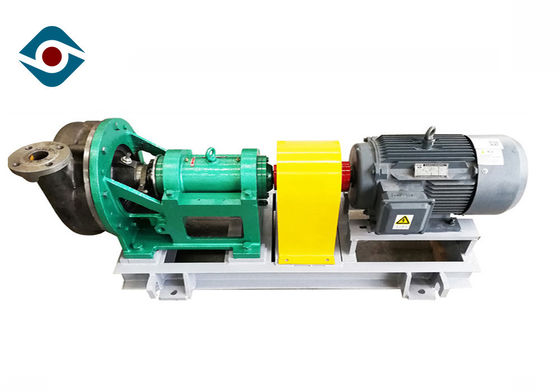

Stainless Steel Electric Chemical Pump , Horizontal Forced Circulation Pump

Stainless Steel Electric Chemical Pump , Horizontal Forced Circulation Pump

Summarize:

1. Horizontal corrosion-resistant centrifugal pumps

2. Spacious impeller flow channel

3. Superior hydraulic performance

4. Back blade

5. Variable types of shaft seal

Structure

Structure Features

1. Elbow structure for pump body,piece-welded body and casted body for selection.
2. Pump impeller is cantilever type with spherical hub,impeller blades are adjustable.
3. Pump shaft adopts butt welding workmanship,the wetted parts or possible wetted parts are made from stainless steel or other corrosive materials.
4. Mechanical seal and packing seal can be interchangeable.
5. Adopting cartridge mechanical seal,reliable and easy for maintenance.
6. Enlarged cylinder type bearing housing with oil level glass and oil filler,which extends the bearing life and interval of lubricant changing.
7. Pump and be driven by motor through V-belts,gear box or directly through couplings. For pipe hung pump,the universal joint transmission must be adopted if the motor ≥200kW.

Usage

The Versatility, Durability, Reliability of WD-series chemical process pump make sure the pump can work steady and smoothly. Regardless of output — bulk chemicals and petrochemicals or fine chemicals and pharmaceuticals, we offer the pumps and systems needed by the chemical industry to effectively work and move:
• Process liquids, including low-flow/high-head, toxic and temperature-sensitive applications
• Transportation, including transfer, storage, tank car loading/unloading and pipeline
• Effluent treatment
