Product Details:
Payment & Shipping Terms:
|
| Type: | Multi Type | Material: | Stainless Steel |
|---|---|---|---|
| Condition: | New | Brand: | Chengdu Yongyi |
| Dimension: | ≤5430x5800 | Length Of Shaft: | Customized |
| OEM: | Welcome | Power(w): | To 55kW(75HP) |
| Application: | Chemicals Processing | ||
| High Light: | chemical agitator,stainless steel agitator |
||
Popular Stainless Steel Chemical Industrial Homogenizer High Speed Agitator Paddle Mixer
Features
(1) High mixing efficiency, wide application
Glue mixing machine, the materials are mixed rapidly under the action of strong shearing and kneading force. Various agitators (blade type, twist type, claw type, frame type etc) are in option based on materials with different viscosity and different specific gravity.
(2) Safe and convenient operation
Adopt hydraulic cylinder as lifting actuators. Control the mixer up, stop and down through controlling the valve, simple operation with high stability.
(3) No residue on the wall, clean discharging
There is scraper on the planetary frame rotating together with the planetary frame, it clings to the container and scrape the materials on the wall off continuously, and ensure without mixing dead corner and excellent mixing result.
(4) Customized options
Options for explosion-proof type, closed type, heating type, with PLC intelligent control type, etc.
Material options for SS304, SS316L or special Spraying materials.
Product Introduction
1. Open Turbine Agitator with Three Oblique Blades
This kind of agitator is axial-flow agitator and has good convective circulation capability, eddy circulation capability and it can diffuse turbulence. It is applicable for mixing, dispersing, crystallizing particles, reacting, dissolving, solid-liquid suspension and transferring heat.
Application conditions: Dj / D = 0.2-0.8; Applicable viscosity is commonly less than 50000cp; n = 10-400rpm; linear velocity is 2-8 (m / s)
Dimension
| Dj | d | d2 | h | d1 | d3 | L | b | t | δ | Wide Type | Narrow Type | ||||
| B | M | G | B | M | G | ||||||||||
| 200 | 30 | 45 | 40 | M8 | 8 | 33.3 | 3 | 40 | 19 | 0.5 | 25 | 12 | 0.5 | ||
| 250 | 30 | 45 | 40 | M8 | 8 | 33.3 | 4 | 50 | 42 | 0.8 | 31 | 26 | 0.6 | ||
| 300 | 30 | 45 | 40 | M8 | 8 | 33.3 | 6 | 60 | 115 | 1.4 | 38 | 73 | 1 | ||
| 350 | 40 | 60 | 60 | M10 | 12 | 43.3 | 6 | 70 | 134 | 2.2 | 44 | 84 | 1.7 | ||
| 400 | 40 | 60 | 60 | M10 | 12 | 43.3 | 8 | 80 | 272 | 3.3 | 50 | 170 | 2.4 | ||
| 450 | 50 | 80 | 80 | M10 | 14 | 53.8 | 8 | 90 | 305 | 5.1 | 56 | 190 | 3.9 | ||
| 500 | 50 | 80 | 80 | M10 | M10 | 230 | 14 | 53.8 | 8 | 100 | 271 | 6.4 | 63 | 146 | 4.9 |
| 550 | 60 | 60 | 90 | M10 | M10 | 240 | 18 | 64.4 | 10 | 110 | 477 | 9 | 69 | 260 | 6.8 |
| 600 | 65 | 100 | 90 | M12 | M10 | 250 | 18 | 69.4 | 10 | 120 | 530 | 10.8 | 75 | 292 | 8.2 |
| 650 | 65 | 100 | 90 | M12 | M10 | 250 | 18 | 69.4 | 10 | 130 | 583 | 12.2 | 81 | 323 | 9 |
| 700 | 65 | 100 | 90 | M12 | M10 | 250 | 18 | 69.4 | 10 | 140 | 636 | 13.7 | 88 | 361 | 10 |
| 750 | 65 | 100 | 90 | M12 | M10 | 250 | 18 | 69.4 | 10 | 150 | 689 | 15.3 | 94 | 392 | 11 |
| 800 | 70 | 100 | 110 | M16 | M10 | 250 | 20 | 74.9 | 12 | 160 | 1069 | 20 | 100 | 611 | 14.1 |
| 850 | 70 | 100 | 110 | M16 | M10 | 250 | 20 | 74.9 | 12 | 170 | 1145 | 22.2 | 106 | 657 | 15.4 |
| 900 | 80 | 120 | 120 | M16 | M10 | 270 | 22 | 85.4 | 12 | 180 | 1222 | 26.5 | 113 | 710 | 19.1 |
| 950 | 80 | 120 | 120 | M16 | M10 | 270 | 22 | 85.4 | 12 | 190 | 1298 | 29 | 119 | 756 | 20.6 |
| 1000 | 80 | 120 | 120 | M16 | M12 | 320 | 22 | 85.4 | 12 | 200 | 1344 | 31.6 | 125 | 771 | 22.2 |
| 1100 | 90 | 135 | 150 | M20 | M12 | 320 | 25 | 95.4 | 14 | 220 | 2037 | 45.4 | 138 | 1185 | 32.3 |
| 1200 | 100 | 150 | 150 | M20 | M12 | 320 | 28 | 106.4 | 14 | 240 | 2245 | 54.2 | 150 | 1310 | 38.5 |
| 1300 | 110 | 160 | 170 | M20 | M12 | 350 | 28 | 116.4 | 14 | 260 | 2453 | 64.2 | 163 | 1445 | 45.8 |
| 1400 | 110 | 160 | 170 | M20 | M12 | 360 | 28 | 116.4 | 14 | 280 | 2661 | 72.6 | 175 | 1569 | 51 |
| 1500 | 120 | 180 | 170 | M20 | M12 | 360 | 32 | 127.4 | 14 | 300 | 2868 | 85.4 | 188 | 1704 | 60.9 |
| 1600 | 120 | 180 | 170 | M20 | M16 | 380 | 32 | 127.4 | 16 | 320 | 3909 | 106 | 200 | 2280 | 73.6 |
| 1700 | 130 | 190 | 170 | M20 | M16 | 420 | 32 | 137.4 | 16 | 340 | 4181 | 118 | 213 | 2457 | 82 |
| 1800 | 130 | 190 | 170 | M20 | M16 | 430 | 32 | 137.4 | 16 | 360 | 4452 | 131 | 225 | 2620 | 89.7 |
| 1900 | 140 | 200 | 190 | M20 | M16 | 430 | 36 | 148.4 | 16 | 380 | 4724 | 148 | 238 | 2796 | 105 |
| 2000 | 150 | 210 | 190 | M20 | M16 | 440 | 36 | 158.4 | 16 | 400 | 4995 | 162 | 250 | 2959 | 111 |
| 2200 | 160 | 220 | 220 | M20 | M16 | 450 | 40 | 169.4 | 18 | 440 | 7009 | 218 | 275 | 4175 | 148 |
| 2400 | 160 | 220 | 220 | M20 | M16 | 460 | 40 | 169.4 | 18 | 480 | 7697 | 255 | 300 | 4604 | 172 |
| 2600 | 180 | 260 | 260 | M20 | M16 | 480 | 45 | 190.4 | 18 | 520 | 8384 | 317 | 325 | 5034 | 220 |
2. Propeller Agitator with Four Oblique Blades
Propeller agitator with four oblique blades is similar to three-blade propeller agitator, and it is characterized by a large projection area. For example, type DSX propeller agitator with four wide blades can serve as a disk of disk agitator, so it’s widely used in fermentation cylinder. If disk agitator and propeller agitator are used in combination, to a large extent, energy can be saved.
Application conditions: Dj / D = 0.2-0.8, often 0.4 is choosed; Applicable viscosity is commonly less than 50000cp; linear velocity is 1-10 m / s; Wide-type agitator B / Dj = 0.2, narrow agitator B / Dj = 0.125.
Dimension
| Dj | d | d2 | h | d1 | d3 | b | t | δ | M | Wide Type | Narrow Type | ||
| B | G | B | G | ||||||||||
| 200 | 25 | 40 | 50 | M8 | 8 | 28.3 | 3 | 23 | 80 | 3 | 40 | 1.6 | |
| 250 | 30 | 50 | 50 | M8 | 8 | 33.3 | 4 | 51 | 100 | 3.1 | 50 | 1.9 | |
| 300 | 35 | 50 | 50 | M8 | 10 | 38.3 | 4 | 61 | 120 | 4 | 60 | 2 | |
| 350 | 40 | 65 | 70 | M8 | 12 | 48.3 | 6 | 161 | 140 | 7.2 | 70 | 4.5 | |
| 400 | 45 | 70 | 80 | M10 | 14 | 48.3 | 6 | 184 | 160 | 10 | 80 | 6.2 | |
| 450 | 50 | 80 | 80 | M10 | 14 | 58.8 | 6 | 207 | 180 | 11.2 | 90 | 6.8 | |
| 500 | 55 | 85 | 100 | M10 | M10 | 16 | 59.3 | 8 | 410 | 200 | 20.4 | 100 | 12.4 |
| 550 | 60 | 95 | 100 | M10 | M10 | 18 | 65.4 | 8 | 451 | 220 | 21.2 | 110 | 15.3 |
| 600 | 65 | 100 | 100 | M12 | M10 | 18 | 69.4 | 8 | 492 | 240 | 23.2 | 120 | 16.7 |
| 650 | 65 | 100 | 110 | M12 | M10 | 18 | 69.4 | 8 | 532 | 260 | 30.1 | 130 | 18.7 |
| 700 | 70 | 110 | 120 | M12 | M10 | 20 | 71.9 | 10 | 896 | 280 | 40 | 140 | 26.4 |
| 750 | 70 | 110 | 120 | M16 | M10 | 20 | 71.9 | 10 | 960 | 300 | 45 | 150 | 30.5 |
| 800 | 70 | 110 | 130 | M16 | M10 | 20 | 71.9 | 10 | 1024 | 320 | 52 | 160 | 32.1 |
| 850 | 80 | 120 | 150 | M16 | M10 | 22 | 85.4 | 10 | 1088 | 340 | 58 | 170 | 41 |
| 900 | 80 | 120 | 150 | M16 | M12 | 22 | 85.4 | 10 | 1152 | 360 | 65 | 180 | 45 |
| 950 | 80 | 120 | 150 | M16 | M12 | 22 | 85.4 | 12 | 1751 | 380 | 70 | 190 | 50.5 |
| 1000 | 90 | 145 | 150 | M16 | M12 | 25 | 95.4 | 12 | 1843 | 400 | 85 | 200 | 45.1 |
| 1100 | 100 | 145 | 180 | M16 | M12 | 28 | 106.4 | 12 | 2028 | 440 | 100 | 220 | 70.9 |
| 1200 | 110 | 180 | 180 | M20 | M16 | 28 | 116.4 | 16 | 3932 | 480 | 152 | 240 | 92 |
| 1300 | 120 | 180 | 200 | M20 | M16 | 32 | 127.4 | 16 | 4260 | 520 | 175 | 260 | 121 |
| 1400 | 125 | 180 | 200 | M20 | M16 | 32 | 132.4 | 16 | 4587 | 560 | 200 | 280 | 182 |
| 1500 | 130 | 180 | 240 | M20 | M16 | 32 | 137.4 | 18 | 6220 | 600 | 300 | 300 | 206 |
| 1600 | 130 | 180 | 240 | M24 | M20 | 32 | 137.4 | 18 | 6635 | 640 | 354 | 320 | 247 |
| 1700 | 140 | 220 | 260 | M24 | M20 | 36 | 148.4 | 18 | 7050 | 680 | 387 | 340 | 263 |
| 1800 | 140 | 220 | 260 | M24 | M20 | 36 | 148.4 | 20 | 8704 | 720 | 426 | 360 | 310 |
| 1900 | 150 | 220 | 260 | M24 | M20 | 36 | 158.4 | 20 | 9266 | 760 | 456 | 380 | 322 |
| 2000 | 160 | 220 | 330 | M24 | M20 | 40 | 169.4 | 20 | 9728 | 800 | 564 | 400 | 420 |
| 2200 | 180 | 250 | 380 | M24 | M20 | 45 | 190.4 | 24 | 14745 | 880 | 720 | 440 | 602 |
| 2400 | 180 | 250 | 380 | M24 | M20 | 45 | 190.4 | 24 | 16243 | 630 | 849 | 480 | 649 |
| 2600 | 200 | 270 | 380 | M24 | M20 | 45 | 210.4 | 24 | 19169 | 1040 | 860 | 520 | 702 |
| 2800 | 200 | 270 | 380 | M24 | M20 | 45 | 210.4 | 26 | 24224 | 1120 | 1287 | 560 | 830 |
| 3000 | 200 | 270 | 380 | M24 | M24 | 45 | 210.4 | 26 | 25958 | 1200 | 1568 | 600 | 950 |

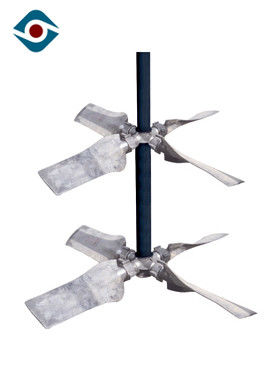

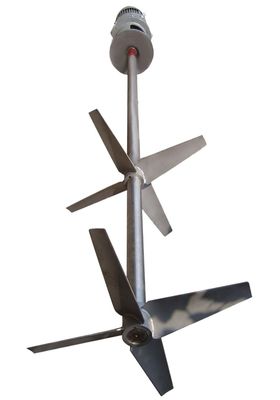

Product Picture
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
