Product Details:
Payment & Shipping Terms:
|
| Theory: | Vortex Pump | Material: | Corrosion Resistance Metal |
|---|---|---|---|
| Warranty: | 1 Year | Flow: | 15~350m3/h |
| Head: | 18~60m | OEM: | Welcome |
| Product Name: | Electric Single-stage Submersible Vertical Vortex Pump With Motor | Pressure: | High Pressure |
| High Light: | vortex impeller submersible pumps,peripheral impeller pump |
||

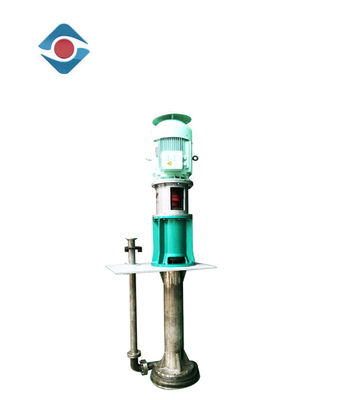

Stainless Steel Vortex Impeller Pump , Marine Self Priming Vortex Perpheral Pump
Product Description
XLY-series vertical vortex pumps adopt vortex impeller. The impeller rotates in the pump body, and the inner pressure of the medium drives the medium in the pump body to rotate to form the eddy. The medium will be driven out from the pump outlet.Relative movement does not occur between the impeller and the impeller blade,, so that the service life of the impeller is greatly extended, and it’s three times as long as that of conventional centrifugal pump impeller.A gap (30-90mm) between pump body and the front cover can prevent impeller from being stuck because of solids and it can make flow passage components free from frequent scaling. In this way, the service life of the impeller is greatly extended and problems like short service life, frequent maintenance and high consumption are well solved.
Technical Parameter
|
Model |
Flow (m³/h) |
Head (m) |
Speed(r/min) |
Efficiency(%) |
|
40XLY-250 |
15-30 |
18-25 |
1450 |
20-25 |
|
40XLY-315 |
15-30 |
25-40 |
1450 |
20-26 |
|
50XLY-250 |
30-50 |
18-25 |
1450 |
20-28 |
|
50XLY-315 |
30-50 |
25-40 |
1450 |
22-30 |
|
50XLY-400 |
30-50 |
40-60 |
1450 |
26-33 |
|
65XLY-250 |
50-80 |
18-25 |
1450 |
30-39 |
|
65XLY-315 |
50-80 |
25-40 |
1450 |
34-43 |
|
65XLY-400 |
50-80 |
40-60 |
1450 |
35-48 |
|
80XLY-250 |
80-120 |
18-25 |
1450 |
35-44 |
|
80XLY-315 |
80-120 |
25-40 |
1450 |
39-46 |
|
80XLY-400 |
80-120 |
40-60 |
1450 |
39-47 |
|
100XLY-315 |
120-160 |
20-40 |
1450 |
40-48 |
|
100XLY-400 |
120-160 |
40-60 |
1450 |
41-50 |
|
125XLY-315 |
160-240 |
20-40 |
1450 |
40-49 |
|
125XLY-400 |
160-240 |
40-60 |
1450 |
42-50 |
|
150XLY-315 |
240-350 |
20-40 |
1450 |
43-49 |
|
150XLY-400 |
240-350 |
40-60 |
1450 |
43-51 |
Operating Conditions
Capacity:15～350m³/h
Head:18～60m
Maximal Efficiency: 20%~51%
NPSH:1m~4m
Allowable Max Motor Power: up to 110kKW
Allowed Max Particle Size: 20mm
RPM:1450r/min
Advantages
The impeller adopts particular large channel structure, so the drain capacity has been improved greatly, it can effectively pass the solid grain whose diameter is about 50% of the pump caliber.
Mechanical seal adopts the latest materials and be made with extra care, so its lifespan is over 8000 hours.
Adopt double-way and automatic coupling installation device which makes the installation, maintenance of the unit convenient and quick.
To realize automation management we will equip various forms sewage special control cabinet according to the consumers'requirements.

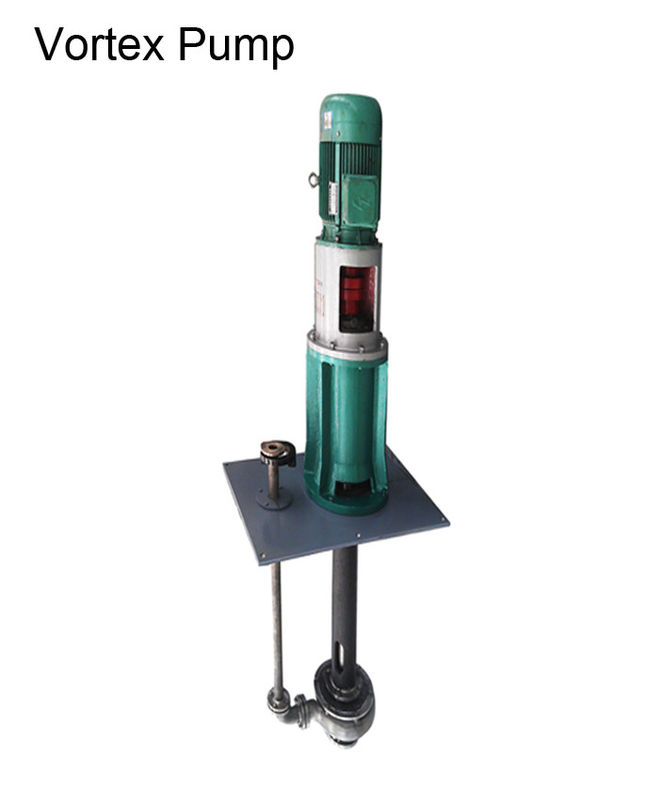

Product Pictures
Pre-sale service
1. Prompt response
2. Compititive Price
3. Factory visit
After service
1. Routine tracing will be done timely.
2. Provide Clients one-yar warranty to make sure the machine work well.
3. Suggestions and any comments & reflection from customer would be treated in priority.
