Product Details:
Payment & Shipping Terms:
|
| Design: | Standardized Chemical Pump | Q Max: | 2040 M3 / H |
|---|---|---|---|
| H Max: | 300m | Color: | Customized |
| Warranty: | 1 Year | Voltage: | 220V/380V/400V/415V/460V |
| Speed: | Up To 2800 RPM | ||
| Highlight: | industrial chemical pumps,pumps used in chemical industry |
||

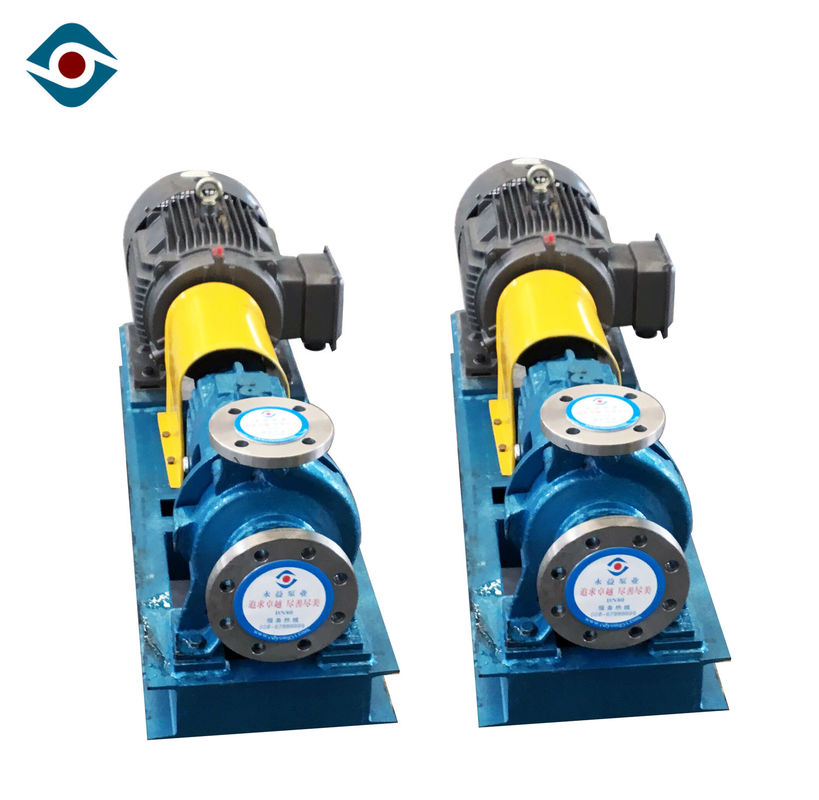

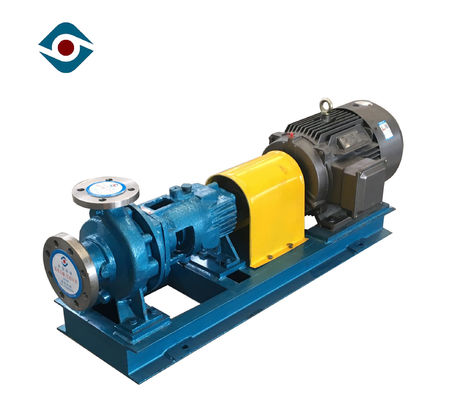

Standardized Centrifugal Pulp & Paper Horizontal Chemical Pumps Efficiency Single Suction
Application
|
In refineries, petrochemical industry, coal processing and low temperature engineering. |
|
In chemical industry, fibre and general processing industries, particularly in paper and pulp industries, sugar industry. |
|
In water industry, particularly seawater desalination plants. |
|
In heating and air-condition ing. |
|
In fossile and nuclear power- stations. |
Product Overview
|
1. ZA-series chemical process pump is single-stage horizontal radial split volute pump. |
|
2. The pump body is supported by foot |
|
3. The impeller is single-suction radial impeller. |
|
4. Liquid is sucked axially and discharged radially. |
|
5. Packing box is equipped with cooler adapter or heater adapter. |
|
6. Packing seal, single mechanical seal and double mechanical sealare adopted for shaft seal |
|
7. The pump is equipped with cooling, washing and sealing fluid system. |
Structure Drawings
| 102.00 | pump body | 161.00 | pump cover | 183.00 | Support foot |
| 210.00 | shaft | 230.00 | impeller | 320.00 | Antifriction bearing |
| 320.01 | Antifriction bearing | 330.00 | Bearing bracket | 360.00 | Bearing cover |
| 360.01 | Bearing cover | 400.00 | Flat gasket | 400.01 | Flat gasket |
| 412.00 | O ring | 412.01 | O ring | 433.00 | Mechanical seal |
| 433.01 | Mechanical seal | 471.00 | Sealing cover | 471.01 | Sealing cover |
| 502.00 | Casing wear ring | 502.01 | Casing wear ring | 502.02 | Casing wear ring |
| 503.00 | Impeller wear ring | 503.01 | Impeller wear ring | 507.00 | deflrctor |
| 507.01 | deflector | 524.00 | sleeve | 524.01 | sleeve |
| 638.00 | Constant-level-oiler | 644.00 | Lubricating ring | 673.00 | Vent filter |
| 710.00 | pipe | 915.00 | Threaded insert | 922.00 | Impeller nut |
| 923.00 | Bearing nut | 932.00 | circlip |
Design Feature
Standard: EN 22858 (ISO 2858), ISO 5199
Design: horizontal, single-stage
Construction: back-pull-out design
Casing design: single volute casing
Impeller: closed
Bearing lubrication: grease or oil lubrication
Installation versions: base plate, base frame or stilt mounting
Payment and Package
Shipping way includes sea shipping, air shipping and express shipping(DHL, TNT, Fedex, ...)
Payment terms is L/C, TT, PAYPAL, WEST UNION, or others negotiated with clients.
