Vertical / Horizontal Axial Flow Pump Irrigation Pump Single Suction High Reliability

China Vertical / Horizontal Axial Flow Pump Irrigation Pump Single Suction High Reliability supplier
Vertical / Horizontal Axial Flow Pump Irrigation Pump Single Suction High Reliability supplier Vertical / Horizontal Axial Flow Pump Irrigation Pump Single Suction High Reliability supplier

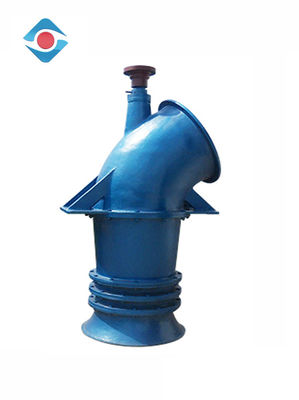

Large Image :  Vertical / Horizontal Axial Flow Pump Irrigation Pump Single Suction High Reliability

Product Details:

Place of Origin: SIchuan, China
Brand Name: Chengdu Yongyi
Certification: ISO9001
Model Number: ZW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 500-5000/set
Packaging Details: free fumigation export wooden box packaging
Delivery Time: 25 working days after receiveing advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 300 Sets/Month
Contact Now
Detailed Product Description
Theory: Axial Flow Pump Max Flow: 13000m3/h
Max Head: 8m Voltage: 380V/Customized
Warranty: 1 Year Color: Customized
Standard Or Nonstandard: Standard Power: Electric
KY: Axial Fow Pump
High Light:

horizontal axial flow propeller pump

,

axial flow centrifugal pump

 Vertical / Horizontal Axial Flow Pump Irrigation Pump Single Suction High Reliability



Brief Introduction



ZW-series chemical axial flow pump is single-stage cantilever pump. It adopts front-open door structure. This structure is very simple and convenient for maintaining, because pump body and pipeline are not needed to be disassembled. Pump body is supported from its middle; alignment of rotor is good; packing seal is adopted, when specially required, mechanical seal can be adopted for seal. Impeller and suction nozzle match very well. When transferring abrasive materials, the only thing need to do is to change impeller and suction nozzle. In this way, the service life of pump body is increased.



Feature



1. excellent performance and high reliability

2. good anti-cavitation performance

3. cantilever rotor, front opening structure
4. supported from the middle of the pump body
5. packing seals and mechanical seals
6. impeller can be reversed to change the flow direction of the medium



Performance Data



Flow: 800 ~ 13000m ³ / h

Head: 2 ~ 8m.

DN:300-1100mm

Pressure: 1.0MPa

Temperature: -50℃-+150℃



Structure



Vertical / Horizontal Axial Flow Pump Irrigation Pump Single Suction High Reliability

Vertical / Horizontal Axial Flow Pump Irrigation Pump Single Suction High Reliability



1

Impeller nut

8

Packing room

15

coupling

22

framework oil seal

29

filler

2

Sealing cover

9

Bearing base

16

coupling

23

Lower bearing upper cover

30

Sealing cover

3

joint

10

framework oil seal

17

motor

24

Lower bearing lower cover

31

impeller

4

sheath

11

lower bearing

18

Round nut

25

Packing cover





5

shaft

12

base

19

upper bearing cover

26

nozzle





6

sleeve

13

Motor base

20

upper bearing

27

Water seal ring





7

Pump body

14

Oil pointer

21

Bearing case

28

Pump cover







Application



  1. Phosphate compound fertilizer industry: convey corrosive media containing solid particles, such as flash cooling, phosphoric acid concentration and other stations.
  2. Alumina industry, non-ferrous metallurgy industry: lye concentration cycle.
  3. Chemical, alkali, salt industry: concentrated cycle station.
  4. Papermaking, light industry: concentrated circulation station.

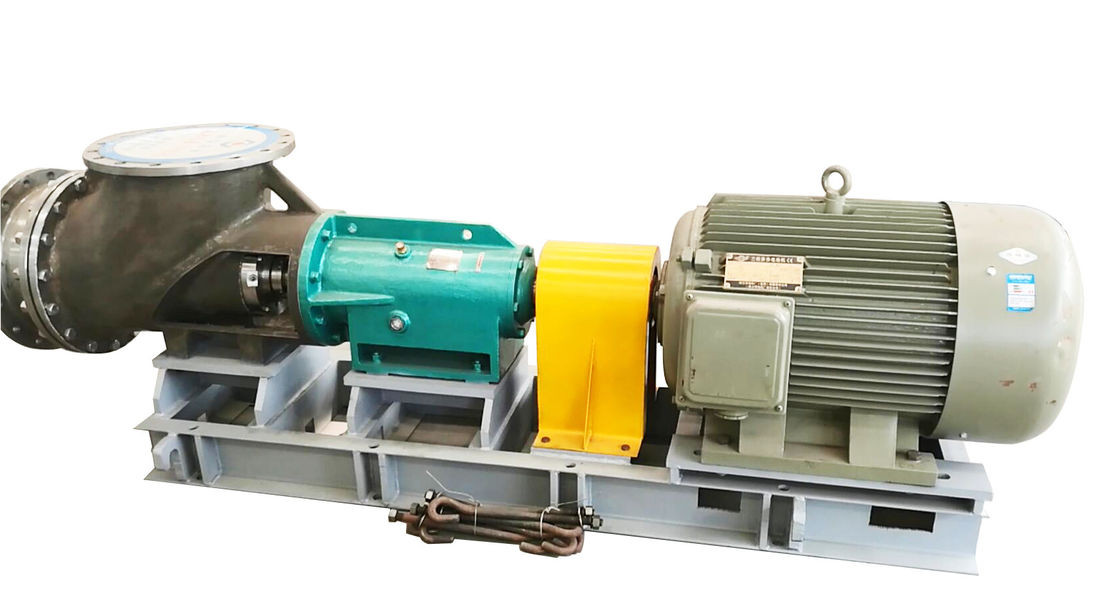

Product Picture

Vertical / Horizontal Axial Flow Pump Irrigation Pump Single Suction High Reliability
