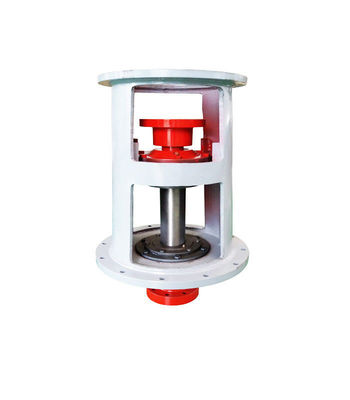

Factory Provide Industrial Chemical Mixer Vertical Agitator Mixer for Chemical Industry
Product Description
Our company can supply agitators of almost 20 classes and 50 types in total, from the most common types (standard agitators which are in accordance with HB5, SB90, HG/T3796.1~12-2005 standard) to customized types (non-standard agitators which meet production process requirements from customers).
Technical Parameter

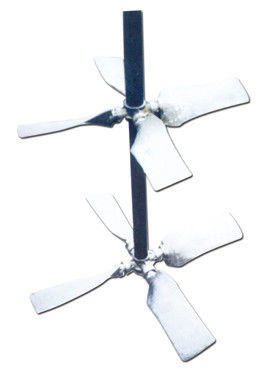

1. Open Turbine Agitator with Four Oblique Blades
Open turbine agitator with four oblique blades is similar to open turbine agitator with six flat blades. Under the same conditions, stirring intensity of the former is weaker than that of the latter, and its comprehensive performance is better when the higher speed is required. It’s one of the most widely used agitators.
According to different requirements, stabilizer can be designed as cylindrical stabilizer or stabilizer fin.
If stabilizer is designed as stabilizer fin, model P will be replaced by model W.
Application conditions: Dj / D = 0.2-0.8, often 0.4 is choosed; Applicable viscosity is commonly less than 50000cp; linear velocity is 1-10 (m / s); wide-type agitator B / Dj = 0.2, narrow-type agitator B / Dj = 0.125.
Dimension
Dj | d | d2 | h | d1 | d3 | L | b | t | δ | Wide Type | Narrow Type | ||||
B | M | G | B | M | G | ||||||||||
200 | 30 | 45 | 40 | M8 | 8 | 33.3 | 3 | 40 | 25 | 0.6 | 25 | 16 | 0.5 | ||
250 | 30 | 45 | 40 | M8 | 8 | 33.3 | 4 | 50 | 56 | 0.9 | 31 | 35 | 0.8 | ||
300 | 30 | 45 | 40 | M8 | 8 | 33.3 | 6 | 60 | 153 | 1.8 | 38 | 97 | 1.5 | ||
350 | 40 | 60 | 60 | M10 | 12 | 43.3 | 6 | 70 | 179 | 2.7 | 44 | 112 | 2.2 | ||
400 | 40 | 60 | 60 | M10 | 12 | 43.3 | 8 | 80 | 363 | 4.2 | 50 | 227 | 3.3 | ||
450 | 50 | 80 | 80 | M10 | 14 | 53.8 | 8 | 90 | 407 | 6.2 | 56 | 253 | 5.1 | ||
500 | 50 | 80 | 80 | M10 | M10 | 230 | 14 | 53.8 | 8 | 100 | 361 | 7.4 | 63 | 295 | 6 |
550 | 60 | 60 | 90 | M10 | M10 | 240 | 18 | 64.4 | 10 | 110 | 636 | 10.6 | 69 | 347 | 8.6 |
600 | 65 | 100 | 90 | M12 | M10 | 250 | 18 | 69.4 | 10 | 120 | 707 | 12.8 | 69 | 389 | 10.4 |
650 | 65 | 100 | 90 | M12 | M10 | 250 | 18 | 69.4 | 10 | 130 | 777 | 14.6 | 75 | 431 | 11.8 |
700 | 65 | 100 | 90 | M12 | M10 | 250 | 18 | 69.4 | 10 | 140 | 848 | 16.6 | 81 | 481 | 13.3 |
750 | 65 | 100 | 90 | M12 | M10 | 250 | 18 | 69.4 | 10 | 150 | 919 | 18.7 | 88 | 523 | 14.9 |
800 | 70 | 100 | 110 | M12 | M10 | 250 | 20 | 74.9 | 12 | 160 | 1425 | 24.9 | 94 | 815 | 19.6 |
850 | 70 | 100 | 110 | M16 | M10 | 250 | 20 | 74.9 | 12 | 170 | 1527 | 27.8 | 100 | 876 | 21.8 |
900 | 80 | 120 | 120 | M16 | M10 | 270 | 22 | 85.4 | 12 | 180 | 1629 | 32.7 | 106 | 947 | 26.1 |
950 | 80 | 120 | 120 | M16 | M10 | 270 | 22 | 85.4 | 12 | 190 | 1731 | 36.2 | 113 | 1008 | 28.8 |
1000 | 80 | 120 | 120 | M16 | M12 | 320 | 22 | 85.4 | 12 | 200 | 1792 | 39.7 | 119 | 1028 | 31.3 |
1100 | 90 | 135 | 150 | M20 | M12 | 320 | 25 | 95.4 | 14 | 220 | 2716 | 56.9 | 126 | 1580 | 45 |
1200 | 100 | 150 | 150 | M20 | M12 | 350 | 28 | 106.4 | 14 | 240 | 2993 | 67.9 | 138 | 1747 | 54 |
1300 | 110 | 160 | 170 | M20 | M12 | 360 | 28 | 116.4 | 14 | 260 | 3271 | 80.4 | 150 | 1927 | 64 |
1400 | 110 | 160 | 170 | M20 | M12 | 360 | 28 | 116.4 | 14 | 280 | 3548 | 91.6 | 163 | 2092 | 72.4 |
1500 | 120 | 180 | 170 | M20 | M12 | 380 | 32 | 127.4 | 14 | 300 | 3824 | 107 | 175 | 2272 | 85.2 |
1600 | 120 | 180 | 170 | M20 | M16 | 420 | 32 | 127.4 | 16 | 320 | 5212 | 135 | 188 | 3040 | 106 |
1700 | 130 | 190 | 170 | M20 | M16 | 430 | 32 | 137.4 | 16 | 340 | 5575 | 151 | 200 | 3276 | 113 |
1800 | 130 | 190 | 170 | M20 | M16 | 430 | 32 | 137.4 | 16 | 360 | 5936 | 168 | 213 | 3493 | 131 |
1900 | 140 | 200 | 190 | M20 | M16 | 440 | 36 | 148.4 | 16 | 380 | 5299 | 188 | 238 | 3728 | 148 |
2000 | 150 | 210 | 190 | M20 | M16 | 450 | 36 | 158.4 | 16 | 400 | 5660 | 208 | 250 | 3945 | 162 |
2200 | 160 | 220 | 220 | M20 | M16 | 460 | 40 | 169.4 | 18 | 440 | 9345 | 280 | 275 | 5567 | 218 |
2400 | 160 | 220 | 220 | M20 | M16 | 460 | 40 | 169.4 | 18 | 480 | 10263 | 330 | 300 | 6139 | 255 |
2600 | 180 | 260 | 260 | M20 | M16 | 480 | 45 | 190.4 | 18 | 520 | 11179 | 404 | 325 | 6712 | 317 |
2. Propeller Agitator with Four Oblique Blades
Propeller agitator with four oblique blades is similar to three-blade propeller agitator, and it is characterized by a large projection area. For example, type DSX propeller agitator with four wide blades can serve as a disk of disk agitator, so it’s widely used in fermentation cylinder. If disk agitator and propeller agitator are used in combination, to a large extent, energy can be saved.
Application conditions: Dj / D = 0.2-0.8, often 0.4 is choosed; Applicable viscosity is commonly less than 50000cp; linear velocity is 1-10 m / s; Wide-type agitator B / Dj = 0.2, narrow agitator B / Dj = 0.125.
Dimension
Dj | d | d2 | h | d1 | d3 | b | t | δ | M | Wide Type | Narrow Type | ||
B | G | B | G | ||||||||||
200 | 25 | 40 | 50 | M8 | 8 | 28.3 | 3 | 23 | 80 | 3 | 40 | 1.6 | |
250 | 30 | 50 | 50 | M8 | 8 | 33.3 | 4 | 51 | 100 | 3.1 | 50 | 1.9 | |
300 | 35 | 50 | 50 | M8 | 10 | 38.3 | 4 | 61 | 120 | 4 | 60 | 2 | |
350 | 40 | 65 | 70 | M8 | 12 | 48.3 | 6 | 161 | 140 | 7.2 | 70 | 4.5 | |
400 | 45 | 70 | 80 | M10 | 14 | 48.3 | 6 | 184 | 160 | 10 | 80 | 6.2 | |
450 | 50 | 80 | 80 | M10 | 14 | 58.8 | 6 | 207 | 180 | 11.2 | 90 | 6.8 | |
500 | 55 | 85 | 100 | M10 | M10 | 16 | 59.3 | 8 | 410 | 200 | 20.4 | 100 | 12.4 |
550 | 60 | 95 | 100 | M10 | M10 | 18 | 65.4 | 8 | 451 | 220 | 21.2 | 110 | 15.3 |
600 | 65 | 100 | 100 | M12 | M10 | 18 | 69.4 | 8 | 492 | 240 | 23.2 | 120 | 16.7 |
650 | 65 | 100 | 110 | M12 | M10 | 18 | 69.4 | 8 | 532 | 260 | 30.1 | 130 | 18.7 |
700 | 70 | 110 | 120 | M12 | M10 | 20 | 71.9 | 10 | 896 | 280 | 40 | 140 | 26.4 |
750 | 70 | 110 | 120 | M16 | M10 | 20 | 71.9 | 10 | 960 | 300 | 45 | 150 | 30.5 |
800 | 70 | 110 | 130 | M16 | M10 | 20 | 71.9 | 10 | 1024 | 320 | 52 | 160 | 32.1 |
850 | 80 | 120 | 150 | M16 | M10 | 22 | 85.4 | 10 | 1088 | 340 | 58 | 170 | 41 |
900 | 80 | 120 | 150 | M16 | M12 | 22 | 85.4 | 10 | 1152 | 360 | 65 | 180 | 45 |
950 | 80 | 120 | 150 | M16 | M12 | 22 | 85.4 | 12 | 1751 | 380 | 70 | 190 | 50.5 |
1000 | 90 | 145 | 150 | M16 | M12 | 25 | 95.4 | 12 | 1843 | 400 | 85 | 200 | 45.1 |
1100 | 100 | 145 | 180 | M16 | M12 | 28 | 106.4 | 12 | 2028 | 440 | 100 | 220 | 70.9 |
1200 | 110 | 180 | 180 | M20 | M16 | 28 | 116.4 | 16 | 3932 | 480 | 152 | 240 | 92 |
1300 | 120 | 180 | 200 | M20 | M16 | 32 | 127.4 | 16 | 4260 | 520 | 175 | 260 | 121 |
1400 | 125 | 180 | 200 | M20 | M16 | 32 | 132.4 | 16 | 4587 | 560 | 200 | 280 | 182 |
1500 | 130 | 180 | 240 | M20 | M16 | 32 | 137.4 | 18 | 6220 | 600 | 300 | 300 | 206 |
1600 | 130 | 180 | 240 | M24 | M20 | 32 | 137.4 | 18 | 6635 | 640 | 354 | 320 | 247 |
1700 | 140 | 220 | 260 | M24 | M20 | 36 | 148.4 | 18 | 7050 | 680 | 387 | 340 | 263 |
1800 | 140 | 220 | 260 | M24 | M20 | 36 | 148.4 | 20 | 8704 | 720 | 426 | 360 | 310 |
1900 | 150 | 220 | 260 | M24 | M20 | 36 | 158.4 | 20 | 9266 | 760 | 456 | 380 | 322 |
2000 | 160 | 220 | 330 | M24 | M20 | 40 | 169.4 | 20 | 9728 | 800 | 564 | 400 | 420 |
2200 | 180 | 250 | 380 | M24 | M20 | 45 | 190.4 | 24 | 14745 | 880 | 720 | 440 | 602 |
2400 | 180 | 250 | 380 | M24 | M20 | 45 | 190.4 | 24 | 16243 | 630 | 849 | 480 | 649 |
2600 | 200 | 270 | 380 | M24 | M20 | 45 | 210.4 | 24 | 19169 | 1040 | 860 | 520 | 702 |
2800 | 200 | 270 | 380 | M24 | M20 | 45 | 210.4 | 26 | 24224 | 1120 | 1287 | 560 | 830 |
3000 | 200 | 270 | 380 | M24 | M24 | 45 | 210.4 | 26 | 25958 | 1200 | 1568 | 600 | 950 |
