Product Details:
Payment & Shipping Terms:
|
| Flow: | 5-500m3/h | Head: | 10-70m |
|---|---|---|---|
| Frequency: | 50 /60 Hz | Shaft: | Long Shaft |
| Color: | Customized | Warranty: | 1 Year |
| Flange: | Customized | Speed: | 1450rpm/2900rpm |
| High Light: | submersible chemical pump,vertical long shaft pump |
||

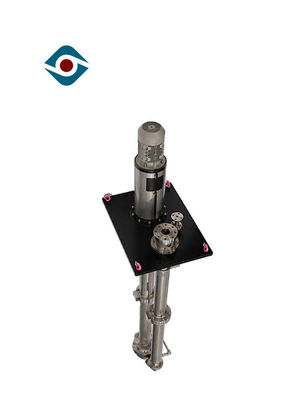

Vertical Inline Centrifugal Submersible Sand Pump Run-dry Design Non Clog for Sewage with Fiber
Brief Description
Ductile iron casing provides durable, safety and long service life.
The impeller and liner are all made of high chrome alloy(Cr26) material withfeatures of anti-wear, anti-abrasive, high efficiency and long service life.
Cylindrical structure, adjusting the space between impeller and front liner easily. They can be removed completely when being repaired.
Bearing assembly use grease lubrication.
Structure
Technical Data
 |
Model: ZAL-series vertical submerged centrifugal pump |
| Discharge Size: 32mm~200mm | |
| Inlet Size: 50mm~250mm | |
| Capacity: 5～500 m³/h | |
| Head: 10 ~ 70 m | |
| Maximal Efficiency: 70% | |
| NPSH: 1.4m~4.5m | |
| Allowable Max Motor Power: 315 kw | |
| Impeller | Allowed Max Particle Size: / |
| Vanes: 5/6 | Seal Type: packing seal |
| Type: closed | Pump Weight:up to 3000kg |
| Material:Metal (according to working conditions ) | RPM: 1450 r/min or 2900 r/min |
Technical Parameter
|
Model |
rotate speed n=2950r/min |
rotate speed n=1475r/min |
||||||
|
Flow (m3/h) |
Head (m) |
ρ=1 |
ρ=1.35 |
Flow (m3/h) |
Head |
ρ=1 |
ρ=1.35 |
|
|
Motor power |
Motor power |
|||||||
|
ZAL25-200 |
7.5-11.5 |
28-49 |
2.2-5.5 |
3-7.5 |
4-5.8 |
6.5-12 |
0.75-1.1 |
0.75-1.1 |
|
ZAL25-250 |
10.8-12.5 |
46-78 |
5.5-11 |
7.5-15 |
5.4-6.3 |
11.5-19.5 |
1.1-1.5 |
1.5-2.2 |
|
ZAL25-315 |
15.3-20 |
74-130 |
15-30 |
22-37 |
7.6-10 |
18.5-32 |
2.2-3 |
2.2-4 |
|
ZAL40-160 |
20-28 |
16-33 |
2.2-5.5 |
3-7.5 |
9.5-14 |
4.5-8 |
0.75-1.1 |
0.75-1.1 |
|
ZAL40-200 |
18-29 |
20-53 |
4-11 |
5.5-15 |
9.5-14.5 |
7-13 |
1.1-1.5 |
1.1-2.2 |
|
ZAL40-250 |
21-32 |
47-78 |
7.5-18.5 |
11-22 |
10.5-16 |
11-19.5 |
1.1-3 |
1.5-4 |
|
ZAL40-315 |
29-42 |
61-115 |
15-37 |
22-45 |
15-21 |
15-29 |
3-5.5 |
4-7.5 |
|
ZAL50-160 |
31-50 |
17-34 |
3-11 |
4-15 |
16.5-25 |
4-8.4 |
0.75-1.5 |
1.1-2.2 |
|
ZAL50-200 |
43-62 |
28-82 |
7.5-18.5 |
11-22 |
22-31 |
7-13 |
1.1-3 |
1.5-3 |
|
ZAL50-250 |
50-70 |
45-82 |
15-30 |
18.5-37 |
26-35 |
11-20 |
2.2-4 |
3-5.5 |
|
ZAL50-315 |
57-87 |
57-115 |
22-55 |
30-75 |
30-44 |
14-28 |
3-11 |
4-11 |
|
ZAL50-400 |
60-82 |
102-194 |
45-110 |
75-160 |
30-41 |
25-48 |
7.5-15 |
11-22 |
|
ZAL80-160 |
66-94 |
17-32 |
5.5-15 |
7.5-18.5 |
34-47 |
4-8 |
1.1-2.2 |
1.1-3 |
|
ZAL80-200 |
70-103 |
30-54 |
11-30 |
15-37 |
36-51 |
7.5-12.5 |
1.5-4 |
2.2-5.5 |
|
ZAL80-250 |
87-127 |
45-82 |
22-45 |
30-75 |
46-64 |
11-20 |
3-7.5 |
4-11 |
|
ZAL40-315 |
90-141 |
74-127 |
37-90 |
45-132 |
45-70 |
18-33 |
5.5-15 |
7.5-18.5 |
|
ZAL80-400 |
116-171 |
95-187 |
75-160 |
90-220 |
53-85 |
25-46 |
11-22 |
15-30 |
|
ZAL100-160 |
110-162 |
12-29 |
7.5-22 |
11-30 |
55-81 |
3-7.2 |
1.1-3 |
1.5-4 |
|
ZAL100-200 |
135-193 |
26-50 |
18.5-45 |
30-55 |
70-95 |
6-12.5 |
3-5.5 |
3-7.5 |
|
ZAL100-250 |
170-230 |
44-79 |
37-75 |
45-90 |
90-115 |
10-20 |
5.5-11 |
7.5-15 |
|
ZAL100-315 |
170-250 |
71-126 |
75-132 |
75-200 |
86-125 |
17.5-31 |
11-18.5 |
11-30 |
|
ZAL100-400 |
224-300 |
105-194 |
110-250 |
160-355 |
115-150 |
26-48 |
15-37 |
22-45 |
|
ZAL150-250 |
310-190 |
40-74 |
55-110 |
75-160 |
155-195 |
10-18.5 |
11-15 |
11-22 |
|
ZAL150-315 |
310-442 |
68-125 |
90-250 |
132-355 |
150-220 |
17-32.5 |
15-30 |
18.5-45 |
|
ZAL150-400 |
400-520 |
113-502 |
200-400 |
280-500 |
200-260 |
28-51 |
30-55 |
37-75 |
|
ZAL150-500 |
|
|
|
|
208-300 |
45-77 |
45-110 |
75-132 |
|
ZAL150-630 |
|
|
|
|
220-360 |
60-115 |
75-200 |
110-250 |
|
ZAL200-250 |
470-610 |
32-72 |
75-160 |
90-220 |
240-305 |
8-17.5 |
11-22 |
15-30 |
|
ZAL200-315 |
480-710 |
65-122 |
132-355 |
185-450 |
350-350 |
15-30 |
18.5-45 |
22-55 |
|
ZAL200-500 |
|
|
|
|
330-495 |
48-84 |
75-185 |
90-220 |
|
ZAL200-560 |
|
|
|
|
350-540 |
62-105 |
110-250 |
132-355 |
|
ZAL200-630 |
|
|
|
|
372-580 |
75-132 |
132-315 |
185-450 |
|
ZAL250-315 |
|
|
|
|
424-545 |
13-27 |
30-55 |
37-75 |
|
ZAL250-400 |
|
|
|
|
500-660 |
24-49 |
53-132 |
75-160 |
|
ZAL250-500 |
|
|
|
|
630-800 |
42-82 |
110-280 |
160-400 |
|
ZAL250-560 |
|
|
|
|
665-860 |
57-106 |
160-400 |
250-560 |
|
ZAL300-400 |
|
|
|
|
780-1050 |
26-48 |
90-200 |
132-280 |
|
ZAL300-500 |
|
|
|
|
870-1240 |
42-78 |
160-450 |
250-560 |
|
ZAL300-560 |
|
|
|
|
950-1340 |
56-104 |
280-560 |
400-800 |
|
ZAL300-630 |
|
|
|
|
950-1450 |
75-132 |
355-1000 |
500-1400 |
|
ZAL300-500 |
|
|
|
|
1300-1870 |
38-74 |
220-630 |
315-1000 |
|
ZAL300-560 |
|
|
|
|
1500-2040 |
54-98 |
355-900 |
500-1250 |
Application
1, Chemical Industry System 2, Sewage System 3, Civil Engineering, Construction System 4, Power Station System
5, Petroleum Industry System 6, Mine Metallurgy System 7, Light Industry System
Product Show
Packing and Shipping
| MOQ | 1 Set |
| Port | Shanghai |
| Payment | T/T, L/C, Western Union |
| Supply ability | 300 sets/Month |
| Packaging | free fumigation export wooden box packaging |
| Delivery time | 5-25days according to the order quantity |
| Shipping | By sea, by air, by train |
