Product Details:
Payment & Shipping Terms:
|
| Max Flow: | 450m3/h | Max Head: | 120m |
|---|---|---|---|
| Temperature: | -50-80℃ | Voltage: | Requirements |
| Warranty: | 1 Year | Power: | 5.5-160KW |
| Color: | Customized | Brand Name: | Chengdu Yongyi |
| OEM: | Welcome | ||
| High Light: | vertical chemical pump,vertical cantilever pumps |
||
Vertical Single-stage Circulating Centrifugal Pump, Sustainable Corrosive Resistant Pump
Product Description
WDL-series pump is anti-abrasive and anti-corrosive vertical submerged centrifugal pump, which is designed according to multiphase flow theory and practice experience. WDL-series single stage single-suction pump is applicable to convey easy crystal medium containing solid particles, featured by excellent performance, advanced structure, good anti-cavitation properties, strong bearing, stable operation, easy maintenance and long service life.
Technical Parameter
| model |
flow (m³/h) |
Head (m) |
Rotating speed (r/min) |
Highest efficiency (%) |
pump head weight KG |
Submerged depth mm |
Shaft component |
| 40WDL-250 | 8-20 | 15-28 | 1450 | 39 | 620 | 1300/1000 | 100 |
| 40WDL-310 | 8-40 | 23-42 | 1450 | 45 | 692 | 1300/1000 | 100 |
| 40WDL-350 | 8-45 | 35-54 | 1450 | 37 | 870 | 1300/1000 | 120 |
| 50WDL-250 | 10-30 | 15-28 | 1450 | 40 | 642 | 1300/1000 | 100 |
| 50WDL-310 | 15-60 | 25-42 | 1450 | 45 | 705 | 1300/1000 | 100 |
| 50WDL-350 | 15-70 | 35-54 | 1450 | 50 | 886 | 1300/1000 | 120 |
| 50WDL-400 | 20-75 | 50-75 | 1450 | 45 | 961 | 1300/1000 | 120 |
| 65WDL-250 | 30-70 | 15-28 | 1450 | 48 | 652 | 1300/1000 | 100 |
| 65WDL-310 | 30-90 | 25-40 | 1450 | 57 | 905 | 1300/1000 | 120 |
| 65WDL-350 | 40-100 | 35-54 | 1450 | 59 | 915 | 1300/1000 | 120 |
| 65WDL-400 | 50-120 | 45-75 | 1450 | 55 | 1008 | 1300/1000 | 120 |
| 65WDL-450 | 50-120 | 70-95 | 1450 | 52 | 1075 | 1300/1000 | 120 |
| 80WDL-250 | 70-100 | 15-25 | 1450 | 61 | 652 | 1300/1000 | 100 |
| 80WDL-310 | 70-120 | 25-40 | 1450 | 62 | 935 | 1300/1000 | 120 |
| 80WDL-350 | 70-160 | 35-52 | 1450 | 65 | 940 | 1300/1000 | 120 |
| 80WDL-400 | 70-160 | 50-75 | 1450 | 62 | 1068 | 1300/1000 | 120 |
| 80WDL-450 | 70-160 | 70-95 | 1450 | 60 | 1100 | 1300/1000 | 120 |
| 100WDL-310 | 100-150 | 20-38 | 1450 | 65 | 960 | 1300/1000 | 120 |
| 100WDL-350 | 100-220 | 35-50 | 1450 | 65 | 970 | 1300/1000 | 120 |
| 100WDL-400 | 100-220 | 40-72 | 1450 | 65 | 1125 | 1300/1000 | 120 |
| 125WDL-310 | 120-260 | 18-36 | 1450 | 67 | 1025 | 1300/1000 | 120 |
| 125WDL-350 | 120-300 | 35-50 | 1450 | 68 | 1035 | 1300/1000 | 120 |
| 125WDL-400 | 140-350 | 45-70 | 1450 | 70 | 1206 | 1300/1000 | 120 |
| 125WDL-450 | 150-360 | 65-90 | 1450 | 67 | 1497 | 1300/1000 | 140 |
| 150WDL-310 | 200-400 | 18-35 | 1450 | 72 | 1127 | 1300/1000 | 120 |
| 150WDL-350 | 200-450 | 25-48 | 1450 | 75 | 1175 | 1300/1000 | 120 |
| 150WDL-400 | 200-450 | 40-65 | 1450 | 73 | 1668 | 1300/1000 | 140 |
Application
In the fields of chemical industry, metallurgy, power industry, paper making industry, food industry, pharmaceutical industry and synthetic fibre industry, WDL-series pumps are applicable to convey corrosive and abrasive liquid (solid content is no more than 40% ).

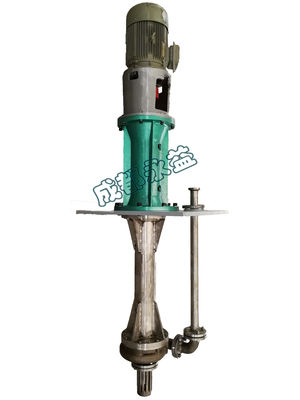

Product Picture
Installation Dimension
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
