Product Details:
Payment & Shipping Terms:
|
| Theory: | Centrifugal | Max Flow: | 500m3/h |
|---|---|---|---|
| Max Head: | 70m | Flange: | Customized |
| Phase: | 3ph | Voltage: | 380/400/415/460V |
| Type: | Submersible Pump | Product Name: | Vertical Submersible Chemical Pump Electric Semi-submersible Pump |
| Highlight: | vertical submersible centrifugal pumps,submersible chemical pump |
||

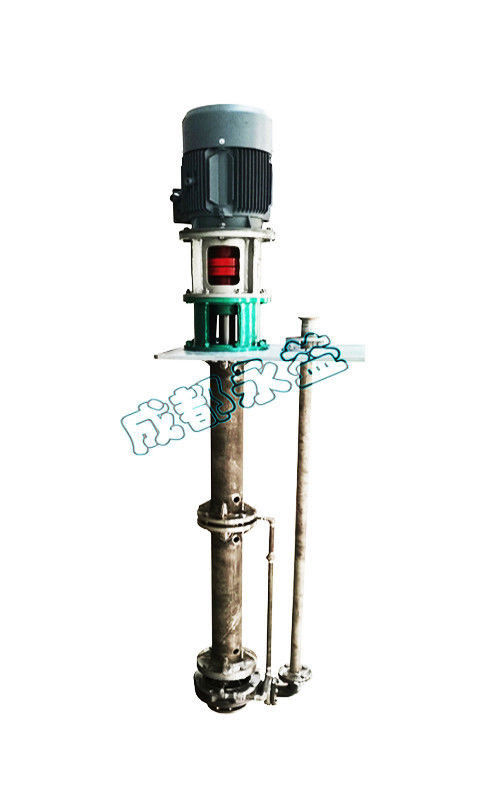

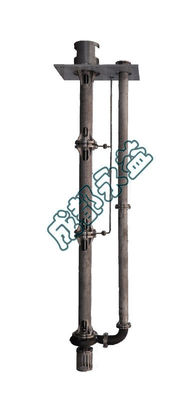

Vertical Submersible Chemical Pump , Electric Semi Submersible Pump Single Suction
Performance Data
| Model | ZAL-seriesvertical submerged centrifugal pump |
| Discharge Size | 32mm~200mm |
| Inlet Size | 50mm~250mm |
| Capacity | 5～500 m³/h |
| Head | 10 ~ 70m |
| Maximal Efficiency | 70% |
| NPSH | 1.4m~4.5m |
| Allowable Max Motor Power | 315 kw |
| Seal Type | packing seal |
Technical Parameter
|
Model |
rotate speed n=2950r/min |
rotate speed n=1475r/min |
||||||
|
Flow (m3/h) |
Head (m) |
ρ=1 |
ρ=1.35 |
Flow (m3/h) |
Head |
ρ=1 |
ρ=1.35 |
|
|
Motor power |
Motor power |
|||||||
|
ZAL25-200 |
7.5-11.5 |
28-49 |
2.2-5.5 |
3-7.5 |
4-5.8 |
6.5-12 |
0.75-1.1 |
0.75-1.1 |
|
ZAL25-250 |
10.8-12.5 |
46-78 |
5.5-11 |
7.5-15 |
5.4-6.3 |
11.5-19.5 |
1.1-1.5 |
1.5-2.2 |
|
ZAL25-315 |
15.3-20 |
74-130 |
15-30 |
22-37 |
7.6-10 |
18.5-32 |
2.2-3 |
2.2-4 |
|
ZAL40-160 |
20-28 |
16-33 |
2.2-5.5 |
3-7.5 |
9.5-14 |
4.5-8 |
0.75-1.1 |
0.75-1.1 |
|
ZAL40-200 |
18-29 |
20-53 |
4-11 |
5.5-15 |
9.5-14.5 |
7-13 |
1.1-1.5 |
1.1-2.2 |
|
ZAL40-250 |
21-32 |
47-78 |
7.5-18.5 |
11-22 |
10.5-16 |
11-19.5 |
1.1-3 |
1.5-4 |
|
ZAL40-315 |
29-42 |
61-115 |
15-37 |
22-45 |
15-21 |
15-29 |
3-5.5 |
4-7.5 |
|
ZAL50-160 |
31-50 |
17-34 |
3-11 |
4-15 |
16.5-25 |
4-8.4 |
0.75-1.5 |
1.1-2.2 |
|
ZAL50-200 |
43-62 |
28-82 |
7.5-18.5 |
11-22 |
22-31 |
7-13 |
1.1-3 |
1.5-3 |
|
ZAL50-250 |
50-70 |
45-82 |
15-30 |
18.5-37 |
26-35 |
11-20 |
2.2-4 |
3-5.5 |
|
ZAL50-315 |
57-87 |
57-115 |
22-55 |
30-75 |
30-44 |
14-28 |
3-11 |
4-11 |
|
ZAL50-400 |
60-82 |
102-194 |
45-110 |
75-160 |
30-41 |
25-48 |
7.5-15 |
11-22 |
|
ZAL80-160 |
66-94 |
17-32 |
5.5-15 |
7.5-18.5 |
34-47 |
4-8 |
1.1-2.2 |
1.1-3 |
|
ZAL80-200 |
70-103 |
30-54 |
11-30 |
15-37 |
36-51 |
7.5-12.5 |
1.5-4 |
2.2-5.5 |
|
ZAL80-250 |
87-127 |
45-82 |
22-45 |
30-75 |
46-64 |
11-20 |
3-7.5 |
4-11 |
|
ZAL40-315 |
90-141 |
74-127 |
37-90 |
45-132 |
45-70 |
18-33 |
5.5-15 |
7.5-18.5 |
|
ZAL80-400 |
116-171 |
95-187 |
75-160 |
90-220 |
53-85 |
25-46 |
11-22 |
15-30 |
|
ZAL100-160 |
110-162 |
12-29 |
7.5-22 |
11-30 |
55-81 |
3-7.2 |
1.1-3 |
1.5-4 |
|
ZAL100-200 |
135-193 |
26-50 |
18.5-45 |
30-55 |
70-95 |
6-12.5 |
3-5.5 |
3-7.5 |
|
ZAL100-250 |
170-230 |
44-79 |
37-75 |
45-90 |
90-115 |
10-20 |
5.5-11 |
7.5-15 |
|
ZAL100-315 |
170-250 |
71-126 |
75-132 |
75-200 |
86-125 |
17.5-31 |
11-18.5 |
11-30 |
|
ZAL100-400 |
224-300 |
105-194 |
110-250 |
160-355 |
115-150 |
26-48 |
15-37 |
22-45 |
|
ZAL150-250 |
310-190 |
40-74 |
55-110 |
75-160 |
155-195 |
10-18.5 |
11-15 |
11-22 |
|
ZAL150-315 |
310-442 |
68-125 |
90-250 |
132-355 |
150-220 |
17-32.5 |
15-30 |
18.5-45 |
|
ZAL150-400 |
400-520 |
113-502 |
200-400 |
280-500 |
200-260 |
28-51 |
30-55 |
37-75 |
|
ZAL150-500 |
|
|
|
|
208-300 |
45-77 |
45-110 |
75-132 |
|
ZAL150-630 |
|
|
|
|
220-360 |
60-115 |
75-200 |
110-250 |
|
ZAL200-250 |
470-610 |
32-72 |
75-160 |
90-220 |
240-305 |
8-17.5 |
11-22 |
15-30 |
|
ZAL200-315 |
480-710 |
65-122 |
132-355 |
185-450 |
350-350 |
15-30 |
18.5-45 |
22-55 |
|
ZAL200-500 |
|
|
|
|
330-495 |
48-84 |
75-185 |
90-220 |
|
ZAL200-560 |
|
|
|
|
350-540 |
62-105 |
110-250 |
132-355 |
|
ZAL200-630 |
|
|
|
|
372-580 |
75-132 |
132-315 |
185-450 |
|
ZAL250-315 |
|
|
|
|
424-545 |
13-27 |
30-55 |
37-75 |
|
ZAL250-400 |
|
|
|
|
500-660 |
24-49 |
53-132 |
75-160 |
|
ZAL250-500 |
|
|
|
|
630-800 |
42-82 |
110-280 |
160-400 |
|
ZAL250-560 |
|
|
|
|
665-860 |
57-106 |
160-400 |
250-560 |
|
ZAL300-400 |
|
|
|
|
780-1050 |
26-48 |
90-200 |
132-280 |
|
ZAL300-500 |
|
|
|
|
870-1240 |
42-78 |
160-450 |
250-560 |
|
ZAL300-560 |
|
|
|
|
950-1340 |
56-104 |
280-560 |
400-800 |
|
ZAL300-630 |
|
|
|
|
950-1450 |
75-132 |
355-1000 |
500-1400 |
|
ZAL300-500 |
|
|
|
|
1300-1870 |
38-74 |
220-630 |
315-1000 |
|
ZAL300-560 |
|
|
|
|
1500-2040 |
54-98 |
355-900 |
500-1250 |
Material Choose
We offer different kinds of anti-abrasive and anti-corrosive high-grade alloy materials to customers, like 304, 316, 316L, 904L, FCr30, CD4MCu, DTCr30, F33, 2507, A33, hastelloy, K alloy, 20# alloy and Lewmet85＃ alloy
Structure
Application
In chemical industry, metallurgy, power industry, paper making industry, food industry, pharmaceutical industry and synthetic fibre industry, ZAL-series pump can be used to convey corrosive and abrasive liquid medium (solid content is no more than 15% ).
Performance Curve
Installation Dimension
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
