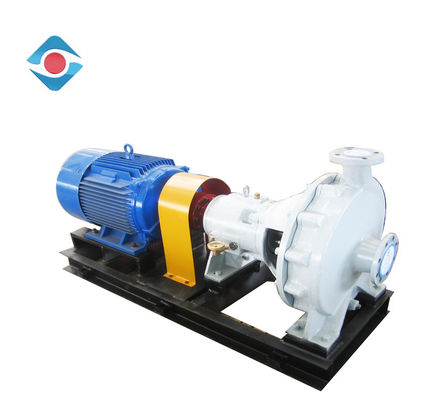

220V Single Phase Back Pullout Horizontal Chemical Pumps with Sealing Fluid System Low Noise

220V Single Phase Back Pullout Horizontal Chemical Pumps with Sealing Fluid System Low Noise

Specification Data

Mainly Usage

1. Inorganic and organic acids of various temperatures and concentrations
2. Alkaline solution of various temperature and concentration
3. Salt solution of various temperature and concentration
4. Various liquid petrochemical products, organic compounds, corrosive raw materials and products

Structure

Feature

• The impeller has two types including standard closed impeller and open impeller. The closed impeller has strong adaptability to working conditions and has the feature of high efficiency and low cavitation. The open impeller is suitable for conveying vapor-liquid and solid-liquid two-phase media.
• Horizontal suction and vertical discharge, the flange is subjected to a large pipe load. Flanges follow the GB, DIN, ANSI, HG standards. The suction flange and the discharge flange usually with the same pressure rating.
• The replaceable pump body and impeller ring protect the wearable area. According to the working conditions, the axial force can be balanced by the front ring or the ring with balance hole. The residual axial force is absorbed by the thrust bearing.

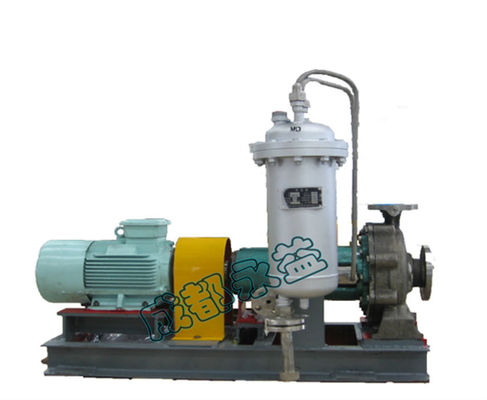

• The pump cover can be cooled and insulated. The shaft seal can be filled with coolant, flushing fluid and sealing fluid. The standard pipe is designed according to the API.

​

Overcurrent Parts Material

• F33: special duplex stainless steel F33 invented by our company has better wear resistance than  CD4MCu and FCr30.

• Other Material: 304, 316, 316L, 904L, FCr30, CD4MCu, DTCr30, F33, 2507, A33, Hastelloy, K alloy, 20# alloy, LEWMET85# alloy, etc.
