Metal Frame Mining Small Slurry Pump Paper Pulp Pump/ Centrifugal Mortar Pump Wear Resistant

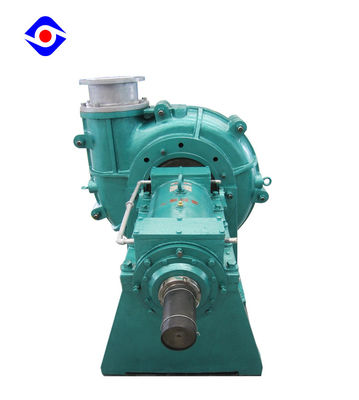

Large Image : Metal Frame Mining Small Slurry Pump Paper Pulp Pump/ Centrifugal Mortar Pump Wear Resistant

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	Chengdu Yongyi
Certification:	ISO9001
Model Number:	ZJ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD500-5000/set
Packaging Details:	free fumigation export wooden box packaging
Delivery Time:	25 working days after receiveing advance payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Capacity:	Max 800l/s	Head:	Max 130 M, 430ft
Warranty:	One Year	Material:	High Chrome Alloy And Rubber
Solids Handle:	Up To 3.5''	Fuel:	Motor
High Light:	horizontal centrifugal slurry pump , industrial sludge pump

Metal Frame Mining Small Slurry Pump Paper Pulp Pump/ Centrifugal Mortar Pump Wear Resistant

Product Description

Unique wear-resistant design (structure, material), long service life of flow parts
Wide performance range, high efficiency
Different material to meet different working condition
Easy to maintain
Provide pump model selection service, free design

Details

1. Support frame:main part for supporting flow parts,connect with bearing plates on the two sides to form bearing assembly.
2. Pump casing:connect with support frame by 6 bolts,can rotate in 60°gap according to needs,impeller,protecting plate,pump cover installed inside,material is abrasion resistant,the impeller,pump casing and pump cover of this pump are same as 6PNL-30 vertical mud sand pump.
3. Split type pump casing with long pump cover(flat pump cover and long pump cover).one body pump casing is available also.
4. Shaft seal box:installed outside of protecting plate,seal assembly installed in it,it joints shaft sleeve,lubricating it with grease through grease fitting to prolong life time.

Metal Frame Mining Small Slurry Pump Paper Pulp Pump/ Centrifugal Mortar Pump Wear Resistant

Application

Slurry pumps are suitable for transferring high-abrasive slurries containing solid particles. Our slurry pumps are widely used in industries, including metallurgy, mining, coal, power generation and environmental protection.

Metal Frame Mining Small Slurry Pump Paper Pulp Pump/ Centrifugal Mortar Pump Wear Resistant
