Anti - Abrasive Split Case Horizontal Slurry Pump , Centrifugal Mining Mud Sewage Sludge Pump

China Anti - Abrasive Split Case Horizontal Slurry Pump , Centrifugal Mining Mud Sewage Sludge Pump supplier
Anti - Abrasive Split Case Horizontal Slurry Pump , Centrifugal Mining Mud Sewage Sludge Pump supplier Anti - Abrasive Split Case Horizontal Slurry Pump , Centrifugal Mining Mud Sewage Sludge Pump supplier

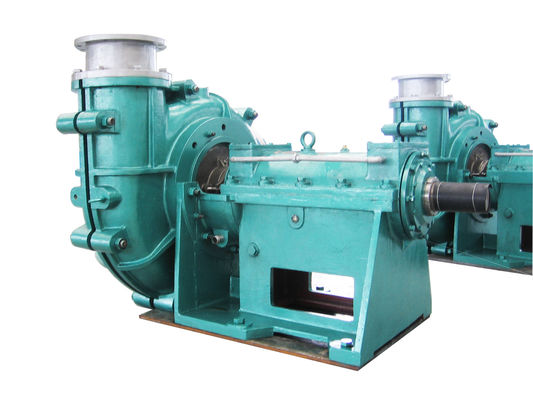

Large Image :  Anti - Abrasive Split Case Horizontal Slurry Pump , Centrifugal Mining Mud Sewage Sludge Pump

Product Details:

Place of Origin: Sichuan, China
Brand Name: Chengdu Yongyi
Certification: ISO9001
Model Number: ZJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD500-5000/set
Packaging Details: free fumigation export wooden box packaging
Delivery Time: 25 working days after receiveing advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Max Flow: 3000m³/h Min Flow: 4m³/h
Man Head: 130 Min Head: 10 M
Pressure: High Pressure Warranty: One Year
Voltage: 380V Or Higher Type: Heavy Duty
High Light:

horizontal centrifugal slurry pump

,

industrial sludge pump

Anti - Abrasive Split Case Horizontal Slurry Pump , Centrifugal Mining Mud Sewage Sludge Pump



Product Description

ZJ-series is single stage single-suction cantilever centrifugal slurry pump. ZJ-series pumps are in accordance with the theory of two-phase fluids and they are designed according to the principle of minimizing the total loss. Geometrical shape of its flow passage components is suitable for flow condition of medium. In this way, the hydraulic loss among parts where eddy and impacting occur is reduced so that abrasion of flow passage components is reduced; water efficiency is increased; running noises and vibration are reduced; High-alloy cast iron, which has high wear resistance, corrosion resistance and impact resistance, is used for flow passage componentsto improve service life.

The types of transmission include direct connection, belt, hydraulic fluid power and frequency conversion. According todifferent connections like seriesconnection andparallel connection, transmission type can be changed.



Advantanges



1) High concentration, volume concentration reach to 60%, weight concentration reach to 70%;

2) Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 130m, and can be used in series to satisfy much higher head requirements;

3) High flow rate capacity: can be reached 3000m3/h;

4) Good passing ability:gravel pump max passing particles size is 20mm;

5) Diameter size:200mm~470mm

6) High corrosion, abrasion resistance widely material optional: metal flow parts including:A05 (Cr27Mo), A33(Cr30MoNi), A49(Cr30MoNiCu) and rubber material etc. PH value 1.0-14.

7) Easy operation, lower noise.



Technical Range



Anti - Abrasive Split Case Horizontal Slurry Pump , Centrifugal Mining Mud Sewage Sludge Pump Model: ZJ-series horizontal slurry pump
Discharge Size: 20mm~350mm
Inlet Size: 32mm~400mm
Capacity: 4 ~ 3000 m³/h
Head: 10 ~ 130 m
Maximal Efficiency: 70%
NPSH: 0m~3m
Allowable Max Motor Power: 315 kw
Impeller Allowed Max Particle Size: 20 mm
Vanes: 5/6 Seal Type: step-down dynamic seal
Type: closed/ half open Pump Weight:up to 3000kg
Material:Metal (according to working conditions ) RPM: 1450 r/min




































Applications


MINERAL PROCESSING

Rigid structure design, wear-resistant materials, low running speed. The pump is suitable for transfering rough minerals and tailings.

SAND WASHING & SAND PLANT

a variety of abrasion and corrosion resistant materials are available.

COAL-WASHING

Widely used to transport highly abrasive heavy media and concentrated downstream media.



Details

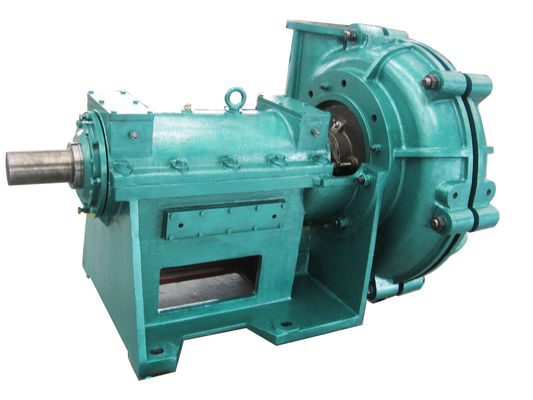

Anti - Abrasive Split Case Horizontal Slurry Pump , Centrifugal Mining Mud Sewage Sludge Pump

Anti - Abrasive Split Case Horizontal Slurry Pump , Centrifugal Mining Mud Sewage Sludge Pump
