Product Details:
Payment & Shipping Terms:
|
| Theory: | Centrifugal Pump | Max Output: | 34000LPM |
|---|---|---|---|
| Max Head: | 300m | Warranty: | 1 Year |
| Power: | Electric | Electrical: | 3Ph 220/380V 50Hz |
| High Light: | centrifugal chemical pump,pumps used in chemical industry |
||

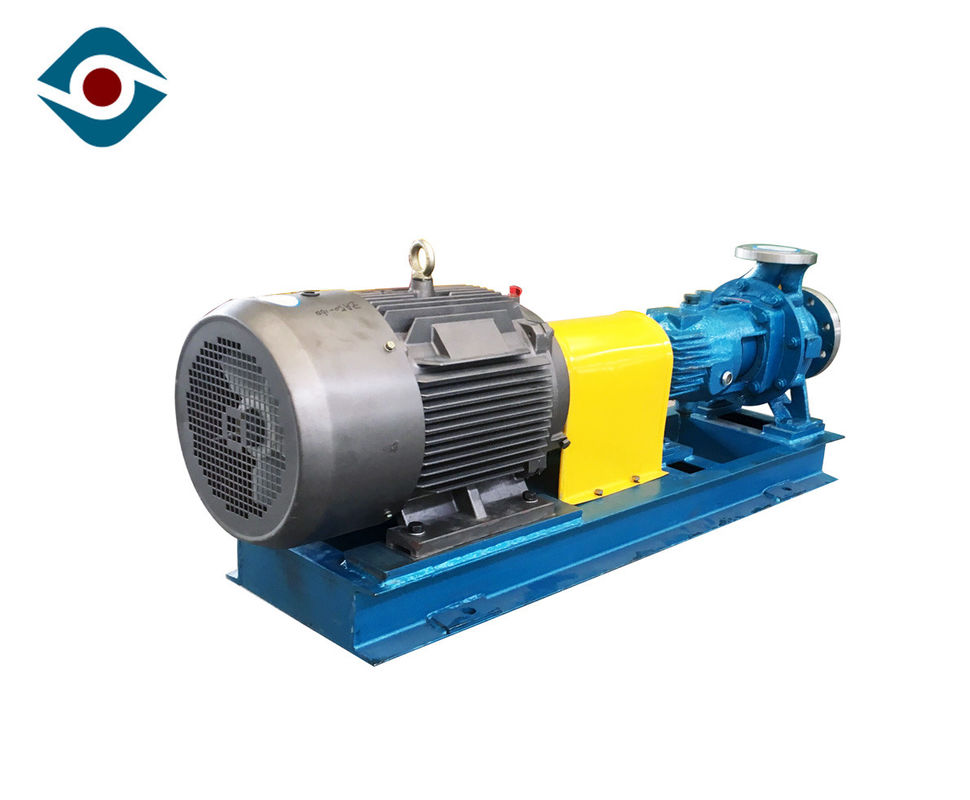

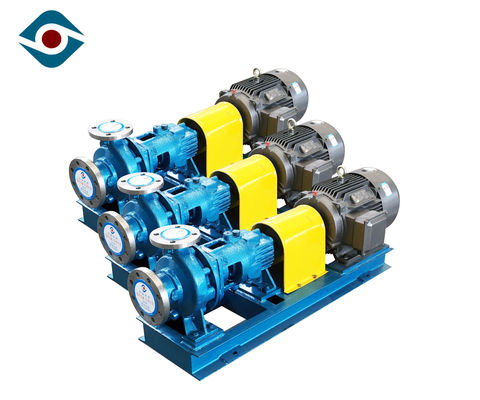

Big Flow Leak-proof Horizontal Chemical Centrifugal Pump, Circulation Sea Water Pump
Overview
Because the chemical industry places high demands on pumps, requires uninterrupted production, and guarantees of safety and environmental regulations, it is very important to choose a pump that is right for chemical application. Our company always focusing on workplace safety and environmental regulations, is devoted to meeting all the customers' requirements.
.
Whether you are delivering the most dangerous chemicals in the industry, we can provide you with pumps that meet your requirements. We supply various pumps, including centrifugal pump and reciprocating pumps for many different chemical processes with long-term reliability. In addition, we offer a wide range of corrosion-resistant materials (metal and non-metal) to handle fluids most safely during chemical processing.
Performance Range
|
Discharge Size: 32mm~200mm |
Inlet Size: 50mm~250mm |
|
Capacity: 4～2600m³/h |
Head: 2～300m |
|
Maximal Efficiency: 70% |
NPSH: 1.4m~3.5m |
|
Allowable Max Motor Power: 160kw |
Seal Type: mechanical seal |
Application
|
1. Ionic membrane caustic soda production |
|
2. Acid pickling process |
|
3. Painting process |
|
4. Electroplating industry |
|
5. Pesticide industry |
| 6. Papermaking |
Structure Drawings
| 102.00 | pump body | 161.00 | pump cover | 183.00 | support foot |
| 210.00 | shaft | 230.00 | impeller | 320.00 | antifriction bearing |
| 320.01 | antifriction bearing | 330.00 | bearing bracket | 360.00 | bearing cover |
| 360.01 | bearing cover | 400.00 | flat gasket | 400.01 | flat gasket |
| 412.00 | O ring | 412.01 | O ring | 433.00 | mechanical seal |
| 433.01 | mechanical seal | 471.00 | sealing cover | 471.01 | sealing cover |
| 502.00 | casing wear ring | 502.01 | casing wear ring | 502.02 | casing wear ring |
| 503.00 | impeller wear ring | 503.01 | impeller wear ring | 507.00 | deflrctor |
| 507.01 | deflector | 524.00 | sleeve | 524.01 | sleeve |
| 638.00 | constant-level-oiler | 644.00 | lubricating ring | 673.00 | vent filter |
| 710.00 | pipe | 915.00 | threaded insert | 922.00 | Impeller nut |
| 923.00 | bearing nut | 932.00 | circlip |
