| Rated Flow: | 2040 M3 / H | Min Flow: | 4m3 / H |
|---|---|---|---|
| Head Range: | 2-300m | Usage: | All Chemical Process Requirements |
| Speed: | 2950r/min、1450r/min | Caliber: | DN 25-400mm |
| High Light: | centrifugal chemical pump,pumps used in chemical industry |
||

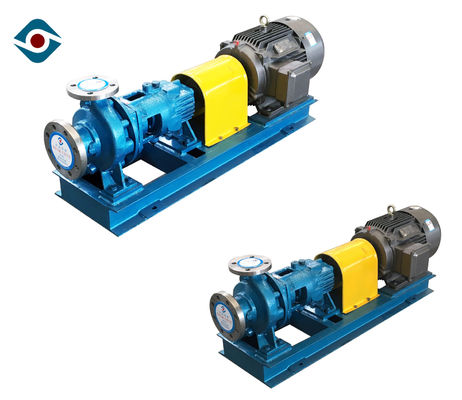

Cast Iron High Efficiency Horizontal Chemical Pumps Single Stage Explosion Proof Motor
Main Features
> Compact structure, small volume, beautiful outlook
> Easy to mount
> Stable working, low noise, high concentricity of components
> No leakage
> Easy to maintaince
Specification
| Discharge Size | Inlet Size | Capacity | Head | NPSH |
| 32mm~200mm | 50mm~250mm | 4～2600m³/h | 2～300m | 1.4m~3.5m |
Details
Pump Structure
Pump seal a variety of structural forms, the most commonly used is built-in unbalanced single-ended mechanical seal. According to the working conditions, can also use the external, unbalanced or double-sided mechanical seal. Flushing cooling method can be flushing or flushing, you can also install additional sealing device. On the suspended particles or less corrosive media, can also choose to use soft packing seal (flushing or flushing).
Drawings
|
102.00 |
pump body |
161.00 |
pump cover |
183.00 |
Support foot |
|
210.00 |
shaft |
230.00 |
impeller |
320.00 |
Antifriction bearing |
|
320.01 |
Antifriction bearing |
330.00 |
Bearing bracket |
360.00 |
Bearing cover |
|
360.01 |
Bearing cover |
400.00 |
Flat gasket |
400.01 |
Flat gasket |
|
412.00 |
O ring |
412.01 |
O ring |
433.00 |
Mechanical seal |
|
433.01 |
Mechanical seal |
471.00 |
Sealing cover |
471.01 |
Sealing cover |
|
502.00 |
Casing wear ring |
502.01 |
Casing wear ring |
502.02 |
Casing wear ring |
|
503.00 |
Impeller wear ring |
503.01 |
Impeller wear ring |
507.00 |
deflrctor |
|
507.01 |
deflector |
524.00 |
sleeve |
524.01 |
sleeve |
|
638.00 |
Constant-level-oiler |
644.00 |
Lubricating ring |
673.00 |
Vent filter |
|
710.00 |
pipe |
915.00 |
Threaded insert |
922.00 |
Impeller nut |
|
923.00 |
Bearing nut |
932.00 |
circlip |
Working Medium and Application
Inorganic and organic acids of various temperatures and concentrations
Alkaline solution of various temperature and concentration
Salt solution of various temperature and concentration
Various liquid petrochemical products, organic compounds, corrosive raw materials and products
Chemistry
Food processing
Paper work
Sea water station
Environmental equipment
