Centrifugal Vertical Submersible Pump Single Phase Multistage For Acidic Slurry

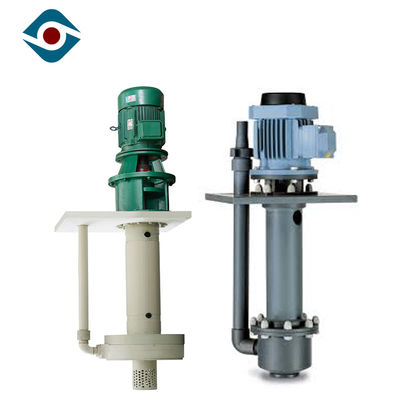

Large Image : Centrifugal Vertical Submersible Pump Single Phase Multistage For Acidic Slurry

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	Chengdu Yongyi
Certification:	ISO9001
Model Number:	ZAL

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 500-5000/set
Packaging Details:	free fumigation export wooden box packaging
Delivery Time:	25 working days after receiveing advance payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability:	300 Sets/Month

Contact Now

Detailed Product Description

Theory:	Centrifugal	Flow:	5-500m3/h
Head:	10-70m	Warranty:	1 Year
Frequency:	50 /60 Hz	Pressure:	High Pressure
Fuel:	Electric	Voltage:	220V/380V
High Light:	vertical submersible centrifugal pumps , vertical long shaft pump

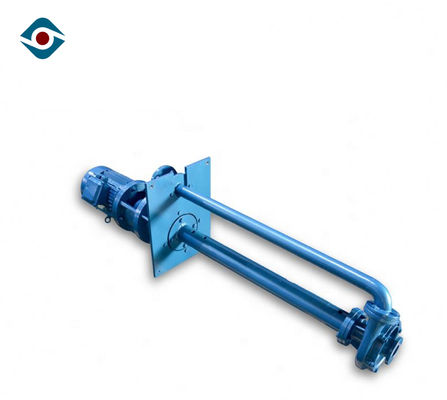

Centrifugal Vertical Submersible Pump Single Phase Multistage For Acidic Slurry

Description

ZAL-series pump is single stage, single-suction, vertical submerged centrifugal pump with Long shaft. This pump is designed according to standard IS05199. Pump shaft is supported by sliding bearings in pump cover and sliding bearing body; upper bearing adopts anti-abrasive bearing and lubricated by lithium base grease.

Technical Data

Model	ZAL-seriesvertical submerged centrifugal pump
Discharge Size	32mm~200mm
Inlet Size	50mm~250mm
Capacity	5～500 m³/h
Head	10 ~ 70m
Maximal Efficiency	70%
NPSH	1.4m~4.5m
Allowable Max Motor Power	315 kw
Seal Type	packing seal

Technical Parameter

Model	rotate speed n=2950r/min				rotate speed n=1475r/min
	Flow (m3/h)	Head (m)	ρ=1	ρ=1.35	Flow (m3/h)	Head (m)	ρ=1	ρ=1.35
	Flow (m3/h)	Head (m)	Motor power (KW)		Flow (m3/h)	Head (m)	Motor power (KW)
ZAL25-200	7.5-11.5	28-49	2.2-5.5	3-7.5	4-5.8	6.5-12	0.75-1.1	0.75-1.1
ZAL25-250	10.8-12.5	46-78	5.5-11	7.5-15	5.4-6.3	11.5-19.5	1.1-1.5	1.5-2.2
ZAL25-315	15.3-20	74-130	15-30	22-37	7.6-10	18.5-32	2.2-3	2.2-4
ZAL40-160	20-28	16-33	2.2-5.5	3-7.5	9.5-14	4.5-8	0.75-1.1	0.75-1.1
ZAL40-200	18-29	20-53	4-11	5.5-15	9.5-14.5	7-13	1.1-1.5	1.1-2.2
ZAL40-250	21-32	47-78	7.5-18.5	11-22	10.5-16	11-19.5	1.1-3	1.5-4
ZAL40-315	29-42	61-115	15-37	22-45	15-21	15-29	3-5.5	4-7.5
ZAL50-160	31-50	17-34	3-11	4-15	16.5-25	4-8.4	0.75-1.5	1.1-2.2
ZAL50-200	43-62	28-82	7.5-18.5	11-22	22-31	7-13	1.1-3	1.5-3
ZAL50-250	50-70	45-82	15-30	18.5-37	26-35	11-20	2.2-4	3-5.5
ZAL50-315	57-87	57-115	22-55	30-75	30-44	14-28	3-11	4-11
ZAL50-400	60-82	102-194	45-110	75-160	30-41	25-48	7.5-15	11-22
ZAL80-160	66-94	17-32	5.5-15	7.5-18.5	34-47	4-8	1.1-2.2	1.1-3
ZAL80-200	70-103	30-54	11-30	15-37	36-51	7.5-12.5	1.5-4	2.2-5.5
ZAL80-250	87-127	45-82	22-45	30-75	46-64	11-20	3-7.5	4-11
ZAL40-315	90-141	74-127	37-90	45-132	45-70	18-33	5.5-15	7.5-18.5
ZAL80-400	116-171	95-187	75-160	90-220	53-85	25-46	11-22	15-30
ZAL100-160	110-162	12-29	7.5-22	11-30	55-81	3-7.2	1.1-3	1.5-4
ZAL100-200	135-193	26-50	18.5-45	30-55	70-95	6-12.5	3-5.5	3-7.5
ZAL100-250	170-230	44-79	37-75	45-90	90-115	10-20	5.5-11	7.5-15
ZAL100-315	170-250	71-126	75-132	75-200	86-125	17.5-31	11-18.5	11-30
ZAL100-400	224-300	105-194	110-250	160-355	115-150	26-48	15-37	22-45
ZAL150-250	310-190	40-74	55-110	75-160	155-195	10-18.5	11-15	11-22
ZAL150-315	310-442	68-125	90-250	132-355	150-220	17-32.5	15-30	18.5-45
ZAL150-400	400-520	113-502	200-400	280-500	200-260	28-51	30-55	37-75
ZAL150-500					208-300	45-77	45-110	75-132
ZAL150-630					220-360	60-115	75-200	110-250
ZAL200-250	470-610	32-72	75-160	90-220	240-305	8-17.5	11-22	15-30
ZAL200-315	480-710	65-122	132-355	185-450	350-350	15-30	18.5-45	22-55
ZAL200-500					330-495	48-84	75-185	90-220
ZAL200-560					350-540	62-105	110-250	132-355
ZAL200-630					372-580	75-132	132-315	185-450
ZAL250-315					424-545	13-27	30-55	37-75
ZAL250-400					500-660	24-49	53-132	75-160
ZAL250-500					630-800	42-82	110-280	160-400
ZAL250-560					665-860	57-106	160-400	250-560
ZAL300-400					780-1050	26-48	90-200	132-280
ZAL300-500					870-1240	42-78	160-450	250-560
ZAL300-560					950-1340	56-104	280-560	400-800
ZAL300-630					950-1450	75-132	355-1000	500-1400
ZAL300-500					1300-1870	38-74	220-630	315-1000
ZAL300-560					1500-2040	54-98	355-900	500-1250

Features

Structure	The shaft structure is safe and reliable
Rotor	Rotor components can be adjusted axially
Lubrication	Sliding bearing with external lubrication
Pump body	Balanced radial force with double volute pump body
