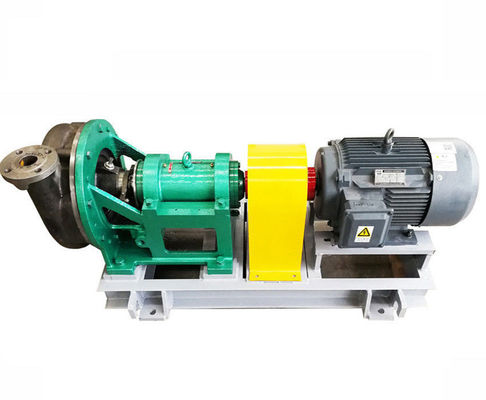

Electric Stainless Steel Horizontal Centrifugal Pump High Temperature Resistant

China Electric Stainless Steel Horizontal Centrifugal Pump High Temperature Resistant supplier
Electric Stainless Steel Horizontal Centrifugal Pump High Temperature Resistant supplier Electric Stainless Steel Horizontal Centrifugal Pump High Temperature Resistant supplier

Large Image :  Electric Stainless Steel Horizontal Centrifugal Pump High Temperature Resistant

Product Details:

Place of Origin: Sichuan, China
Brand Name: Chengdu Yongyi
Certification: ISO9001
Model Number: WD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 500-5000/set
Packaging Details: free fumigation export wooden box packaging
Delivery Time: 25 working days after receiveing advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Theory: Centrifugal Pump Max Flow: 1000m3/h
Max Head: 120m Brand: Chengdu Yongyi
Color: Customized OEM: Welcome
Structure: Single-stage Pump Fuel: Electric
Product Name: Electric Horizontal High Temperature Resistant Stainless Steel Centrifugal Pump
High Light:

horizontal split case centrifugal pump

,

industrial centrifugal pumps

Electric Stainless Steel Horizontal Centrifugal Pump High Temperature Resistant



Product Description


1. Horizontal corrosion-resistant centrifugal pumps, with spacious impeller flow channel and superior hydraulic performance.

2. Back shroud of impeller is equipped with back blade, which can reduce media leakage.

3. Variable types of shaft seal (including mechanical seal, dynamic seal + packing seal, dynamic seal + K-type seal) are adopted to meet the shaft sealing requirements for carrying variable media

Structure Feature



Radial split, rear door, single stage single suction volute centrifugal pump



Impeller: open impeller, semi-open impeller, vortex impeller and closed impeller.



The closed impeller is designed as a wide-flow impeller according to the principle of multi-phase flow, which is beneficial to the passage of solid medium without clogging



the impeller is designed with back blades

the front back blades are used to prevent the medium from flowing back toward the pump inlet

the blades are used to reduce the axial leakage pressure and balance the axial force

the impeller is mounted on the shaft with a conical fit for easy assembly and disassembly

the impeller is fastened with impeller nut and locking screw



Application



Organic and inorganic acids: nitric acid, sulfuric acid, hydrochloric acid and phosphoric acid.
Sodium hydroxide or sodium carbonate, etc. alkaline solution.
Organic compounds and other corrosive raw materials and products.



Technical Parameter



model

Clean Water Performance

flow

(m3/h)

head

(m)

speed

(r/min)

maximum

efficiency

(%)

NPSH

(NPSHr)

m

pump head weight

KG

shaft component

40WD-250

8-20

15-28

1450

39

0.6

141

45

40WD-310

8-40

23-42

1450

45

1

257

55

40WD-350

8-45

35-54

1450

37

1

271

55

50WD-250

10-30

15-28

1450

40

0.7

146

45

50WD-310

15-60

25-42

1450

45

1.1

262

55

50WD-350

15-70

35-54

1450

50

1.1

286

55

50WD-400

20-75

50-75

1450

45

1.1

483

70

65WD-250

30-70

15-28

1450

48

1.1

149

45

65WD-310

30-90

25-40

1450

57

1.4

274

55

65WD-350

40-100

35-54

1450

59

1.5

280

55

65WD-400

50-120

45-75

1450

55

1.7

495

70

65WD-450

50-120

70-95

1450

52

1.7

524

70

80WD-250

70-100

15-25

1450

61

1.5

153

45

80WD-310

70-120

25-40

1450

62

1.7

288

55

80WD-350

70-160

35-52

1450

65

2.0

295

55

80WD-400

70-160

50-75

1450

62

2.0

500

70

80WD-450

70-160

70-95

1450

60

2.0

539

70

100WD-310

100-150

20-38

1450

65

1.9

293

55

100WD-350

100-220

35-50

1450

65

2.5

299

55

100WD-400

100-220

40-72

1450

65

2.5

529

70

125WD-310

120-260

18-36

1450

67

2.8

304

55

125WD-350

120-300

35-50

1450

68

3.2

307

55

125WD-400

140-350

45-70

1450

70

3.4

559

70

125WD-450

150-360

65-90

1450

67

3.6

741

80

150WD-310

200-400

18-35

1450

72

3.8

332

55

150WD-350

200-450

15-48

1450

75

4.2

333

55

150WD-400

200-450

40-65

1450

73

4.2

597

70

150WD-450

200-500

60-80

1450

67

4.5

753

80

200WD-350

300-600

28-47

1450

79

5

583

70

200WD-430

300-650

50-65

1450

75

5.2

765

80

250WD-350

400-900

26-45

1450

79

6.5

850

80

250WD-430

400-900

50-61

1450

75

6.5

910

90



Working Specification



Flow: 8-1000m3/h

Head: 15-120m

Rotate Speed:<1500rpm

Pressure:1.6MPa

Temperature:-50℃-130℃

Motoe Power: 5.5-315KW



Structure



Electric Stainless Steel Horizontal Centrifugal Pump High Temperature Resistant



*1

Locking screw

*8

Vice impeller chamber

15

Front bearing cap

22

Oil pan

*29

Sleeve

2

Gasket

9

O-ring

*16

Front bearing

23

Adjustment nut

30

Water seal ring

*3

Impeller nut

*10

Vice impeller

17

Bearing body

24

Adjustment screw

31

Filler

4

O-ring

*11

Packing chamber

18

Bearing bracket

25

Bearing body bracket

32

O-ring

*5

Impeller

12

O-ring

*19

Rear bearing

*26

axis

*33

keys

*6

Pump body

13

Rinse water nozzle

20

Rear bearing cover

27

Shield cover





7

O-ring

14

Water retaining plate

21

Key

28

Packing gland

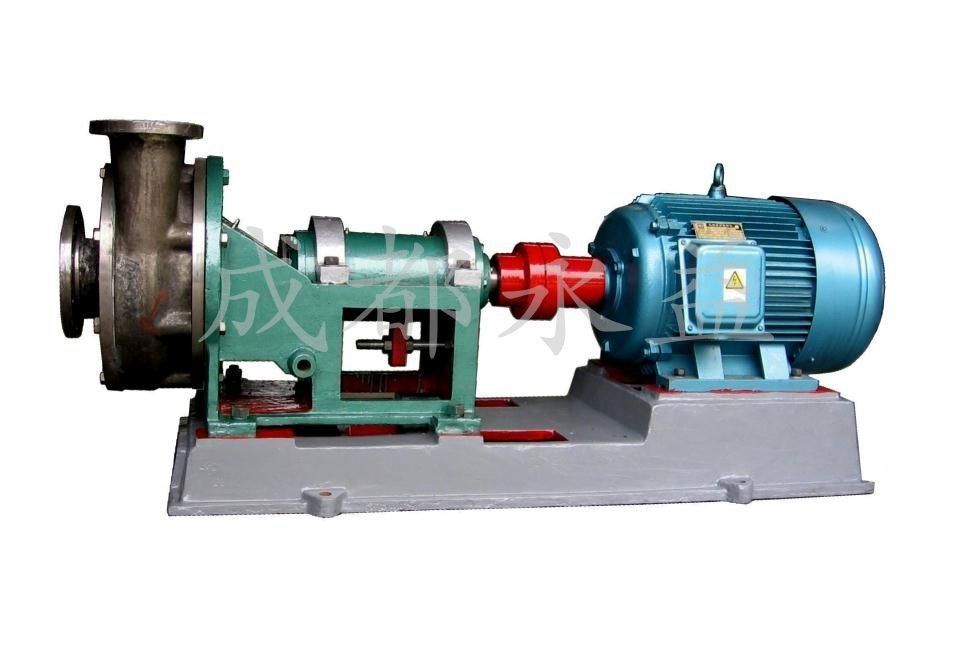

Product Picture

Electric Stainless Steel Horizontal Centrifugal Pump High Temperature Resistant



Procedure



Electric Stainless Steel Horizontal Centrifugal Pump High Temperature Resistant


Packing and Shipping



OEM

Acceptable

MOQ

1 Set

Price

Negotiable

Port

Shanghai

Payment

T/T, L/C, Western Union

Packaging

Export wood case or as customer’s request

Delivery time

40 days according to the order quantity

Shipping

By sea, by air, by train
