Product Details:
Payment & Shipping Terms:
|
Theory: | Mix Flow Pump | Max Flow: | 6500m3/h |
---|---|---|---|
Max Head: | 25m | PH: | 4.5-8 |
Flange: | Customized | Shaft Sealing: | Mechanical Seal And Packing |
Voltage: | 380V/50Hz/3Phase | Condition: | New |
Dimension(l*w*h): | As Model | ||
Highlight: | mixed flow centrifugal pump,mixed flow pump |
High Performance Horizontal Mixed Flow Pump , FGD Centrifugal Pump Volute Design
Product Description
YYTL-series desulphurization pumps are designed according to Desulfurization Project Technical Specification of Thermal Power Plant, based on features of flue gas desulphurization system and advantages of like products
They are widely used in transferring limestone slurry and gypsum slurry.
The pumps have advantages of high efficiency, safe and stable operation, convenient maintenance, long service life and so on.
Technical Parameter
Model |
flow (m³/h) |
Head (m) |
Speed (r/min) |
Maximum efficiency (%) |
NPSH(NPSHr) m |
Allowable maximum motor power(KW) |
Net weight (kg) |
350YYTL-24 |
1280 |
25.2 |
740 |
75 |
6.5 |
200 |
3200 |
1600 |
24 |
80 |
|||||
1920 |
22.3 |
81 |
|||||
350YYTL-10 |
640 |
11.2 |
490 |
72 |
3.4 |
55 |
3200 |
960 |
10.2 |
78 |
|||||
1060 |
9.1 |
79 |
|||||
400YYTL-24 |
1760 |
25.5 |
740 |
80 |
6.8 |
280 |
3500 |
2200 |
24 |
82 |
|||||
2640 |
22 |
83 |
|||||
400YYTL-10 |
1160 |
11.3 |
490 |
78 |
3.2 |
75 |
3500 |
1450 |
10.5 |
80 |
|||||
1740 |
9.4 |
81 |
|||||
500YYTL-24 |
2800 |
25.8 |
590 |
82 |
7.1 |
450 |
4500 |
3500 |
25 |
85 |
|||||
4200 |
21.6 |
86 |
|||||
500YYTL-16 |
2320 |
18.2 |
490 |
82 |
3.8 |
75 |
4500 |
2900 |
16.5 |
85 |
|||||
3480 |
14.8 |
86 |
|||||
600YYTL-24 |
4500 |
25.5 |
590 |
83 |
8.0 |
710 |
6000 |
5500 |
24 |
87 |
|||||
6500 |
22 |
88 |
|||||
600YYTL-16 |
3737 |
17.6 |
490 |
83 |
5.5 |
400 |
6000 |
4568 |
16.6 |
87 |
|||||
5400 |
15 |
88 |
|||||
700YYTL-24 |
6400 |
25.5 |
490 |
84 |
8.0 |
1000 |
8000 |
8000 |
24 |
88.5 |
|||||
9600 |
21.5 |
89.5 |
|||||
700YYTL-18 |
5550 |
19.2 |
425 |
84 |
6.1 |
630 |
8000 |
6940 |
18 |
88.5 |
|||||
8327 |
16.2 |
89.5 |
|||||
800YYTL-24 |
8250 |
27 |
490 |
87.5 |
9.6 |
1250 |
8800 |
10500 |
24 |
89.5 |
|||||
12000 |
21.3 |
87.5 |
|||||
800YYTL-18 |
7156 |
20.3 |
425 |
87.5 |
7.2 |
800 |
8800 |
9100 |
18.1 |
89.5 |
|||||
10400 |
16 |
87.5 |
|||||
900YYTL-24 |
12000 |
26 |
370 |
86 |
8.3 |
1800 |
11400 |
15000 |
24 |
90 |
|||||
18000 |
21.5 |
90.2 |
|||||
900YYTL-19 |
10700 |
20.7 |
330 |
86 |
6.6 |
1250 |
11400 |
13380 |
19.1 |
90 |
|||||
16050 |
17.1 |
90.2 |

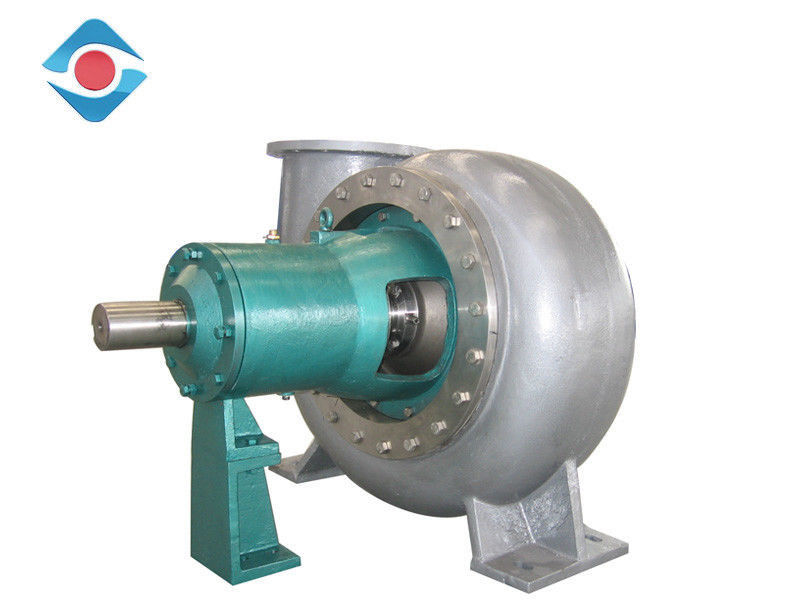

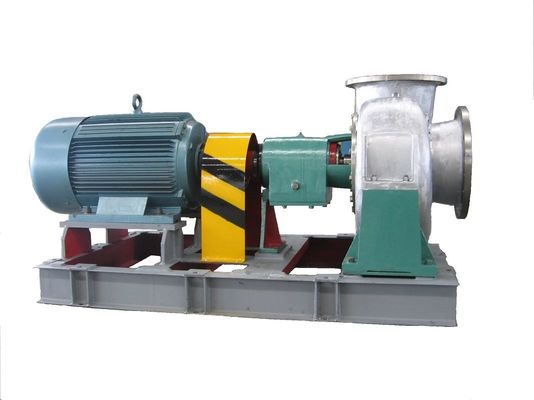

Product Dispaly
Structure
Structure Description
horizontal single stage, single suction pump
bracket (or cantilever) mixed flow pump
the rear door type structure
the rotor parts can be taken out for maintenance without disassembling the inlet
and outlet pipes
