Theory: | Mix Flow Pump | Max Flow: | 6500m3/h |
---|---|---|---|
Max Head: | 25m | Type: | Blade Pump |
PH: | 4.5-8 | Flange: | Customized |
Shaft Sealing: | Mechanical Seal And Packing | Voltage: | 380V/440V |
Highlight: | mixed flow centrifugal pump,mixed flow pump |
High Pressure Volute Mixed Flow Pump , Radial Flow Flue Gas Desulphurization Pump
Parameter Data
![]() |
Model: YYTL-series desulphurization pump |
Discharge Size: 200mm~800mm |
|
Inlet Size: 250mm~900mm |
|
Capacity: 200-6500 m³/h |
|
Head: 8-25 m |
|
Maximal Efficiency: 90.2% |
|
NPSH: 3.2m~9.6m |
|
Allowable Max Motor Power: 1800 kw |
|
Impeller |
Allowed Max Particle Size: 20 mm |
Vanes: 5/6 |
Seal Type: mechanical seal/dynamic seal/packing seal |
Type: closed/ half open |
Pump Weight:up to 3000kg |
Material:Metal (according to working conditions ) |
RPM: 1450 r/min |
Technical Parameter
Model |
flow (m³/h) |
Head (m) |
Speed (r/min) |
Maximum efficiency (%) |
NPSH(NPSHr) m |
Allowable maximum motor power(KW) |
Net weight (kg) |
350YYTL-24 |
1280 |
25.2 |
740 |
75 |
6.5 |
200 |
3200 |
1600 |
24 |
80 |
|||||
1920 |
22.3 |
81 |
|||||
350YYTL-10 |
640 |
11.2 |
490 |
72 |
3.4 |
55 |
3200 |
960 |
10.2 |
78 |
|||||
1060 |
9.1 |
79 |
|||||
400YYTL-24 |
1760 |
25.5 |
740 |
80 |
6.8 |
280 |
3500 |
2200 |
24 |
82 |
|||||
2640 |
22 |
83 |
|||||
400YYTL-10 |
1160 |
11.3 |
490 |
78 |
3.2 |
75 |
3500 |
1450 |
10.5 |
80 |
|||||
1740 |
9.4 |
81 |
|||||
500YYTL-24 |
2800 |
25.8 |
590 |
82 |
7.1 |
450 |
4500 |
3500 |
25 |
85 |
|||||
4200 |
21.6 |
86 |
|||||
500YYTL-16 |
2320 |
18.2 |
490 |
82 |
3.8 |
75 |
4500 |
2900 |
16.5 |
85 |
|||||
3480 |
14.8 |
86 |
|||||
600YYTL-24 |
4500 |
25.5 |
590 |
83 |
8.0 |
710 |
6000 |
5500 |
24 |
87 |
|||||
6500 |
22 |
88 |
|||||
600YYTL-16 |
3737 |
17.6 |
490 |
83 |
5.5 |
400 |
6000 |
4568 |
16.6 |
87 |
|||||
5400 |
15 |
88 |
|||||
700YYTL-24 |
6400 |
25.5 |
490 |
84 |
8.0 |
1000 |
8000 |
8000 |
24 |
88.5 |
|||||
9600 |
21.5 |
89.5 |
|||||
700YYTL-18 |
5550 |
19.2 |
425 |
84 |
6.1 |
630 |
8000 |
6940 |
18 |
88.5 |
|||||
8327 |
16.2 |
89.5 |
|||||
800YYTL-24 |
8250 |
27 |
490 |
87.5 |
9.6 |
1250 |
8800 |
10500 |
24 |
89.5 |
|||||
12000 |
21.3 |
87.5 |
|||||
800YYTL-18 |
7156 |
20.3 |
425 |
87.5 |
7.2 |
800 |
8800 |
9100 |
18.1 |
89.5 |
|||||
10400 |
16 |
87.5 |
|||||
900YYTL-24 |
12000 |
26 |
370 |
86 |
8.3 |
1800 |
11400 |
15000 |
24 |
90 |
|||||
18000 |
21.5 |
90.2 |
|||||
900YYTL-19 |
10700 |
20.7 |
330 |
86 |
6.6 |
1250 |
11400 |
13380 |
19.1 |
90 |
|||||
16050 |
17.1 |
90.2 |
Feature
1. The technical index and performance has already reached domestic and international advanced level of similar products.
2. The flowing-passed components like pump body, inner rotor, pump cover, impeller, distance sleeve, etc, are all made of superior stainless steel or special materials.
3.The shaft seal is filler + dynamic seal. Client also can choose double mechanical seal or external mechanical seal.as required,to make sure satisfy the demand of delivering all kinds of medium and the working life of shaft seal.
4. Horizontal mount, compact structure,low voice, small vibration,small occupation and stable operation.
Application
In metallurgical, mining, and coal industrial sectors, YYTL-series desulfurization pumps can be used to transfer corrosive liquid containing small solid particles and can also be used for municipal sewage and river dredge.

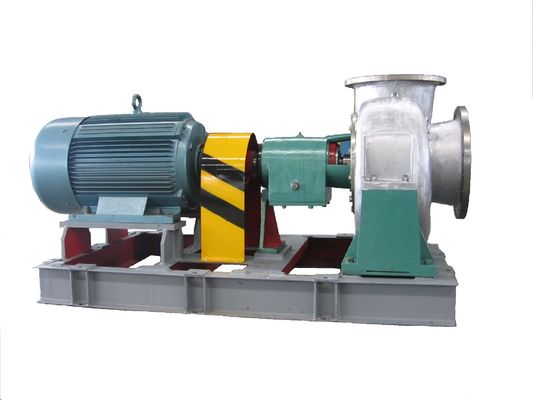

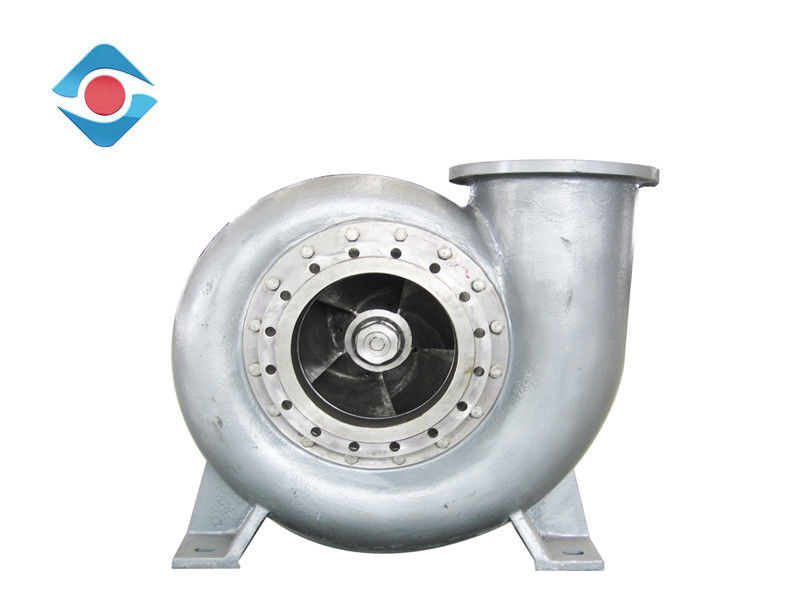

Product Picture
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
