Product Details:
Payment & Shipping Terms:
|
| Theory: | Centrifugal Pump | Max Flow: | 1000m3/h |
|---|---|---|---|
| Max Head: | 120m | Pressure: | 1.6MPa |
| Temperature: | -50-130℃ | Color: | Customized |
| Standard Or Nonstandard: | Standard | Name: | High Efficiency Centrifugal Single Stage Horizontal Axially Split Casting Chemical Pump |
| Structure: | Single-stage Pump | ||
| High Light: | horizontal high pressure centrifugal pump,industrial centrifugal pumps |
||
Horizontal Chemical Pump / Multistage Centrifugal Pump for Weak Nitric Acid
Product Description
Structure
| *1 | Locking screw | *8 | Vice impeller chamber | 15 | Front bearing cap | 22 | Oil pan | *29 | Sleeve |
| 2 | Gasket | 9 | O-ring | *16 | Front bearing | 23 | Adjustment nut | 30 | Water seal ring |
| *3 | Impeller nut | *10 | Vice impeller | 17 | Bearing body | 24 | Adjustment screw | 31 | Filler |
| 4 | O-ring | *11 | Packing chamber | 18 | Bearing bracket | 25 | Bearing body bracket | 32 | O-ring |
| *5 | Impeller | 12 | O-ring | *19 | Rear bearing | *26 | axis | *33 | keys |
| *6 | Pump body | 13 | Rinse water nozzle | 20 | Rear bearing cover | 27 | Shield cover | ||
| 7 | O-ring | 14 | Water retaining plate | 21 | Key | 28 | Packing gland |
Features
Structure Description
Bearing body bracket
WD pump bearing body bracket is cast iron (HT200, HT250) frame structure with sufficient rigidity and certain shock absorption, its role is to support the pump body and bearing body.
Bearing body
The bearing body equipped with rolling bearings for supporting the radial and axial forces of the pump shaft. The WD pump is equipped with two single row angular contact ball bearings on the coupling side to withstand axial and radial forces. A single row cylindrical roller bearing is mounted on the pump side to withstand radial forces. A 316L water retaining plate is placed at the front end of the front bearing gland to prevent media or other liquid from entering the front bearing.

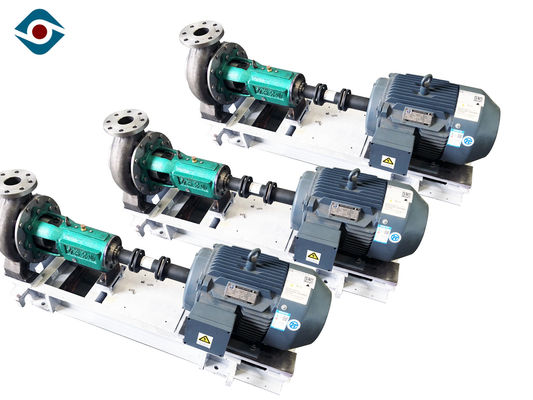

Product Picture
Details
Application of Fields
Inorganic and organic acids
Alkaline solution
Salt solution
Various liquid petrochemical products, organic compounds, corrosive raw materials and products
Our service
1. Reply in 24 hours.
2. Customized IHF Type Lining Fluorine Centrifugal Pump. OEM & ODM
3. Strict quality control with reliable price.
4. Delivery on time and excellent after-sales service.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
