| Theory: | Centrifugal Pump | Max Flow: | 1000m3/h |
|---|---|---|---|
| Max Head: | 120m | Pressure: | 1.6MPa |
| Temperature: | -50-130℃ | Color: | Customized |
| Standard Or Nonstandard: | Standard | Name: | High Efficiency Centrifugal Single Stage Horizontal Axially Split Casting Chemical Pump |
| Structure: | Single-stage Pump | ||
| High Light: | horizontal high pressure centrifugal pump,industrial centrifugal pumps |
||

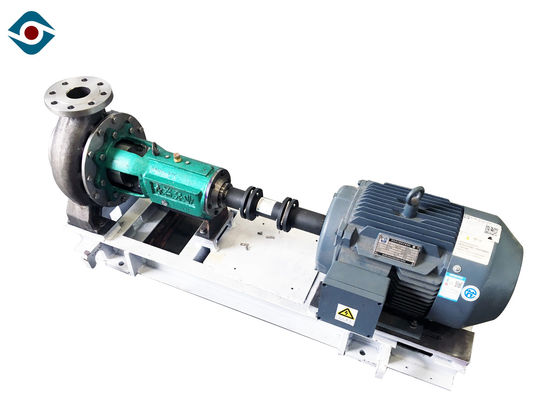

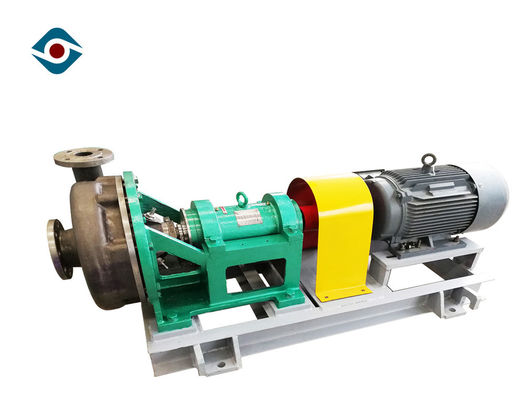

Industrial Heavy Duty Horizontal Centrifugal Pump , Anti - Corrosive Chemical Pump
Product Description
Structure
| *1 | Locking screw | *8 | Vice impeller chamber | 15 | Front bearing cap | 22 | Oil pan | *29 | Sleeve |
| 2 | Gasket | 9 | O-ring | *16 | Front bearing | 23 | Adjustment nut | 30 | Water seal ring |
| *3 | Impeller nut | *10 | Vice impeller | 17 | Bearing body | 24 | Adjustment screw | 31 | Filler |
| 4 | O-ring | *11 | Packing chamber | 18 | Bearing bracket | 25 | Bearing body bracket | 32 | O-ring |
| *5 | Impeller | 12 | O-ring | *19 | Rear bearing | *26 | axis | *33 | keys |
| *6 | Pump body | 13 | Rinse water nozzle | 20 | Rear bearing cover | 27 | Shield cover | ||
| 7 | O-ring | 14 | Water retaining plate | 21 | Key | 28 | Packing gland |
Performance Data
| Capacity: | 8 ~ 800 m³/h |
| Head: | 10 ~ 90 m |
| Maximal Efficiency: | 70% |
| Diameter: | 200mm~470mm |
| NPSH: | 1.4m~4.5m |
| Allowable Max Motor Power: | 315 kw |
| Allowed Max Particle Size: | 20 mm |
| Seal Type: | Mechanical seal/ dynamic seal/ packing seal |
| Pump Weight: | up to 3000kg |
| RPM: | 1450 r/min |
| Material: | Metal (according to working conditions ) |
Features
anti-corrosion and wear-resistant horizontal centrifugal pump
current general structure: bracket support and rear door form
maintenance safe and convenient
great interchangeability
follows the standard of HG20592-2000PN16Mpa
integral casting impeller
the pump body adopts wide flow channel design
suitable for high solid content, high viscosity and easy crystallization medium
Structure Description
Bearing body bracket
WD pump bearing body bracket is cast iron (HT200, HT250) frame structure with sufficient rigidity and certain shock absorption, its role is to support the pump body and bearing body.
Bearing body
The bearing body equipped with rolling bearings for supporting the radial and axial forces of the pump shaft. The WD pump is equipped with two single row angular contact ball bearings on the coupling side to withstand axial and radial forces. A single row cylindrical roller bearing is mounted on the pump side to withstand radial forces. A 316L water retaining plate is placed at the front end of the front bearing gland to prevent media or other liquid from entering the front bearing.
Technical Parameter
|
model |
Clean Water Performance |
||||||
|
flow (m3/h) |
head (m) |
speed (r/min) |
maximum efficiency (%) |
NPSH (NPSHr) m |
pump head weight KG |
shaft component |
|
|
40WD-250 |
8-20 |
15-28 |
1450 |
39 |
0.6 |
141 |
45 |
|
40WD-310 |
8-40 |
23-42 |
1450 |
45 |
1 |
257 |
55 |
|
40WD-350 |
8-45 |
35-54 |
1450 |
37 |
1 |
271 |
55 |
|
50WD-250 |
10-30 |
15-28 |
1450 |
40 |
0.7 |
146 |
45 |
|
50WD-310 |
15-60 |
25-42 |
1450 |
45 |
1.1 |
262 |
55 |
|
50WD-350 |
15-70 |
35-54 |
1450 |
50 |
1.1 |
286 |
55 |
|
50WD-400 |
20-75 |
50-75 |
1450 |
45 |
1.1 |
483 |
70 |
|
65WD-250 |
30-70 |
15-28 |
1450 |
48 |
1.1 |
149 |
45 |
|
65WD-310 |
30-90 |
25-40 |
1450 |
57 |
1.4 |
274 |
55 |
|
65WD-350 |
40-100 |
35-54 |
1450 |
59 |
1.5 |
280 |
55 |
|
65WD-400 |
50-120 |
45-75 |
1450 |
55 |
1.7 |
495 |
70 |
|
65WD-450 |
50-120 |
70-95 |
1450 |
52 |
1.7 |
524 |
70 |
|
80WD-250 |
70-100 |
15-25 |
1450 |
61 |
1.5 |
153 |
45 |
|
80WD-310 |
70-120 |
25-40 |
1450 |
62 |
1.7 |
288 |
55 |
|
80WD-350 |
70-160 |
35-52 |
1450 |
65 |
2.0 |
295 |
55 |
|
80WD-400 |
70-160 |
50-75 |
1450 |
62 |
2.0 |
500 |
70 |
|
80WD-450 |
70-160 |
70-95 |
1450 |
60 |
2.0 |
539 |
70 |
|
100WD-310 |
100-150 |
20-38 |
1450 |
65 |
1.9 |
293 |
55 |
|
100WD-350 |
100-220 |
35-50 |
1450 |
65 |
2.5 |
299 |
55 |
|
100WD-400 |
100-220 |
40-72 |
1450 |
65 |
2.5 |
529 |
70 |
|
125WD-310 |
120-260 |
18-36 |
1450 |
67 |
2.8 |
304 |
55 |
|
125WD-350 |
120-300 |
35-50 |
1450 |
68 |
3.2 |
307 |
55 |
|
125WD-400 |
140-350 |
45-70 |
1450 |
70 |
3.4 |
559 |
70 |
|
125WD-450 |
150-360 |
65-90 |
1450 |
67 |
3.6 |
741 |
80 |
|
150WD-310 |
200-400 |
18-35 |
1450 |
72 |
3.8 |
332 |
55 |
|
150WD-350 |
200-450 |
15-48 |
1450 |
75 |
4.2 |
333 |
55 |
|
150WD-400 |
200-450 |
40-65 |
1450 |
73 |
4.2 |
597 |
70 |
|
150WD-450 |
200-500 |
60-80 |
1450 |
67 |
4.5 |
753 |
80 |
|
200WD-350 |
300-600 |
28-47 |
1450 |
79 |
5 |
583 |
70 |
|
200WD-430 |
300-650 |
50-65 |
1450 |
75 |
5.2 |
765 |
80 |
|
250WD-350 |
400-900 |
26-45 |
1450 |
79 |
6.5 |
850 |
80 |
|
250WD-430 |
400-900 |
50-61 |
1450 |
75 |
6.5 |
910 |
90 |
