Flow: | Max. 2200gpm | Head: | Max. 230ft |
---|---|---|---|
Operation: | With Electric Motor | Voltage: | 220V/380V |
Media: | For Chemicals | Structure: | Single-stage Pump |
Feature: | Runs Dry | ||
Highlight: | vertical submersible centrifugal pumps,vertical long shaft pump |

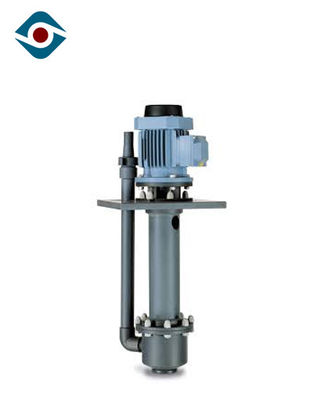

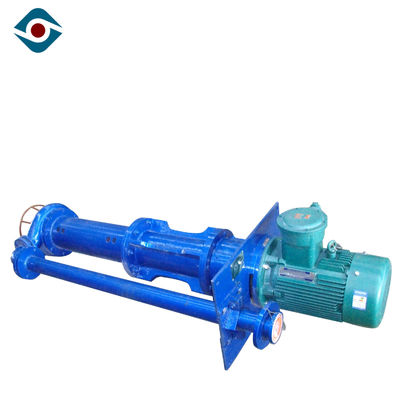

Long Shaft Propeller Submersible Dewatering Pump, Vertical Peripheral Corrosive liquids Pump
Background
Today, there are more and more environmental protection regulations for toxic, explosive and liquefied gases, and the trend is not to provide containers or container drains with side or bottom outlets. Therefore, vertical submersible pumps are usually the first choice for many chemical industries.
In addition to packing seals or single-end, double-end mechanical seals, vertical pumps are also increasingly using pneumatic seals without shaft seals, so they are completely leak-free
Application
Transfer of abrasives large particles and high density slurries from sumps and pits in:
Mining
Civil Construction
Industry
Coal Preparation
Mineral Processing
Chemical Processing
Technical Data
Discharge Size | Inlet Size | Capacity | Head | Maximal Efficiency |
32mm~200mm | 50mm~250mm | 5~500 m³/h | 10 ~ 70m | 70% |
Product Features
1. Compact structure, easy to move, easy installation;
4. Leakage free and dry running safe: This series pump is installed vertically with the motor above the liquid surface. In this way the pump does not need any mechanical seal that usually is a source for leakage problems. Furthermore the pump is designed to be dry running safe. |
Material
Bowl |
Cast iron, SS304/316/316L/Duplex S.S |
Shaft |
SC#45/SS304/316/316L/Duplex S.S |
Impeller |
Cast iron, SS304/316/316L/Duplex S.S |
Discharge head |
Cast iron, SS304/316/316L/Duplex S.S |
Product Advantage
Process
