Product Details:
Payment & Shipping Terms:
|
| Flow: | 6 ~ 364m ³ / H | Head: | 6～58m |
|---|---|---|---|
| Color: | Customized | Application: | Sewage |
| Motor: | 100% Copper Wire Sewage Water Basin Sump Pump | Type: | Submersible |
| Fue: | Electric | Usage: | Conveying Abrasive, Coarse Particles And High-concentration Slurry |
| High Light: | vertical sump pump,industrial slurry pumps |
||

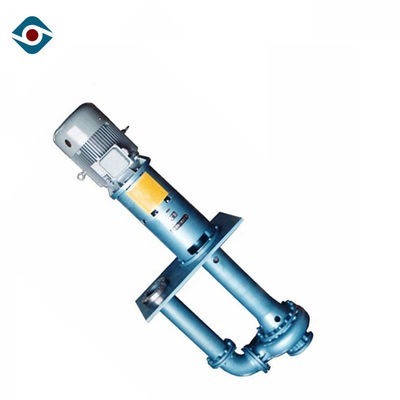

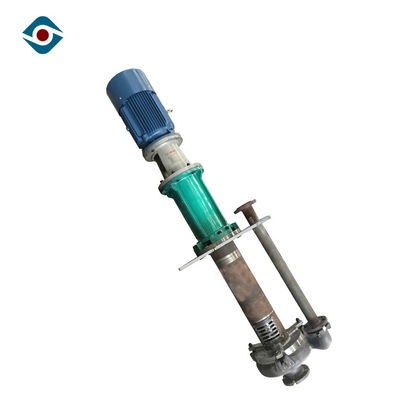

Multistage Industrial Vertical Sump Pumps, Chemical Sump Pump, Heavy Duty Sump Pump
Features
1. High efficiency
2. Energy saving
3. Reliable operation
4. Long service life
5. Anti- wear
6. Anti - corrosion
7. Low vibration
8. Low noise
Parameter
| Model | Clear Water Performance | ||||
| Rotating speed n | Flow Q | Head(m) H | Shaft power Pa | Effectiveness η | |
| r/min | (m³/h) | m | kw | % | |
| 150ZJL-A35 | 590-980 | 119-364 | 4.4-17.9 | 3.9-15.3 | 63.1-68.1 |
| 100ZJL-A36 | 970-1480 | 76-239 | 15.3-51.1 | 9.6-32.1 | 54.1-58.9 |
| 80ZJL-A33 | 970-1480 | 42-157 | 8.1-48.6 | 8.7-33.2 | 52.3-56.5 |
| 65ZJL-A38 | 970-1470 | 50-120 | 19.4-52.3 | 6.9-28.8 | 42.7-45.8 |
| 65ZJL-A30 | 960-1470 | 25-98 | 11.1-34.7 | 2.3-13.4 | 43.7-51.9 |
| 50ZJL-A40 | 970-1470 | 21-65 | 16.5-58.3 | 5.5-22.1 | 29.9-34.1 |
| 50ZJL-A36 | 970-1470 | 36-85 | 13.1-42.7 | 4.7-20.7 | 31.2-39.4 |
| 50ZJL-A20 | 910-1440 | 10.8-38 | 4.3-10.7 | 0.4-2 | 31.2-38.6 |
| 40ZJL-A35 | 970-1470 | 15.8-47.6 | 13.6-42.9 | 3.8-14.1 | 27.3-33.8 |
| 40ZJL-A25 | 910-1440 | 6.6-22.9 | 7.2-21.5 | 0.6-2.8 | 26.1-37.6 |
| 40ZJL-A21 | 910-1140 | 6.0-9.5 | 6.8-17 | 0.4-2.6 | 27.9-44.6 |
Widely Applications
|
Mining |
gold mining,copper mining,coal mining,iron mining, tin mining, sand mining, and so on |
|
Factory |
alumina factory,coal factory, suger factory,chemical factory,water treatment factory.cement factory and so on. |
|
Others |
Mineral , river sand dredging,sand booster application, Mineral processing, and dewatering work. |
Structure
| 1 | Volute casing | 2 | support | 3 | Motor base |
| 4 | Impeller | 5 | Left support plate | 6 | Discharge pipe |
| 7 | Rear liner plate | 8 | Bearing body | 9 | Right support plate |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
