Theory: | Vortex | Max Flow: | 800m3 / H |
---|---|---|---|
Head: | 10~50m | Voltage: | 380V |
Input Flange: | DN50-DN300 | Output Flange: | DN40-DN250 |
Power: | Electric | Ky: | Peripheral Chemical Pump |
Pressure: | High Pressure | Warranty: | 1 Year |
Highlight: | vortex impeller submersible pumps,peripheral impeller pump |

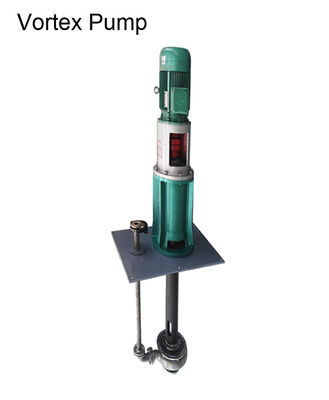

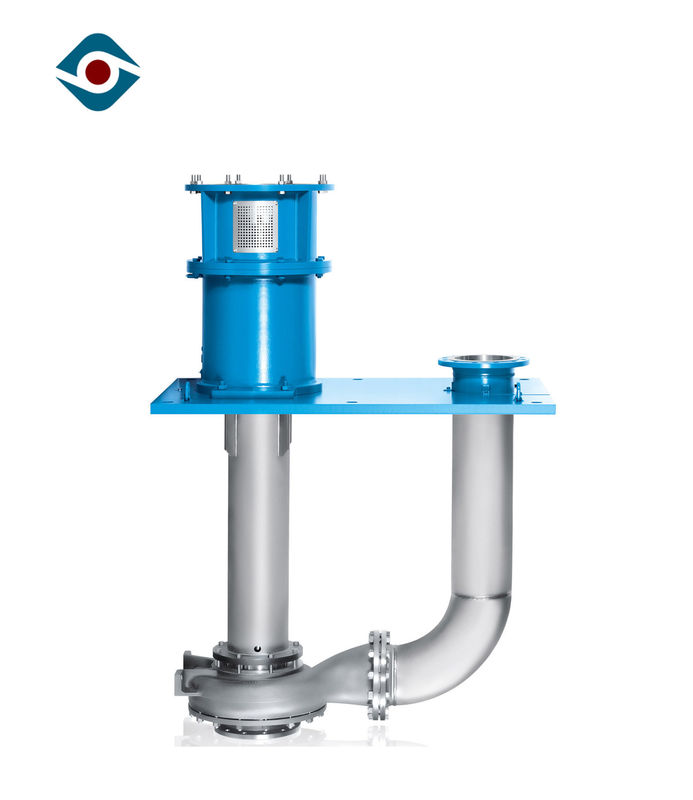

No Clogging Vortex Impeller Pump Self Priming for Chemical / Paper Industry
Product Description
1. XWD-series horizontal vortex pumpsadopt vortex impeller.
2. Thay are applicable to convey corrosive liquid containing less than 45% solid particles (particle size is no more than 20mm).
3. Impeller free from being stuck because of solids and it can make flow passage components free from frequent scaling.
Performance Data
Capacity |
8~750m³/h |
Head |
15~60m |
Maximal Efficiency |
2.4m~3.3m |
NPSH |
up to 1500kg |
Pressure |
1.6MPa |
RPM |
1450r/min |
Motor Power |
250KW |
Structure
1 |
front cover |
8 | rinsing nozzle | 15 | rear bearing | 22 | bearing body bracket | 29 | O-ring |
2 | wear-resist plate | 9 | packing gland | 16 | rear bearing cover | 23 | front bearing | 30 | O-ring |
3 | impeller | 10 | front bearing cap | 17 | rear oil seal gland | 24 | framework oil seal | 31 | key |
4 | pump body | 11 | bearing body bracket | 18 | key | 25 | front oil seal gland | 32 | impeller nut |
5 | vice impeller chamber | 12 | bearing body | 19 | framework oil seal | 26 | filler | 33 | lock screw |
6 | vice impeller | 13 | bearing | 20 | adjustment nut | 27 | water seal ring | ||
7 | packing room | 14 | oil baffle pan | 21 | adjustment screw | 28 | sleeve |
Installation Dimension
Product Details
Application
In the fields of phosphorus chemical industry,petroleumindustry,coal chemical industry, paper making industry, sugar industry, pharmacy industry, chemical metallurgyand other industries, XWD-series pumps are applicable to transfer corrosive and abrasive liquid containing big particles.
Our Advantage
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
