| Theory: | Radial Flow | Rate Flow: | 2000m3/h, 7000GPM |
|---|---|---|---|
| Rate Head: | 160m, 525ft | NPSH: | 3.5m |
| Frequency: | 50hz | Motor: | Explosion-proof Motor |
| High Light: | centrifugal chemical process pumps,industrial process pumps |
||

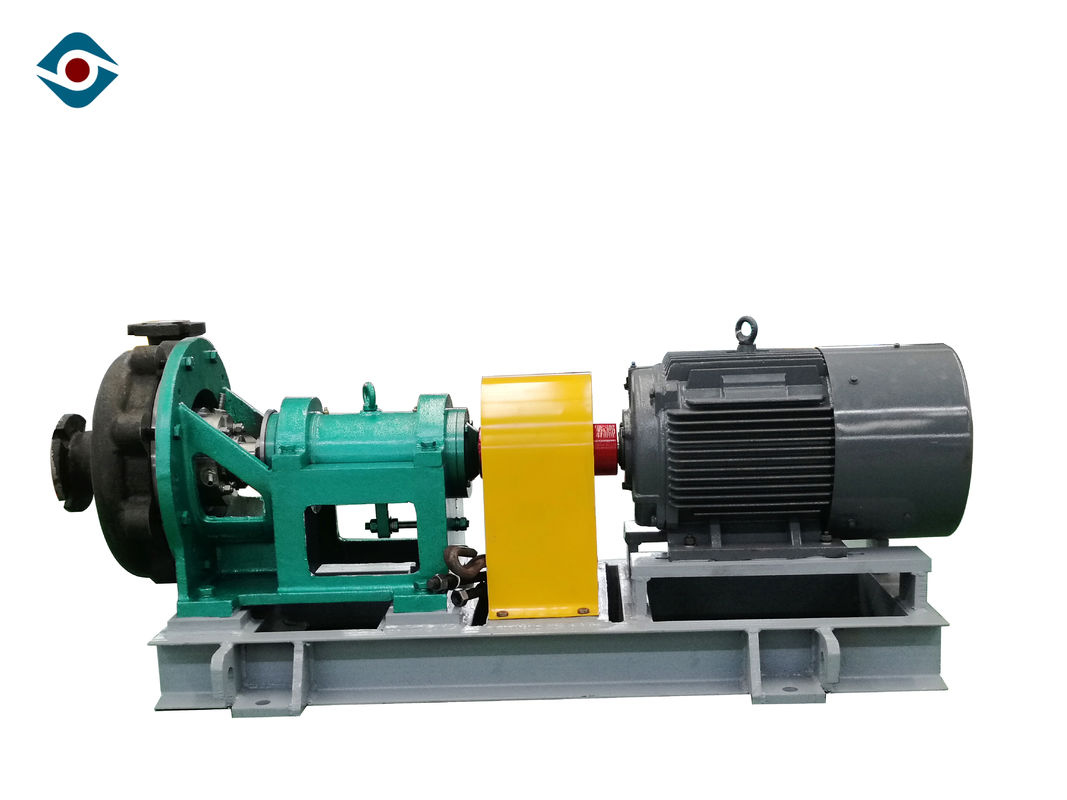

Non-clog Easy Maintenance Single Stage Industrial Chemical Process Pump for Acid Slurry
Pump Design
1. Follow the ISO5199 and GB/T5656 standards
2. Integral casting closed impeller
3. Impeller with back blade or balance hole
4. Cylindrical roller and a set of angular contact bearings
5. Large-capacity oil storage chamber
| Technical Parameter | Data |
| Mode | YCZ-series chemical process pump |
| Discharge Size | 20mm ~250mm |
| Inlet Size | 32mm~300mm |
| Capacity | 4~2000m³/h |
| Head | 2~160m |
| Maximal Efficiency | 65% |
| NPSH | 0m~3.5m |
| Allowable Max Motor Power | 710 KW |
| Allowed Max Particle Size | 20mm |
| Seal Type | mechanical seal/dynamic seal/packing seal |
| RPM |
1450r/min~2900r/min |
| Material of Liner | Metal (according to working conditions ) |
Features
- Minimal noise level
- Low energy consumption
- High resistance to abrasion and corrosion
- Ability to pump wide range of fluid viscosities
- Simple installation, operation and maintenance
Construction Material
| NO. | Grade | Code | Medium | Evaluation of Corrosion Resistance | Evaluation of Wear Resistance |
| 1 | 00Cr17Ni12Mo | 316L | Phosphoric acid, dilute sulfuric acid, dilute nitric acid, organic acid, resistance to intergranular corrosion |
☆☆☆☆☆
|
☆☆
|
| 2 | 0Cr17Ni12Mo | 316 | Phosphoric acid, sulfuric acid, dilute nitric acid, organic acid |
☆☆☆☆
|
☆☆
|
| 3 | 0Cr18Ni12Mo2Ti | Mo2Ti | Phosphoric acid, dilute nitric acid, organic acid | ☆☆☆☆ | ☆☆ |
| 4 | 00Cr18Ni9 | 304L | Phosphoric acid slurry, dilute nitric acid, organic acid | ☆☆☆ | ☆☆ |
| 5 | 0Cr18Ni9 | 304 | Ammonium phosphate slurry, dilute nitric acid, organic acid | ☆☆☆ | ☆☆ |
| 6 | 1Cr18Ni9 | 321H | Phosphoric acid slurry, normal temperature dilute sulfuric acid, organic acid, alkali, neutral solution | ☆☆ | ☆☆☆ |
| 7 |
0Cr24Ni20Mo2Cu3
|
K Alloy
|
≤60°%c various concentrations of sulfuric acid, ammonium bicarbonate 70%, ammonium sulfate solution less than 40%, high temperature phosphoric acid |
☆☆☆☆
|
☆☆☆☆
|
| 8 | 0Cr20Ni30Mo5Cu3 | 20# Alloy | High temperature dilute sulfuric acid, high temperature phosphoric acid, t≤130 ℃ concentration about 40% |
☆☆☆☆☆
|
☆☆☆ |
| 9 | 0Cr20Ni25Mo5Cu2 |
904
|
Various concentrations of sulfuric acid and high temperature phosphoric acid below 70 ℃ |
☆☆☆☆
|
☆☆☆ |
| 10 | 015Cr21Ni26Mo5Cu2 | 904L | Various concentrations of sulfuric acid and high temperature phosphoric acid below 80 ℃ |
☆☆☆☆☆
|
☆☆
|
| 11 | 0Cr12Ni25Mo3Cu3Si2Nb | 941 | Full concentration room temperature sulfuric acid, especially suitable for medium concentration (about 50%) sulfuric acid below 100 ℃ |
☆☆☆☆☆
|
☆☆☆ |
| 12 |
00Cr14Ni14Si4
|
C4
|
Full concentration nitric acid, especially suitable for concentrated nitric acid | ☆☆☆ | ☆☆ |
| 13 | 00Cr10Ni20Mo1.5Si6Cu | SS920 | High concentration sulfuric acid, t≤130 ℃, concentration 93-98% | ☆☆☆☆ | ☆☆ |
| 14 | 0CrNi60Mo28Co3V4 | 哈氏B | Below the boiling point Full concentration hydrochloric acid, sulfuric acid, phosphoric acid, hydrofluoric acid, non-oxidizing salts |
☆☆☆☆☆
|
☆☆☆ |
| 15 | 022Cr23Ni5Mo3N | 2205 | Phosphoric acid, dilute sulfuric acid, small amount of oxygen ions, fluoride ions | ☆☆☆☆ | ☆☆ |
| 16 | 022Cr26Ni5Cu3Mo3N | 2605N | Phosphoric acid, dilute sulfuric acid, small amount of oxygen ions, fluoride ions |
☆☆☆☆☆
|
☆☆☆ |
| 17 | 022Cr225Ni7Mo5N | 2507 | Organic acid, inorganic acid, small amount of oxygen ion, fluoride ion |
☆☆☆☆☆
|
☆☆☆ |
| 18 | 0Cr26Ni5Mo2Cu3 | CD4MCu | Dilute sulfuric acid, phosphoric acid, corrosive and abrasive medium |
☆☆☆☆☆
|
☆☆☆ |
| 19 | 0Cr28Ni1Mo5Co4V2Re | F33 | Phosphoric acid, phosphoric acid, dilute sulfuric acid, corrosive abrasive medium | ☆☆☆☆ | ☆☆☆☆ |
| 20 | F30%CrMo | Cr30 | Phosphoric acid, phosphoric acid, dilute sulfuric acid, small amount of oxygen ions, fluoride ions | ☆☆☆ |
☆☆☆☆☆
|
| 21 | 06Cr30Ni2. 5Mo5CuRe | DTCr30 | Phosphoric acid extraction slurry, phosphoric acid and dilute sulfuric acid with solid particles | ☆☆☆☆ | ☆☆☆☆☆ |
| 22 | 00C30Mo2 | Cr30Mo2 | Phosphoric acid extraction slurry, high temperature phosphoric acid and dilute sulfuric acid with solid particles |
☆☆☆☆☆
|
☆☆☆☆ |
| 23 | 295Cr26NiMo | A05 | Slurry, neutral medium | ☆☆ |
☆☆☆☆☆
|
| 24 |
205Cr36NiMoCu
|
A33
|
Slurry, weakly acidic, weakly alkaline medium |
☆☆☆
|
☆☆☆☆
|
| 25 | Carbon fiber composites material | TQ-1 | Corrosive and abrasive medium | ☆☆☆☆☆ | ☆☆☆☆☆ |
Product Dispaly
Application
| Chemical Process Industries | Organic & Inorganic Liquids Refineries |
| Fertilizer Plants | Dyes & Intermediates |
| Bulk Drugs And Pharmaceutical | Effluent Treatment Plants |
| Heating And Air Conditioning Plants | Cooling Towers |
| Sugar Plant | Fire Fighting |
| Pulp And Paper, Textile | Power, Steel |
| Jet Dyeing | Thermic Fluid |
