Product Details:
Payment & Shipping Terms:
|
| Theory: | Centrifugal | Flow: | 5-500m3/h |
|---|---|---|---|
| Head: | 10-70m | Warranty: | 1 Year |
| Frequency: | 50 /60 Hz | Pressure: | High Pressure |
| Fuel: | Electric | Voltage: | 220V/380V |
| Highlight: | vertical submersible centrifugal pumps,submersible chemical pump |
||

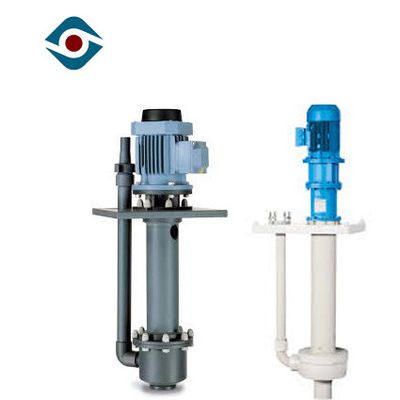

Non Clogging Vertical Submersible Pump , Solid Content Chemical Centrifugal Pump
Product Description
1. ZAL-series pump is single stage, single-suction, vertical submerged centrifugal pump with Long shaft.
2. This pump is designed according to standard IS05199.
3. Pump shaft is supported by sliding bearings in pump cover and sliding bearing body; upper bearing adopts anti-abrasive bearing and lubricated by lithium base grease.
Technical Data
Model: ZAL-series vertical submerged centrifugal pump
Discharge Size: 32mm~200mm
Inlet Size: 50mm~250mm
Capacity: 5～500 m³/h
Head: 10 ~ 70 m
Maximal Efficiency: 70%
NPSH: 1.4m~4.5m
Allowable Max Motor Power: 315 kw
Allowed Max Particle Size: /
Seal Type: packing seal
Pump Weight:up to 3000kg
RPM: 1450 r/min or 2900 r/min
Technical Parameter
| Model | rotate speed n=2950r/min | rotate speed n=1475r/min | ||||||
| Flow (m3/h) | Head (m) | ρ=1 | ρ=1.35 |
Flow (m3/h) |
Head (m) |
ρ=1 | ρ=1.35 | |
| Motor power (KW) |
Motor power (KW) |
|||||||
| ZAL25-200 | 7.5-11.5 | 28-49 | 2.2-5.5 | 3-7.5 | 4-5.8 | 6.5-12 | 0.75-1.1 | 0.75-1.1 |
| ZAL25-250 | 10.8-12.5 | 46-78 | 5.5-11 | 7.5-15 | 5.4-6.3 | 11.5-19.5 | 1.1-1.5 | 1.5-2.2 |
| ZAL25-315 | 15.3-20 | 74-130 | 15-30 | 22-37 | 7.6-10 | 18.5-32 | 2.2-3 | 2.2-4 |
| ZAL40-160 | 20-28 | 16-33 | 2.2-5.5 | 3-7.5 | 9.5-14 | 4.5-8 | 0.75-1.1 | 0.75-1.1 |
| ZAL40-200 | 18-29 | 20-53 | 4-11 | 5.5-15 | 9.5-14.5 | 7-13 | 1.1-1.5 | 1.1-2.2 |
| ZAL40-250 | 21-32 | 47-78 | 7.5-18.5 | 11-22 | 10.5-16 | 11-19.5 | 1.1-3 | 1.5-4 |
| ZAL40-315 | 29-42 | 61-115 | 15-37 | 22-45 | 15-21 | 15-29 | 3-5.5 | 4-7.5 |
| ZAL50-160 | 31-50 | 17-34 | 3-11 | 4-15 | 16.5-25 | 4-8.4 | 0.75-1.5 | 1.1-2.2 |
| ZAL50-200 | 43-62 | 28-82 | 7.5-18.5 | 11-22 | 22-31 | 7-13 | 1.1-3 | 1.5-3 |
| ZAL50-250 | 50-70 | 45-82 | 15-30 | 18.5-37 | 26-35 | 11-20 | 2.2-4 | 3-5.5 |
| ZAL50-315 | 57-87 | 57-115 | 22-55 | 30-75 | 30-44 | 14-28 | 3-11 | 4-11 |
| ZAL50-400 | 60-82 | 102-194 | 45-110 | 75-160 | 30-41 | 25-48 | 7.5-15 | 11-22 |
| ZAL80-160 | 66-94 | 17-32 | 5.5-15 | 7.5-18.5 | 34-47 | 4-8 | 1.1-2.2 | 1.1-3 |
| ZAL80-200 | 70-103 | 30-54 | 11-30 | 15-37 | 36-51 | 7.5-12.5 | 1.5-4 | 2.2-5.5 |
| ZAL80-250 | 87-127 | 45-82 | 22-45 | 30-75 | 46-64 | 11-20 | 3-7.5 | 4-11 |
| ZAL40-315 | 90-141 | 74-127 | 37-90 | 45-132 | 45-70 | 18-33 | 5.5-15 | 7.5-18.5 |
| ZAL80-400 | 116-171 | 95-187 | 75-160 | 90-220 | 53-85 | 25-46 | 11-22 | 15-30 |
| ZAL100-160 | 110-162 | 12-29 | 7.5-22 | 11-30 | 55-81 | 3-7.2 | 1.1-3 | 1.5-4 |
| ZAL100-200 | 135-193 | 26-50 | 18.5-45 | 30-55 | 70-95 | 6-12.5 | 3-5.5 | 3-7.5 |
| ZAL100-250 | 170-230 | 44-79 | 37-75 | 45-90 | 90-115 | 10-20 | 5.5-11 | 7.5-15 |
| ZAL100-315 | 170-250 | 71-126 | 75-132 | 75-200 | 86-125 | 17.5-31 | 11-18.5 | 11-30 |
| ZAL100-400 | 224-300 | 105-194 | 110-250 | 160-355 | 115-150 | 26-48 | 15-37 | 22-45 |
| ZAL150-250 | 310-190 | 40-74 | 55-110 | 75-160 | 155-195 | 10-18.5 | 11-15 | 11-22 |
| ZAL150-315 | 310-442 | 68-125 | 90-250 | 132-355 | 150-220 | 17-32.5 | 15-30 | 18.5-45 |
| ZAL150-400 | 400-520 | 113-502 | 200-400 | 280-500 | 200-260 | 28-51 | 30-55 | 37-75 |
| ZAL150-500 | 208-300 | 45-77 | 45-110 | 75-132 | ||||
| ZAL150-630 | 220-360 | 60-115 | 75-200 | 110-250 | ||||
| ZAL200-250 | 470-610 | 32-72 | 75-160 | 90-220 | 240-305 | 8-17.5 | 11-22 | 15-30 |
| ZAL200-315 | 480-710 | 65-122 | 132-355 | 185-450 | 350-350 | 15-30 | 18.5-45 | 22-55 |
| ZAL200-500 | 330-495 | 48-84 | 75-185 | 90-220 | ||||
| ZAL200-560 | 350-540 | 62-105 | 110-250 | 132-355 | ||||
| ZAL200-630 | 372-580 | 75-132 | 132-315 | 185-450 | ||||
| ZAL250-315 | 424-545 | 13-27 | 30-55 | 37-75 | ||||
| ZAL250-400 | 500-660 | 24-49 | 53-132 | 75-160 | ||||
| ZAL250-500 | 630-800 | 42-82 | 110-280 | 160-400 | ||||
| ZAL250-560 | 665-860 | 57-106 | 160-400 | 250-560 | ||||
| ZAL300-400 | 780-1050 | 26-48 | 90-200 | 132-280 | ||||
| ZAL300-500 | 870-1240 | 42-78 | 160-450 | 250-560 | ||||
| ZAL300-560 | 950-1340 | 56-104 | 280-560 | 400-800 | ||||
| ZAL300-630 | 950-1450 | 75-132 | 355-1000 | 500-1400 | ||||
| ZAL300-500 | 1300-1870 | 38-74 | 220-630 | 315-1000 | ||||
| ZAL300-560 | 1500-2040 | 54-98 | 355-900 | 500-1250 | ||||

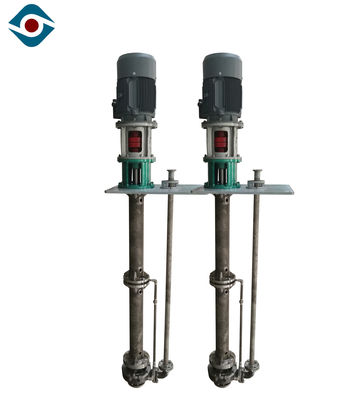

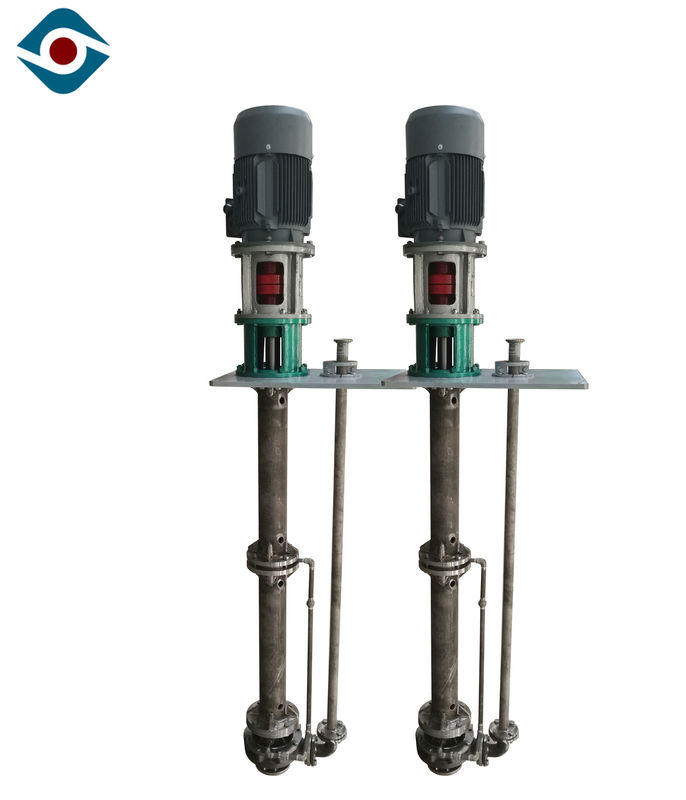

Product Show
Characteristic
| The shaft structure is safe and reliable. |
| Rotor components can be adjusted axially |
| The rotor parts are supported by multiple points, and the pump runs safely and reliably. |
| Sliding bearing with external lubrication |
| Adopting the shaft protection structure, prolong the service life of sliding bearing |
Performance Curve
Application
1. Daily Chemicals:Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmestics etc.
2. Pharmacy:Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc.
3. Chemical Industry:Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
4. Other Industry:Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc.
Advantages
PRODUCTION EXPERIENCE
With decades of manufacturing experience.
The overall performance and efficiency are constantly improving
PROFESSIONALS
Efficient and rich professional production team to create the
most suitable pump solution for you.
TECHNICAL INNOVATION
Introducing various model technologies and processing technologies, dedicating to researching and developing energy-efficient products to
optimize the products continuously
ADVANCED EQUIPMENT
To use the most advanced production equipment and test systems to provide users with high quality pumps.
WAREHOUSE AND TRANSPORTATION
Specialized logistics and transportation, to ensure the safe delivery of products
AFTER-SAIES SERVICE
Comprehensive knowledge of technical applications, for all types of installation and use of the environment, to provide the most suitable products and perfect service
