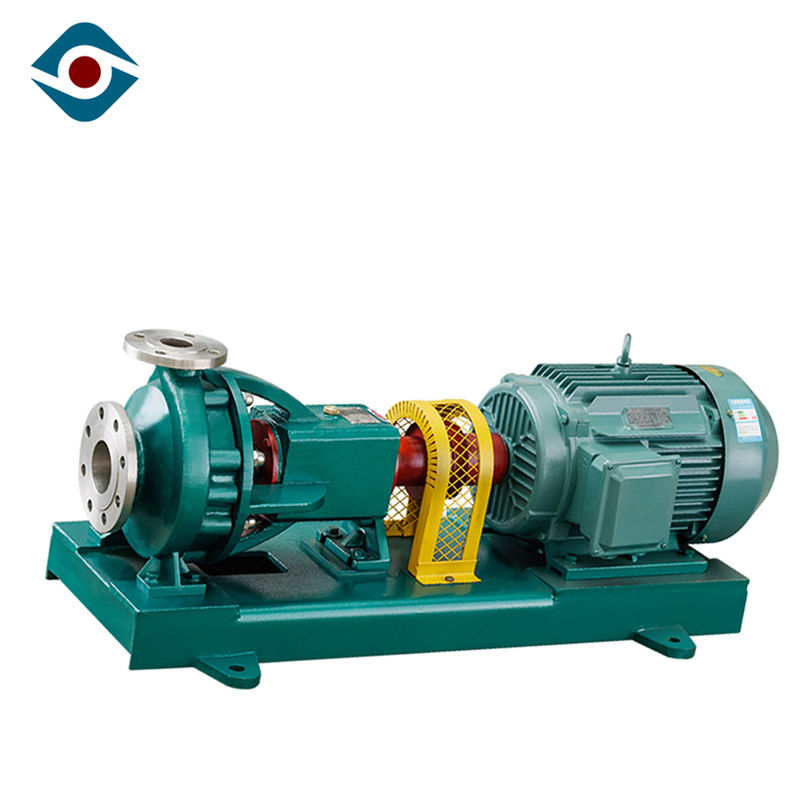

Radial Impeller Horizontal Stainless Steel Centrifugal Pumps for Chemical Industry
-
-
Large Image :
Radial Impeller Horizontal Stainless Steel Centrifugal Pumps for Chemical Industry
|
Product Details:
| Place of Origin: |
Sichuan, China |
| Brand Name: |
Chengdu Yongyi |
| Certification: |
ISO9001 |
| Model Number: |
ZA |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 set |
| Price: |
USD 500-5000/set |
| Packaging Details: |
Free Fumigation Export Wooden Box |
| Delivery Time: |
25 working days after receiveing advance payment |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: |
300 sets per month |
|
Detailed Product Description
| Max Flow: |
2040m3 / H |
Max Head: |
300m |
| Impeller: |
Radial Impeller |
Product Name: |
High Head Anti-acid Standard Chemical Pump |
| Pressure: |
Max 2.5MPa |
DN: |
25-400mm |
| High Light: |
industrial chemical pumps, pumps used in chemical industry |
Radial Impeller Horizontal Stainless Steel Centrifugal Pumps for Chemical Industry
Structure Diagram
| 102.00 |
pump body |
161.00 |
pump cover |
183.00 |
Support foot |
| 210.00 |
shaft |
230.00 |
impeller |
320.00 |
Antifriction bearing |
| 320.01 |
Antifriction bearing |
330.00 |
Bearing bracket |
360.00 |
Bearing cover |
| 360.01 |
Bearing cover |
400.00 |
Flat gasket |
400.01 |
Flat gasket |
| 412.00 |
O ring |
412.01 |
O ring |
433.00 |
Mechanical seal |
| 433.01 |
Mechanical seal |
471.00 |
Sealing cover |
471.01 |
Sealing cover |
| 502.00 |
Casing wear ring |
502.01 |
Casing wear ring |
502.02 |
Casing wear ring |
| 503.00 |
Impeller wear ring |
503.01 |
Impeller wear ring |
507.00 |
deflrctor |
| 507.01 |
deflector |
524.00 |
sleeve |
524.01 |
sleeve |
| 638.00 |
Constant-level-oiler |
644.00 |
Lubricating ring |
673.00 |
Vent filter |
| 710.00 |
pipe |
915.00 |
Threaded insert |
922.00 |
Impeller nut |
| 923.00 |
Bearing nut |
932.00 |
circlip |
|
Working Medium
|
ZA-series Pump
|
Medium
|
|
DN
|
25-400mm
|
-
Inorganic and organic acids of various temperatures and concentrations
-
Alkaline solution of various temperature and concentration
-
Salt solution of various temperature and concentration
-
Various liquid petrochemical products, organic compounds, corrosive raw materials and products
|
|
Flow Q
|
2600m3/h
|
|
Head H
|
250m
|
|
Work Pressure P
|
2.5MPa
|
|
Work Temperature T
|
-80℃-+450℃
|
Features
- The ZA series pump is single-stage, horizontal radial split volute pump with foot support of high versatility. Bearing suspension components including shaft, impeller, shaft seal and pump cover, this can be disassembled only by disassembling the extension of the coupling, without removing the pipes and the motor.
- The larger flange diameter ensures a lower flow rate. The design of the impeller and pump body keeps a low noise. The single-stage radial impeller (N impeller) has a sealed passage. The induction wheel and the open impeller are also available according to different specifications.
- The shaft seal including packing seal and mechanical seal, and the maximum axis bounce is within 0.05mm.
- The pump cover can be cooled and insulated. The shaft seal can be filled with coolant, flushing fluid and sealing fluid. The standard pipe is designed according to the API.

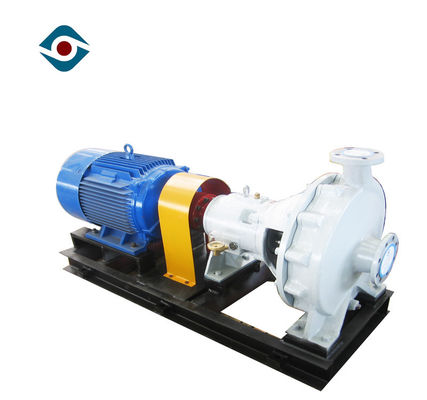

Product Dispaly
