Radial Subdivision Flue Gas Desulphurization Pump End Suction with Spacer Sleeve
-
-
Large Image :
Radial Subdivision Flue Gas Desulphurization Pump End Suction with Spacer Sleeve
|
Product Details:
| Place of Origin: |
Sichuan, China |
| Brand Name: |
Chengdu Yongyi |
| Certification: |
ISO9001 |
| Model Number: |
YYTL |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 set |
| Price: |
USD 500-5000/set |
| Packaging Details: |
free fumigation export wooden box packaging |
| Delivery Time: |
25 working days after receiveing advance payment |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: |
300 Sets/Month |
|
Detailed Product Description
| Theory: |
Mix Flow Pump |
Flow: |
200-6500m3/h |
| Head: |
8-25m |
Impeller: |
Closed/ Semi Open |
| Brand: |
Chengdu Yongyi |
Pressure: |
1.6MPa |
| Flange: |
Customized |
Condition: |
New |
| Name: |
Flue Gas Desulphurization Pump |
| High Light: |
mixed flow centrifugal pump, mixed flow pump |
Radial Subdivision Flue Gas Desulphurization Pump End Suction with Spacer Sleeve
Performance Data
- Capacity: 200-6500 m³/h
- Head: 8-25 m
- Maximal Efficiency: 90.2%
- NPSH: 3.2m~9.6m
- Allowed Max Particle Size: 20 mm
- Seal Type: mechanical seal/dynamic seal/packing seal
- RPM: 1450 r/min
Structure
| 1 |
Round nut |
2 |
Rear bearing cover |
3 |
Adjustment screw |
4 |
Rear bearing |
5 |
Ventilation plug |
| 6 |
Front bearing |
7 |
Front bearing cover |
8 |
Water retaining plate |
9 |
bolt |
10 |
O ring |
| 11 |
Pump cover |
12 |
Mechanical seal |
13 |
Pump body |
14 |
impeller |
15 |
Impeller nut |
| 16 |
bolt |
17 |
O ring |
18 |
Lock screw |
19 |
Front cover |
20 |
O ring |
| 21 |
O ring |
22 |
key |
23 |
O ring |
24 |
Bearing body |
25 |
Cooling water gland |
| 26 |
Oil pointer |
27 |
shaft |
28 |
Cooling water pipe |
29 |
Nearing box |
30 |
Support blade |
| 31 |
O ring |
32 |
Framework oil seal |
33 |
spacer sleeve |
34 |
key |
|
Features
- Single-stage single-suction horizontal centrifugal pump mainly used as circulating pump in the absortion tower of the wet FGD(Flue Gas Desulphurization) devices.
- It is suitable for low PH condition, especially for flue gas. It can also be used for low-sour condition and desulfurization installation.
- The wearing parts adopted with CFD(Computational Fluid Dynamics) resulting design reliability and high efficiency
- The position of the impeller can be changed by adjusting the bearing assembly.
- The pump is back dismantled so that the users needn't dismantle the pipe connection when maintaining or repairing.
Application
In metallurgical, mining, and coal industrial sectors, YYTL-series desulfurization pumps can be used to transfer corrosive liquid containing small solid particles and can also be used for municipal sewage and river dredge.

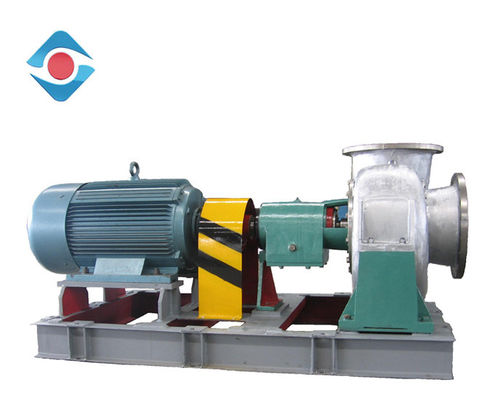

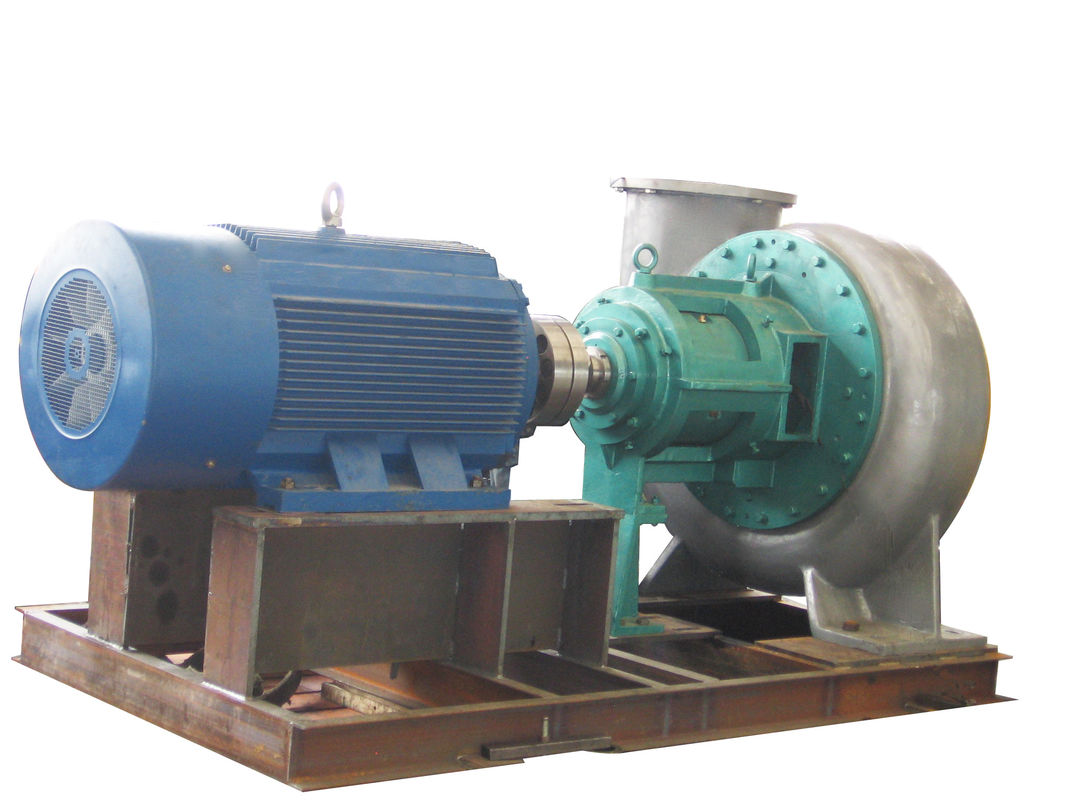

Product Picture
