Product Details:
Payment & Shipping Terms:
|
| Theory: | Centrifugal Pump | Max Flow: | 1000m3/h |
|---|---|---|---|
| Head: | 15-120m | Liquid: | Acid And Alkali |
| Color: | Customized | OEM: | Welcome |
| High Light: | horizontal split case centrifugal pump,industrial centrifugal pumps |
||

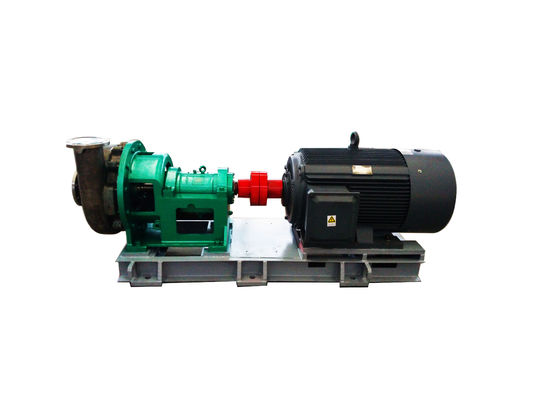

Single Stage Horizontal Centrifugal Pump Radial Sectional Section OEM Welcome
Technical Data
| Capacity: | 8 ~ 800 m³/h |
| Head: | 10 ~ 90 m |
| Maximal Efficiency: | 70% |
| Diameter: | 200mm~470mm |
| NPSH: | 1.4m~4.5m |
| Allowable Max Motor Power: | 315 kw |
| Allowed Max Particle Size: | 20 mm |
| Seal Type: | Mechanical seal/ dynamic seal/ packing seal |
| Pump Weight: | up to 3000kg |
| RPM: | 1450 r/min |
| Material: | Metal (according to working conditions ) |
Advantages
Technical Parameter
|
model |
Clean Water Performance |
||||||
|
flow (m3/h) |
head (m) |
speed (r/min) |
maximum efficiency (%) |
NPSH (NPSHr) m |
pump head weight KG |
shaft component |
|
|
40WD-250 |
8-20 |
15-28 |
1450 |
39 |
0.6 |
141 |
45 |
|
40WD-310 |
8-40 |
23-42 |
1450 |
45 |
1 |
257 |
55 |
|
40WD-350 |
8-45 |
35-54 |
1450 |
37 |
1 |
271 |
55 |
|
50WD-250 |
10-30 |
15-28 |
1450 |
40 |
0.7 |
146 |
45 |
|
50WD-310 |
15-60 |
25-42 |
1450 |
45 |
1.1 |
262 |
55 |
|
50WD-350 |
15-70 |
35-54 |
1450 |
50 |
1.1 |
286 |
55 |
|
50WD-400 |
20-75 |
50-75 |
1450 |
45 |
1.1 |
483 |
70 |
|
65WD-250 |
30-70 |
15-28 |
1450 |
48 |
1.1 |
149 |
45 |
|
65WD-310 |
30-90 |
25-40 |
1450 |
57 |
1.4 |
274 |
55 |
|
65WD-350 |
40-100 |
35-54 |
1450 |
59 |
1.5 |
280 |
55 |
|
65WD-400 |
50-120 |
45-75 |
1450 |
55 |
1.7 |
495 |
70 |
|
65WD-450 |
50-120 |
70-95 |
1450 |
52 |
1.7 |
524 |
70 |
|
80WD-250 |
70-100 |
15-25 |
1450 |
61 |
1.5 |
153 |
45 |
|
80WD-310 |
70-120 |
25-40 |
1450 |
62 |
1.7 |
288 |
55 |
|
80WD-350 |
70-160 |
35-52 |
1450 |
65 |
2.0 |
295 |
55 |
|
80WD-400 |
70-160 |
50-75 |
1450 |
62 |
2.0 |
500 |
70 |
|
80WD-450 |
70-160 |
70-95 |
1450 |
60 |
2.0 |
539 |
70 |
|
100WD-310 |
100-150 |
20-38 |
1450 |
65 |
1.9 |
293 |
55 |
|
100WD-350 |
100-220 |
35-50 |
1450 |
65 |
2.5 |
299 |
55 |
|
100WD-400 |
100-220 |
40-72 |
1450 |
65 |
2.5 |
529 |
70 |
|
125WD-310 |
120-260 |
18-36 |
1450 |
67 |
2.8 |
304 |
55 |
|
125WD-350 |
120-300 |
35-50 |
1450 |
68 |
3.2 |
307 |
55 |
|
125WD-400 |
140-350 |
45-70 |
1450 |
70 |
3.4 |
559 |
70 |
|
125WD-450 |
150-360 |
65-90 |
1450 |
67 |
3.6 |
741 |
80 |
|
150WD-310 |
200-400 |
18-35 |
1450 |
72 |
3.8 |
332 |
55 |
|
150WD-350 |
200-450 |
15-48 |
1450 |
75 |
4.2 |
333 |
55 |
|
150WD-400 |
200-450 |
40-65 |
1450 |
73 |
4.2 |
597 |
70 |
|
150WD-450 |
200-500 |
60-80 |
1450 |
67 |
4.5 |
753 |
80 |
|
200WD-350 |
300-600 |
28-47 |
1450 |
79 |
5 |
583 |
70 |
|
200WD-430 |
300-650 |
50-65 |
1450 |
75 |
5.2 |
765 |
80 |
|
250WD-350 |
400-900 |
26-45 |
1450 |
79 |
6.5 |
850 |
80 |
|
250WD-430 |
400-900 |
50-61 |
1450 |
75 |
6.5 |
910 |
90 |
Installation Dimension
Usage Fields
Widely applied to many fields or processes like chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery strong corrosive media of flammable, explosive, strong acid and alkali, organic solvents and other expensive liquids, etc.
Product Picture
Why Choose Us
Yongyi’s Vision: Try our best to contribute to pump industry and the world
Quality Awareness: We persevere in high quality and keeping improving
Service Concept: We do not only provide products of high quality, but also high quality service
Core Value: Maximize the value of products
