| Theory: | Centrifugal Pump | Max Flow: | 1000m3/h |
|---|---|---|---|
| Max Head: | 120m | Pressure: | 1.6MPa |
| Temperature: | -50-130℃ | Color: | Customized |
| Standard Or Nonstandard: | Standard | Name: | High Efficiency Centrifugal Single Stage Horizontal Axially Split Casting Chemical Pump |
| Structure: | Single-stage Pump | Frequency: | 50hz Or 60hz Are All Available |
| High Light: | horizontal high pressure centrifugal pump,industrial centrifugal pumps |
||
Stainless Steel Corrosion-resistant Horizontal Acid-proof Alkali Industrial Centrifugal Pumps
Main Feature
1) simple pump structure, simple installation and convenient maintenance.
2) 100% copper coil is adopted for the motor to ensure the service life.
3) wide range of application, which can be widely used in living, industrial, chemical and other fields.
4) the explosion-proof motor can be customized to protect your safety.
Performance Data
| Capacity: | 8 ~ 800 m³/h |
| Head: | 10 ~ 90 m |
| Maximal Efficiency: | 70% |
| Diameter: | 200mm~470mm |
| NPSH: | 1.4m~4.5m |
| Allowable Max Motor Power: | 315 kw |
| Allowed Max Particle Size: | 20 mm |
| Seal Type: | Mechanical seal/ dynamic seal/ packing seal |
| Pump Weight: | up to 3000kg |
| RPM: | 1450 r/min |
| Material: | Metal (according to working conditions ) |
Structure
| *1 | Locking screw | *8 | Vice impeller chamber | 15 | Front bearing cap | 22 | Oil pan | *29 | Sleeve |
| 2 | Gasket | 9 | O-ring | *16 | Front bearing | 23 | Adjustment nut | 30 | Water seal ring |
| *3 | Impeller nut | *10 | Vice impeller | 17 | Bearing body | 24 | Adjustment screw | 31 | Filler |
| 4 | O-ring | *11 | Packing chamber | 18 | Bearing bracket | 25 | Bearing body bracket | 32 | O-ring |
| *5 | Impeller | 12 | O-ring | *19 | Rear bearing | *26 | axis | *33 | keys |
| *6 | Pump body | 13 | Rinse water nozzle | 20 | Rear bearing cover | 27 | Shield cover | ||
| 7 | O-ring | 14 | Water retaining plate | 21 | Key | 28 | Packing gland |
Structure Description
Bearing body bracket
WD pump bearing body bracket is cast iron (HT200, HT250) frame structure with sufficient rigidity and certain shock absorption, its role is to support the pump body and bearing body.
Bearing body
The bearing body equipped with rolling bearings for supporting the radial and axial forces of the pump shaft. The WD pump is equipped with two single row angular contact ball bearings on the coupling side to withstand axial and radial forces. A single row cylindrical roller bearing is mounted on the pump side to withstand radial forces. A 316L water retaining plate is placed at the front end of the front bearing gland to prevent media or other liquid from entering the front bearing.

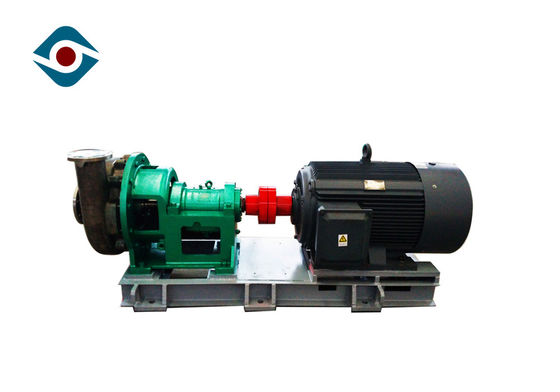

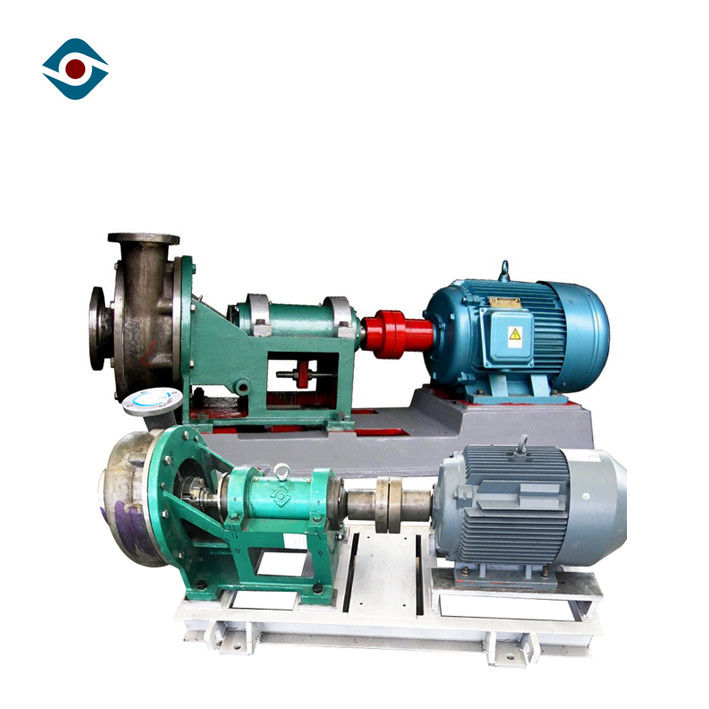

Product Picture
Application of Fields
|
Daily Chemicals |
Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmestics etc. |
|
Pharmacy |
Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc. |
|
Chemical Industry |
Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc. |
|
Other Industry |
Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc. |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
Contact Person: Cecile
Tel: 0086-19180408652
