Stainless Steel Vertical Centrifugal Pump , Split Case Centrifugal Pump for Acidic Slurry

China Stainless Steel Vertical Centrifugal Pump , Split Case Centrifugal Pump for Acidic Slurry supplier
Stainless Steel Vertical Centrifugal Pump , Split Case Centrifugal Pump for Acidic Slurry supplier Stainless Steel Vertical Centrifugal Pump , Split Case Centrifugal Pump for Acidic Slurry supplier

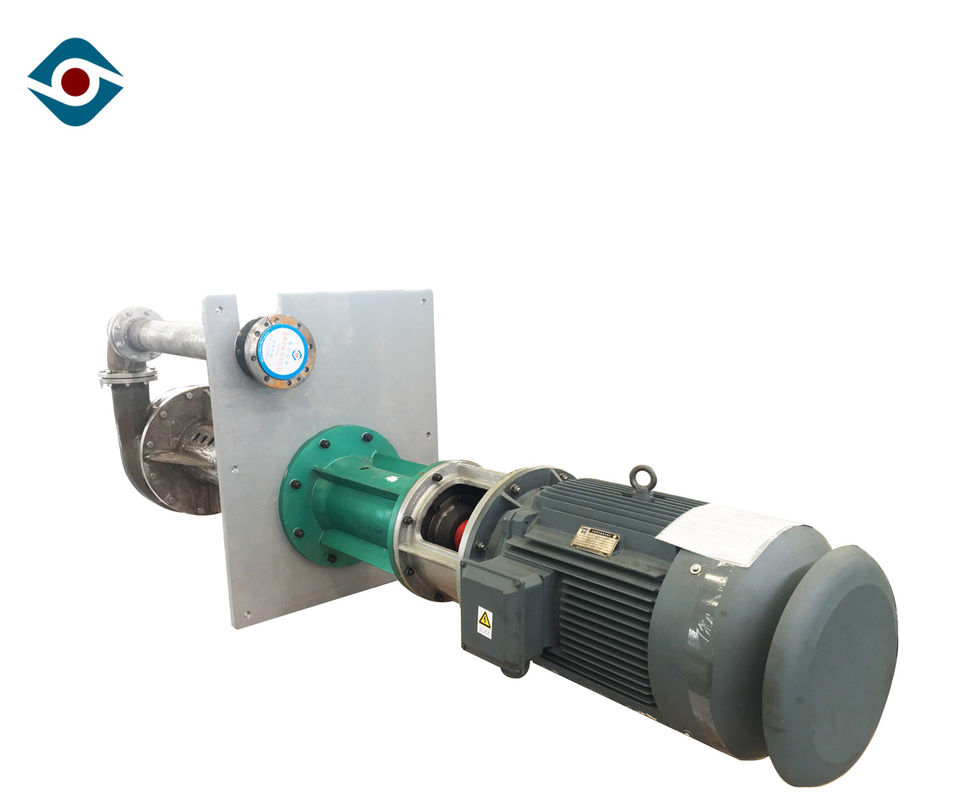

Large Image :  Stainless Steel Vertical Centrifugal Pump , Split Case Centrifugal Pump for Acidic Slurry

Product Details:

Place of Origin: Sichuan, China
Brand Name: Chengdu Yongyi
Certification: ISO9001
Model Number: WDL

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 500-5000/set
Packaging Details: free fumigation export wooden box packaging
Delivery Time: 25 working days after receiveing advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Theory: Centrifugal Pump Max Flow: 450m3/h
Max Head: 120m Voltage: 3 Phase 380V 50HZ
Warranty: 1 Year Flange: Customized
Pressure: High Pressure
High Light:

vertical submerged centrifugal pump

,

vertical cantilever pumps

High Performance Stainless Steel Vertical Centrifugal Pump Vertical Split Case Centrifugal Pump for Acidic Slurry



Introduction

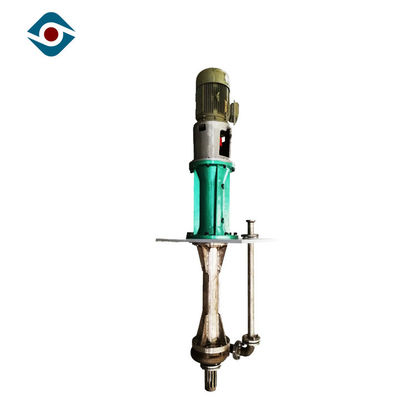

WDL-series pump is anti-abrasive and anti-corrosive vertical submerged centrifugal pump, which is designed according to multiphase flow theory and practice experience. WDL-series single stage single-suction pump is applicable to convey easy crystal medium containing solid particles, featured by excellent performance, advanced structure, good anti-cavitation properties, strong bearing, stable operation, easy maintenance and long service life.



Product Data



Model: WDL-series vertical centrifugal pump

Theory: centrifugal pump

Discharge Size: 40mm~200mm

Inlet Size: 50mm~250mm

Capacity: 8 ~ 800 m³/h

Head: 10 ~ 90 m

Maximal Efficiency: 70%

NPSH: 1.4m~4.5m

Allowable Max Motor Power: 315 kw

Allowed Max Particle Size: 20 mm

Seal Type: /

Pump Weight:up to 3000 kg

RPM: 1450 r/min

Impeller Type: closed/ half open



Features



  • The impeller is designed as a wide-flow impeller according to the principle of multi-phase flow, which is beneficial to the passage of solid medium without causing clogging. The back blade is used to balance part of the axial force and prevent the medium reflow. The support tube and the outlet tube are made of stainless steel welded structure, excellent in rigidity and corrosion resistance. The bearing is lubricated by grease.
  • WDL series anti-corrosion and wear-resistant horizontal centrifugal pump adopts modular structure design, more than 20 models, only 5 bearing bodies. The parts of the same series have great interchangeability. The inlet and outlet flanges of WDL pumps follow the standard of HG20592-2000PN16Mpa, and different flange standards can be implemented according to user requirements.
  • WDL series anti-corrosion and wear-resistant horizontal centrifugal pump adopts integral casting impeller. The pump body adopts wide flow channel design, which makes the pump adaptable to the working conditions and has strong pump passing ability. It is especially suitable for high solid content, high viscosity and easy crystallization medium. It has high efficiency and excellent anti-cavitation performance. The impeller has a back blade, which can reduce the axial thrust and prevent the solid particles entering the auxiliary impeller.



Structure



Stainless Steel Vertical Centrifugal Pump , Split Case Centrifugal Pump for Acidic Slurry

1 Impeller nut 8 Pump cover 15 base 22 framework oil seal 29 bearing box
2 strainer 9 shaft 16 flange 23 Upper shaft 30 O ring
3 Screw nut 10 Support pipe 17 flange 24 Motor base
4 key 11 Discharge pipe 18 Lower shaft 25 coupling
5 Pump body 12 spacer sleeve 19 oil retaining disk 26 key
6 impeller 13 framework oil seal 20 Shaft body 27 Upper shaft cover
7 elbow 14 Lower shaft cover 21 Bearing box cover 28 inner hexagon screw



Installation Dimension



Stainless Steel Vertical Centrifugal Pump , Split Case Centrifugal Pump for Acidic Slurry



Application



1, Food industrial: butter milk,chocolate,syrup,cheese,malt juice,beer,soda,water jelly,pudding,fruit juice beverages, tomato sauce,fruit mud,vegetables paste,jelly,flavouring agent,fruit filling,cooking oil and dilute cream, etc.
2, Daily use industrial:hair gel, toothpaste,detergent,shampoo,shoe polish,cosmetics,and,honey
etc.
3, Pharmaceutical industry: emulsifier, syrup,biological products and royal jelly,etc
4, Chemical industry:paint,dye,lubricate oil,emulsified asphalt,adhesive and glass glue,etc.
5, Building industry: corrosion waterproof coating,ceramic coating,paint coating and ceramic material,etc.
6, Other industry:textile industry,papermaking industry and biological chemical industry,etc.


Stainless Steel Vertical Centrifugal Pump , Split Case Centrifugal Pump for Acidic Slurry



Service



1. Quick Reply
Your inquiry related to our products or prices will be replied within 12 hours.
2.Pump Choice .
Please let us know the application, capacity and head ,we can help to select the suitable pump
3.Technical Support
We have a group of high quality technicians with rich experience who can solve everything during the whole process.
4.Guarantee Quality.
All the products have proved by ISO 9001:2015, CE, SGS. And also will be inspected strictly before delivery. For Comon parts(except wet end parts,) waranty time: 1 years
5.Perfect after -sales
We will be responsible for the whole life period
6.OEM Order
Many material are available ,like High chrome, rubber , stainless steel and etc.Steely alloy.
