Product Details:
Payment & Shipping Terms:
|
| Theory: | Centrifugal Slurry Pump | Min Flow: | 4 M³/h |
|---|---|---|---|
| Max Flow: | 3000m³/h | Min Head: | 10m |
| Max Head: | 130m | Color: | Customer Specifications |
| Rotate Speed: | 1450~290 | Fuel: | Motor |
| High Light: | industrial sludge pump,centrifugal mud pump |
||

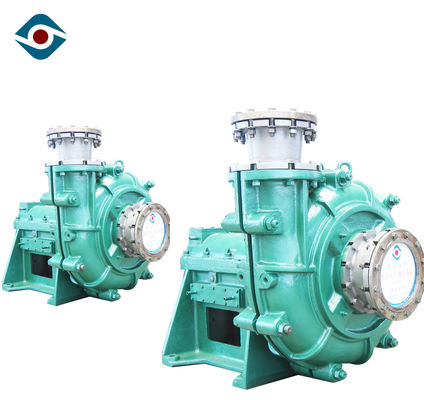

Water Conservancy Centrifugal centrifugal Mud Pump Slurry Pump With PTFE / Rubber Lined Inside
Slurry Pumps Work Principle
The pump is driven by electric motor. the motor rotates, the pump shaft rotates through a V-belt drive. The rotational kinetic energy converts into the hydrodynamic energy of the fluid flow, centrifugal Slurry Pumps motivate fluid flow along pipelines. The fluid enters axially into the pump impeller, which by its rotation acts tangentially and radially on the fluid. The fluid is speed up by gaining energy from the impeller, flowing radially outward into the casing. Being pressurized, it then exits the volute.
Specification Data
Discharge Size:20mm~350mm
NPSH:0m~3m
Inlet Size:32mm~400mm
Allowed Max Particle Size:20 mm
Capacity:4 ~ 3000 m³/h
Seal Type:step-down dynamic seal
Head:10 ~ 130 m
Pump Weight:up to 3000kg
Maximal Efficiency:70%
RPM:1450 r/min
Details
 |
Volute casing
|
 |
Impeller
• Various impeller designs to suit any application • Corrosion resistance and wear resistance |
 |
Bearing assembly
• Overhang on shaft design – assists with shaft deflection as well as vibration • Safe and easy to maintain |
Features
1) Widely application
2) Long bearing life
3) Wear resistant wet parts
4) Wear-resistant metal liners or rubber liners
5) Easy adjustment of impeller
6) Centrifugal seal, mechanical seal and packing seal
Application
This pump can be used to transport sulfuric acid, nitro-hydrochloric acid, strong oxidative and strong corrosive media, it is one of the most advanced corrosion- proof equipments at present.
Production Process
.
