Product Details:
Payment & Shipping Terms:
|
| Max Flow: | 450m3/h | Max Head: | 120m |
|---|---|---|---|
| Speed: | 1450rpm-2900rpm | Warranty: | 1 Year |
| Structure: | Single-stage Pump | Type: | Blade Pump |
| Impeller: | Closed | KW: | Vertical Centrifugal Pump |
| Highlight: | vertical submerged centrifugal pump,vertical chemical pump |
||

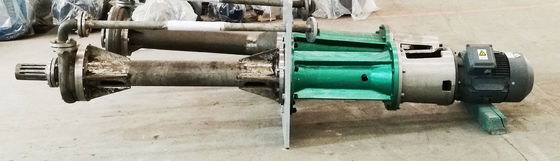

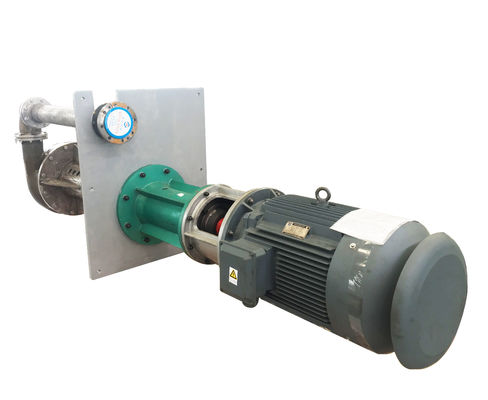

China Strong Acid and Alkali Resistant Vertical Centrifugal Pump Vertical Pump Motor
Product Description
WDL-series pump is anti-abrasive and anti-corrosive vertical submerged centrifugal pump, which is designed according to multiphase flow theory and practice experience. WDL-series single stage single-suction pump is applicable to convey easy crystal medium containing solid particles, featured by excellent performance, advanced structure, good anti-cavitation properties, strong bearing, stable operation, easy maintenance and long service life.
Parameter Data
 |
Model: WDL-series vertical centrifugal pump |
| Discharge Size: 40mm~200mm | |
| Inlet Size: 50mm~250mm | |
| Capacity: 8 ~ 800 m³/h | |
| Head: 10 ~ 90 m | |
| Maximal Efficiency: 70% | |
| NPSH: 1.4m~4.5m | |
| Allowable Max Motor Power: 315 kw | |
| Impeller | Allowed Max Particle Size: 20 mm |
| Vanes: 5/6 | Seal Type: / |
| Type: closed/ half open | Pump Weight:up to 3000 kg |
| Material:Metal (according to working conditions ) | RPM: 1450 r/min |
Structure
| 1 | Impeller nut | 8 | Pump cover | 15 | base | 22 | framework oil seal | 29 | bearing box |
| 2 | strainer | 9 | shaft | 16 | flange | 23 | Upper shaft | 30 | O ring |
| 3 | Screw nut | 10 | Support pipe | 17 | flange | 24 | Motor base | ||
| 4 | key | 11 | Discharge pipe | 18 | Lower shaft | 25 | coupling | ||
| 5 | Pump body | 12 | spacer sleeve | 19 | oil retaining disk | 26 | key | ||
| 6 | impeller | 13 | framework oil seal | 20 | Shaft body | 27 | Upper shaft cover | ||
| 7 | elbow | 14 | Lower shaft cover | 21 | Bearing box cover | 28 | inner hexagon screw |
Application
In the fields of chemical industry, metallurgy, power industry, paper making industry, food industry, pharmaceutical industry and synthetic fibre industry, WDL-series pumps are applicable to convey corrosive and abrasive liquid (solid content is no more than 40% ).
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
