Product Details:
Payment & Shipping Terms:
|
| Flow Rate: | 1000m3/h | Differential Head: | Up To 120m |
|---|---|---|---|
| Keywords: | Horizontal Industrial Pump | Package: | Free Fumigation Export Wooden Box |
| Max. Temperature: | 120 | Alignment: | Horizontal |
| High Light: | chemical centrifugal pump,electric chemical pump |
||

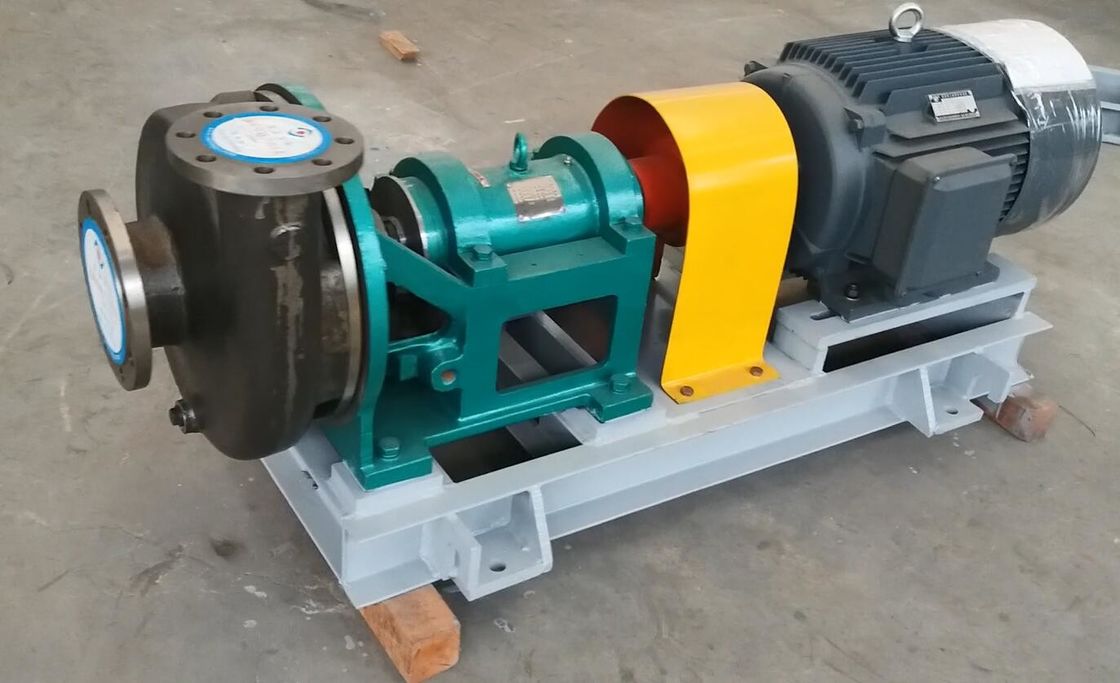

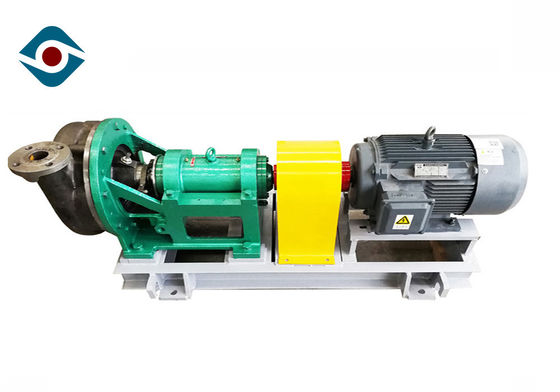

Abrasive Resistant Industrial Chemical Pumps with Mechanical Seal or Packing Seal
Brief Introduction
Nearly every catagory of process pump offered by Yongyi have models resistant to acids, akaline solutions, and solvents. Because of our wide product range and expertise in the field of fluid transfer, we are able to offer chemical pumps to cope with the most corrosive of liquids and those with high and varying viscousities.
Some of the most common corrosive liquids are: caustic solutions, Ferric Chloride, Phosphoric Acid, Sulphuric Acid, Hydrochloric Acid, CIP fluids, corrosive dyes, radioactive fluids, Silver Nitrate.
Features
• Excellent performance, Reliable, High efficiency and low operating costs.
• Suitable for the most demanding industrial applications.
• Quick and easy installation, safe operation, easy maintenance and service.
• Modular design minimize the spare parts inventory cost.
• Extra heavy-duty shaft for low shaft deflection and long life of seal and bearings.
Usage
1). Food and beverage: dairy, chocolate, syrup, cream, cereal mash, beer and latex.
2). Fruit concentration: tomato paste, pudding, juice, jam and jelly.
3). Paste products: fats, grease and etc..
4). Cosmetic: face cosmetic, abluent, fixature, spice and so on.
5). Medicine: extract, emulsion and pill plasm.
6). Chemical industry: dyes, grease, dissolvant, resin and polymer.
Technical Data
|
Capacity: |
8 ~ 800 m³/h |
|
Head: |
10 ~ 90 m |
|
Maximal Efficiency: |
70% |
|
Diameter: |
200mm~470mm |
|
NPSH: |
1.4m~4.5m |
|
Allowed Max Particle Size: |
20 mm |
|
Seal Type: |
Mechanical seal/ dynamic seal/ packing seal |
|
RPM: |
1450 r/min |
Structure
| *1 | Locking screw | *8 | Vice impeller chamber | 15 | Front bearing cap | 22 | Oil pan | *29 | Sleeve |
| 2 | Gasket | 9 | O-ring | *16 | Front bearing | 23 | Adjustment nut | 30 | Water seal ring |
| *3 | Impeller nut | *10 | Vice impeller | 17 | Bearing body | 24 | Adjustment screw | 31 | Filler |
| 4 | O-ring | *11 | Packing chamber | 18 | Bearing bracket | 25 | Bearing body bracket | 32 | O-ring |
| *5 | Impeller | 12 | O-ring | *19 | Rear bearing | *26 | axis | *33 | keys |
| *6 | Pump body | 13 | Rinse water nozzle | 20 | Rear bearing cover | 27 | Shield cover | ||
| 7 | O-ring | 14 | Water retaining plate | 21 | Key | 28 | Packing gland |
