Chemical Corrosion Resistant Pumps , Phosphoric Acid Pump High Efficiency

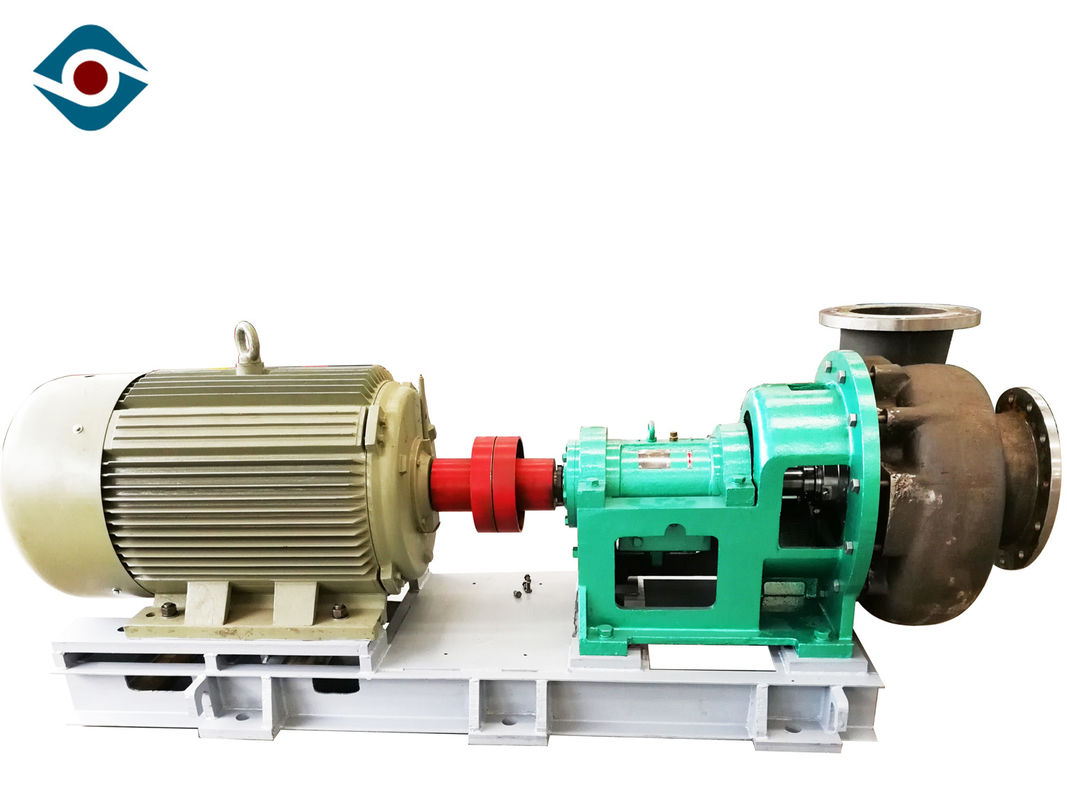

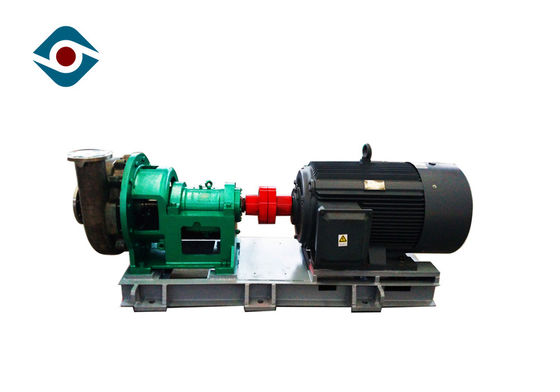

Large Image : Chemical Corrosion Resistant Pumps , Phosphoric Acid Pump High Efficiency

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	Chengdu Yongyi
Certification:	ISO9001
Model Number:	WD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 500-5000/set
Packaging Details:	free fumigation export wooden box packaging
Delivery Time:	25 working days after receiveing advance payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Max Flow:	1000m3/h	Max Head:	120m
Liquid:	Acid/Alkali Slurry	Keywords:	Corrosion Resistant Pump
Type:	Chemical Treatment	Voltage:	220-440V
High Light:	high pressure chemical pump , chemical centrifugal pump

Chemical Corrosion Resistant Pumps , Phosphoric Acid Pump High Efficiency

Summarize:

Horizontal corrosion-resistant centrifugal pumps
Spacious impeller flow channel
Superior hydraulic performance
Back blade
Variable types of shaft seal

Pump Feature

Good corrosion resistance;
Simple structure and convenient maintain;
High operation efficiency
Energy conservation and environmental protection.

Application

a. High efficiency centrifugal chemical pump is widely applicable for chemical industry.

b. Widely applicable for power station.

c. Widely applicable for paper making.

d. Widely applicable for pharmaceuticals.

e. Widely applicable for refine sugar.

f. Widely applicable for environmental protection.

Chemical Corrosion Resistant Pumps , Phosphoric Acid Pump High Efficiency

Technical Parameter

model	Clean Water Performance
model	flow (m3/h)	head (m)	speed (r/min)	maximum efficiency (%)	NPSH (NPSHr) m	pump head weight KG	shaft component
40WD-250	8-20	15-28	1450	39	0.6	141	45
40WD-310	8-40	23-42	1450	45	1	257	55
40WD-350	8-45	35-54	1450	37	1	271	55
50WD-250	10-30	15-28	1450	40	0.7	146	45
50WD-310	15-60	25-42	1450	45	1.1	262	55
50WD-350	15-70	35-54	1450	50	1.1	286	55
50WD-400	20-75	50-75	1450	45	1.1	483	70
65WD-250	30-70	15-28	1450	48	1.1	149	45
65WD-310	30-90	25-40	1450	57	1.4	274	55
65WD-350	40-100	35-54	1450	59	1.5	280	55
65WD-400	50-120	45-75	1450	55	1.7	495	70
65WD-450	50-120	70-95	1450	52	1.7	524	70
80WD-250	70-100	15-25	1450	61	1.5	153	45
80WD-310	70-120	25-40	1450	62	1.7	288	55
80WD-350	70-160	35-52	1450	65	2.0	295	55
80WD-400	70-160	50-75	1450	62	2.0	500	70
80WD-450	70-160	70-95	1450	60	2.0	539	70
100WD-310	100-150	20-38	1450	65	1.9	293	55
100WD-350	100-220	35-50	1450	65	2.5	299	55
100WD-400	100-220	40-72	1450	65	2.5	529	70
125WD-310	120-260	18-36	1450	67	2.8	304	55
125WD-350	120-300	35-50	1450	68	3.2	307	55
125WD-400	140-350	45-70	1450	70	3.4	559	70
125WD-450	150-360	65-90	1450	67	3.6	741	80
150WD-310	200-400	18-35	1450	72	3.8	332	55
150WD-350	200-450	15-48	1450	75	4.2	333	55
150WD-400	200-450	40-65	1450	73	4.2	597	70
150WD-450	200-500	60-80	1450	67	4.5	753	80
200WD-350	300-600	28-47	1450	79	5	583	70
200WD-430	300-650	50-65	1450	75	5.2	765	80
250WD-350	400-900	26-45	1450	79	6.5	850	80
250WD-430	400-900	50-61	1450	75	6.5	910	90
