Product Details:
Payment & Shipping Terms:
|
| Max Flow: | 6666LPM | Max Head: | 50m/165ft |
|---|---|---|---|
| Voltage: | 380V | Structure: | Single-stage |
| Color: | Customer Specifications | Phase: | Three Phase |
| Type: | Centrifugal | Feature: | High Flow |
| High Light: | corrosion resistant pumps,carbon fiber pump |
||

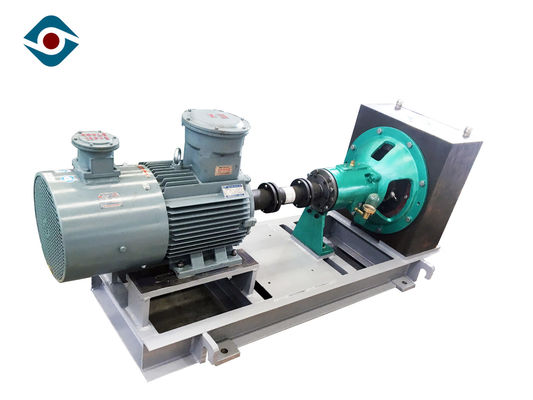

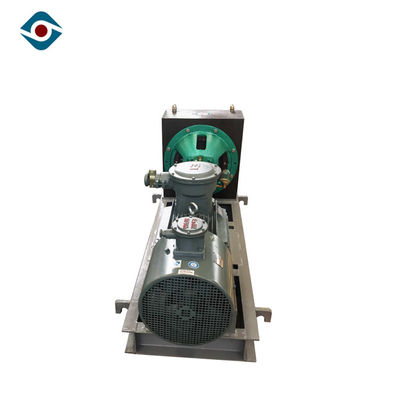

Long Warranty High Hardness Chemical Single Stage Pump with Energy Efficient
Material Characteristics
Compare to other normal corrosion-resistance material, new carbon fiber composition material has excellent resistance in corrosion and abrasion.
Performance Data
Discharge Size:40mm~125mm
Inlet Size:50mm~150mm
Capacity:30～400m³/h
Head:15～50m
Maximal Efficiency:65%
NPSH: 1.4m~3.5m
Allowed Max Particle Size:20 mm
Seal Type: mechanical seal/dynamic seal/packing seal
RPM:1450r/min
Technical Parameter
| Model |
Flow (m³/h) |
Head (m) |
Rotating Speed (r/min) |
Highest Efficiency (%) |
NPSHr m |
| 50DCS-250 | 30-50 | 15-28 | 1450 | 40 | 1.4 |
| 50DCS-310 | 30-60 | 25-38 | 1450 | 45 | 1.5 |
| 50DCS-350 | 30-60 | 35-50 | 1450 | 43 | 1.8 |
| 65DCS-250 | 50-80 | 15-28 | 1450 | 48 | 1.8 |
| 65DCS-310 | 50-100 | 25-38 | 1450 | 50 | 2.2 |
| 65DCS-350 | 50-100 | 35-50 | 1450 | 55 | 2.2 |
| 80DCS-250 | 70-140 | 15-25 | 1450 | 61 | 2.5 |
| 80DCS-310 | 70-140 | 25-38 | 1450 | 62 | 2.5 |
| 80DCS-350 | 70-160 | 35-50 | 1450 | 63 | 2.8 |
| 100DCS-310 | 100-220 | 20-35 | 1450 | 57 | 2.8 |
| 100DCS-350 | 100-220 | 35-48 | 1450 | 60 | 2.8 |
| 125DCS-310 | 120-250 | 18-33 | 1450 | 62 | 3 |
| 125DCS-350 | 120-290 | 35-48 | 1450 | 62 | 3 |
| 150DCS-310 | 200-400 | 18-33 | 1450 | 64 | 3.5 |
| 150DCS-350 | 200-500 | 25-45 | 1450 | 65 | 3.5 |
Impeller Types
FAQ
Q1. What is your product range?
Centrifugal pump, slurry pump, sewage pump, chemical pump, single stage pump, industry pump,paper pulp pump, mud pump, self-priming pump, etc.
Q2. Are you a manufacturer?
Yes, we have been in manufacturing and marketing industry centrifugal pump since 1993, with more than 20 years' experience.
Q3. What information should I let you know if I want to get a quotation?
Pump capacity, pump head, medium, medium temperature, motor voltage, pump material, quantity.
Q4. Do you inspect the finished product?
Yes, each batch of production and finished product will be quality checked strictly before delivering. The packing will be standard export plywood carton
