Product Details:
Payment & Shipping Terms:
|
| Material: | High Strength New Carbon Fiber Composite Material | Flow: | 30~400 M3/h |
|---|---|---|---|
| Head: | 10~70m | Voltage: | 220V/380V, 50Hz/60Hz |
| Warranty: | 12 Months | Brand: | Chengdu Yongyi |
| Standard Or Nonstandard: | OEM/Standard | Type: | Horizontal Centrifugal Pump |
| High Light: | corrosion resistant pumps,chemical resistant pump |
||
160KW Carbon Fiber Composite Material Industrial Chemical Pumps Caustic Corrosion Resistant Pump
Application
high-temperature, highly-corrosive and high-wear mediators which can’t be carried by metal pump and non-metal pump.
chemical industry, metallurgy, mining, electricity, coal, paper, energy saving and environmental protection industries and are preferred alternatives to advanced alloy metal pump and non-metal pump
Description
 |
Model: DCS-seriescarbon fiber composite material pump |
|
Discharge Size:40mm~125mm |
|
|
Inlet Size:50mm~150mm |
|
|
Capacity:30～400m³/h |
|
|
Head:15～50m |
|
|
Maximal Efficiency:65% |
|
|
NPSH: 1.4m~3.5m |
|
|
Allowable Max Motor Power:280 kw |
|
|
Impeller |
Allowed Max Particle Size:20 mm |
|
Vanes:5/6 |
Seal Type:mechanical seal/dynamic seal/packing seal |
|
Type:closed/ half open |
Pump Weight:up to 1500kg |
|
Material:Metal (according to working conditions ) |
RPM:1450r/min |
|
Diameter:200mm~470mm |
Material of Liner: Metal (according to working conditions ) |
Technical Parameter
|
Model |
Flow (m³/h) |
Head |
Rotating speed |
Highest efficiency |
NPSHr (m) |
|
50DCS-250 |
30-50 |
15-28 |
1450 |
40 |
1.4 |
|
50DCS-310 |
30-60 |
25-38 |
1450 |
45 |
1.5 |
|
50DCS-350 |
30-60 |
35-50 |
1450 |
43 |
1.8 |
|
65DCS-250 |
50-80 |
15-28 |
1450 |
48 |
1.8 |
|
65DCS-310 |
50-100 |
25-38 |
1450 |
50 |
2.2 |
|
65DCS-350 |
50-100 |
35-50 |
1450 |
55 |
2.2 |
|
80DCS-250 |
70-140 |
15-25 |
1450 |
61 |
2.5 |
|
80DCS-310 |
70-140 |
25-38 |
1450 |
62 |
2.5 |
|
80DCS-350 |
70-160 |
35-50 |
1450 |
63 |
2.8 |
|
100DCS-310 |
100-220 |
20-35 |
1450 |
57 |
2.8 |
|
100DCS-350 |
100-220 |
35-48 |
1450 |
60 |
2.8 |
|
125DCS-310 |
120-250 |
18-33 |
1450 |
62 |
3 |
|
125DCS-350 |
120-290 |
35-48 |
1450 |
62 |
3 |
|
150DCS-310 |
200-400 |
18-33 |
1450 |
64 |
3.5 |
|
150DCS-350 |
200-500 |
25-45 |
1450 |
65 |
3.5 |
Structure

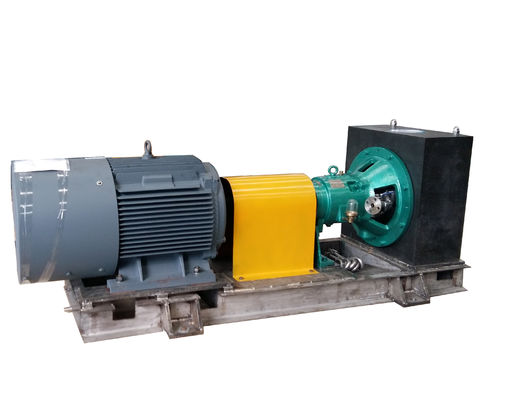

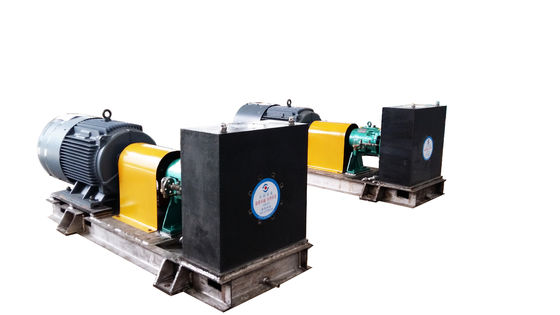

Product Picture
Service
*All of the enquiry will be replied within 8 working hours
*Professional pump producer, with design team.
*All of the goods are packed with standard export wooden case(non-fumigation)
*Fast delivery time
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
